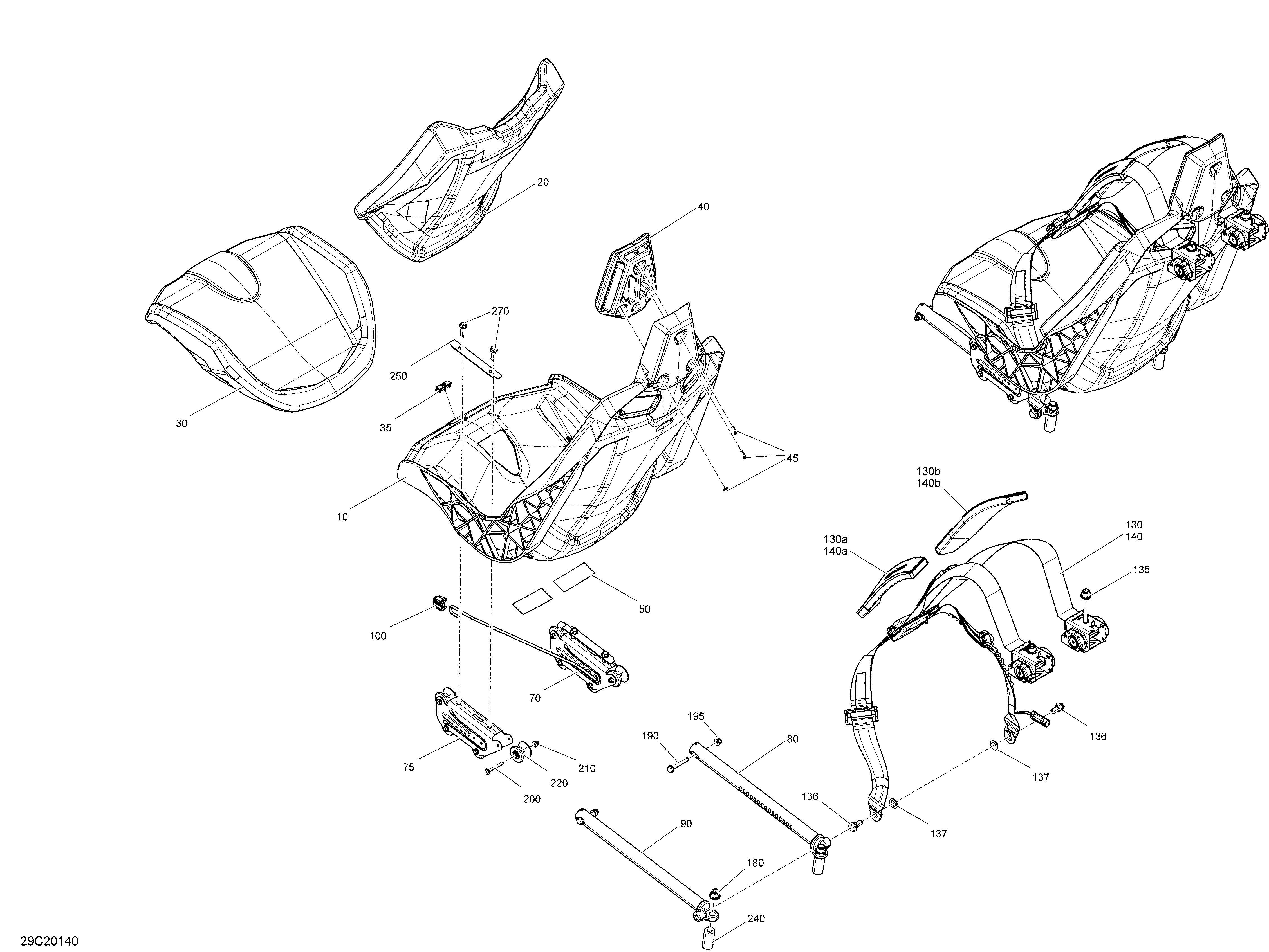

09- Seat - XRS для BRP 004 - Maverick Turbo R, Turbo RR - STD_XDS_XRS - North America - 2020
-
№АртикулНазвание
-
10708002065 LH, Kit Seat ShellLH, Kit Seat Shell
-
20708002676 Backrest. Model Dazzling BlueBackrest. Model Dazzling Blue
-
20708002676 Backrest. Model Timeless Black & Hood BlackBackrest. Model Timeless Black & Hood Black
-
20708002874 Backrest Ass'y. Model Hyper SilverBackrest Ass'y. Model Hyper Silver
-
20708002874 Backrest Ass'y. Model Timeless Black & Hyper Silver HoodBackrest Ass'y. Model Timeless Black & Hyper Silver Hood
-
30708002382 Cushion Ass'y. Model Hyper SilverCushion Ass'y. Model Hyper Silver
-
30708002382 Cushion Ass'y. Model Timeless Black & Hyper Silver HoodCushion Ass'y. Model Timeless Black & Hyper Silver Hood
-
30708002678 Seat Base Ass'y. Model Timeless Black & Hood BlackSeat Base Ass'y. Model Timeless Black & Hood Black
-
30708002678 Seat Base Ass'y. Model Dazzling BlueSeat Base Ass'y. Model Dazzling Blue
-
35708002670 StopperStopper
-
40708002131 HeadrestHeadrest
-
45250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
50708002535 Velcro TapeVelcro Tape
-
70703500997 TrolleyTrolley
-
75708002298 TrolleyTrolley
-
80708003061 Seat RailSeat Rail
-
90708003064 Seat RailSeat Rail
-
100708002655 HandleHandle
-
130708002918 Safety Belt 4 Points. Includes 130 to 130bSafety Belt 4 Points. Includes 130 to 130b
-
130a708002824 LH Shoulder PadLH Shoulder Pad
-
130b708002825 RH Shoulder PadRH Shoulder Pad
-
135233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
136708002504 Safety Belt screwSafety Belt screw
-
137708000891 Position WasherPosition Washer
-
140708002917 Safety Belt 4 Points. Includes 140 to 140bSafety Belt 4 Points. Includes 140 to 140b
-
140a708002824 LH Shoulder PadLH Shoulder Pad
-
140b708002825 RH Shoulder PadRH Shoulder Pad
-
180233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
190207685554 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
195233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
200207665054 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
210233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
220708002134 WheelWheel
-
240708002299 Rear BushingRear Bushing
-
250708002480 PlatePlate
-
270207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
