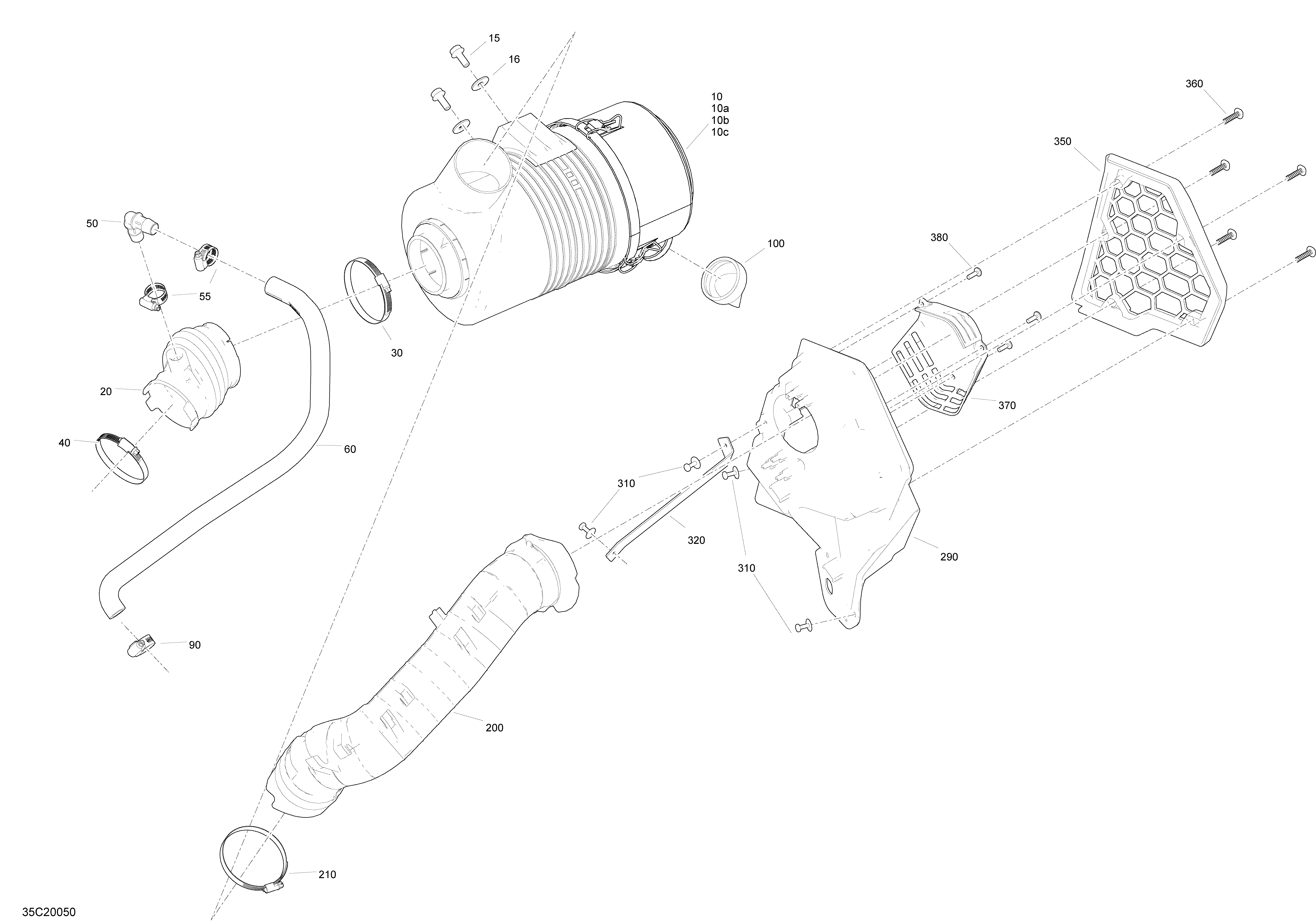

02- Air Intake для BRP 005 - Maverick Sport 1000R - XRC - North America - 2020
-
№АртикулНазвание
-
10707800720 Air Box. Includes 10 to 10cAir Box. Includes 10 to 10c
-
10a715900528 Silencer-Air Cover. not illustratedSilencer-Air Cover. not illustrated
-
10b707800844 Gasket Intake Silencer. not illustratedGasket Intake Silencer. not illustrated
-
10c715900422 Air Filter. not illustratedAir Filter. not illustrated
-
15207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
16234082410 Flat Washer 8 mmFlat Washer 8 mm
-
20707800754 Air Intake AdapterAir Intake Adapter
-
30293650096 Clamp NormaClamp Norma
-
40293650091 Norma ClampNorma Clamp
-
50293710155 Elbow Fitting 90Elbow Fitting 90
-
55293650173 Tridon Gear ClampTridon Gear Clamp
-
60707800755 Blow-By HoseBlow-By Hose
-
90293650173 Tridon Gear ClampTridon Gear Clamp
-
100715003114 Duck Bill ValveDuck Bill Valve
-
200707800756 Inlet HoseInlet Hose
-
210293650096 Clamp NormaClamp Norma
-
290707800865 Air Intake BoxAir Intake Box
-
310293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
320707800784 SupportSupport
-
350707800751 Air Intake GridAir Intake Grid
-
360250000980 Hex. Screw Pt K60 X 25Hex. Screw Pt K60 X 25
-
370707800762 BaffleBaffle
-
380250000720 Torx Screw K50 X 16Torx Screw K50 X 16
