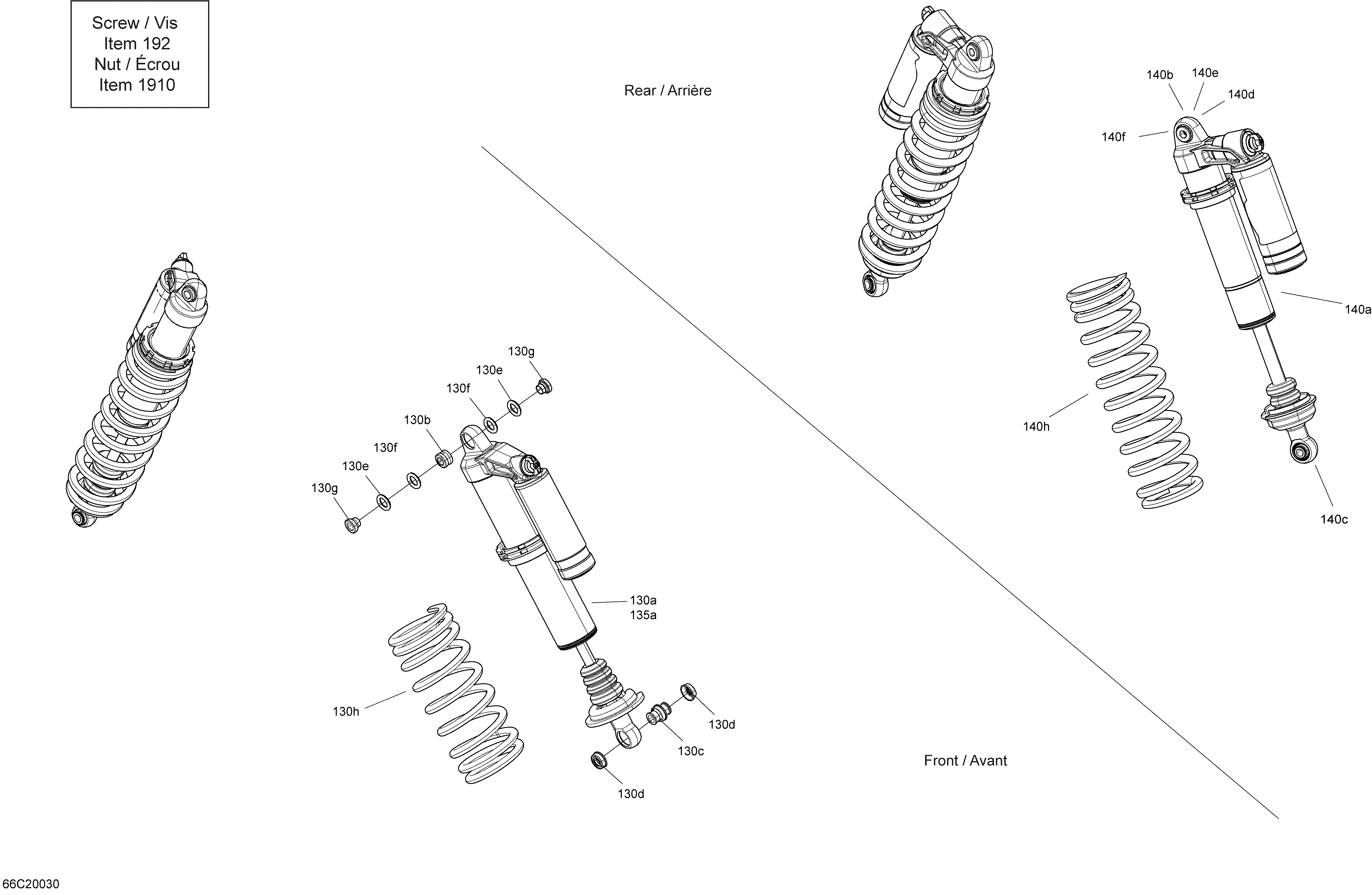

07- Shocks для BRP 005 - Maverick Sport 1000R - XRC - North America - 2020
-
№АртикулНазвание
-
130a706203352 LH Front Shock. Includes 130a to 130gLH Front Shock. Includes 130a to 130g
-
130b715900329 Spherical BearingSpherical Bearing
-
130c715900330 Spherical BearingSpherical Bearing
-
130d715900331 ProtectorProtector
-
130e715900268 O-Ring BushingO-Ring Bushing
-
130f715900252 Retaining RingRetaining Ring
-
130g715900267 Internal BushingInternal Bushing
-
130h706203926 Orange Crush, Front Compression SpringOrange Crush, Front Compression Spring
-
135a706203353 RH Front Shock. Includes 135a to 135gRH Front Shock. Includes 135a to 135g
-
140a706003181 Rear Shock. Includes 140a to 140fRear Shock. Includes 140a to 140f
-
140b715900337 Spherical BearingSpherical Bearing
-
140c715900482 BearingBearing
-
140d715900338 O-Ring BushingO-Ring Bushing
-
140e715900480 CirclipCirclip
-
140f715900481 ReducerReducer
-
140h706003741 Orange Crush, Rear Compression SpringOrange Crush, Rear Compression Spring
-
192250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
1910233221466 Elastic Flange Nut M12Elastic Flange Nut M12
