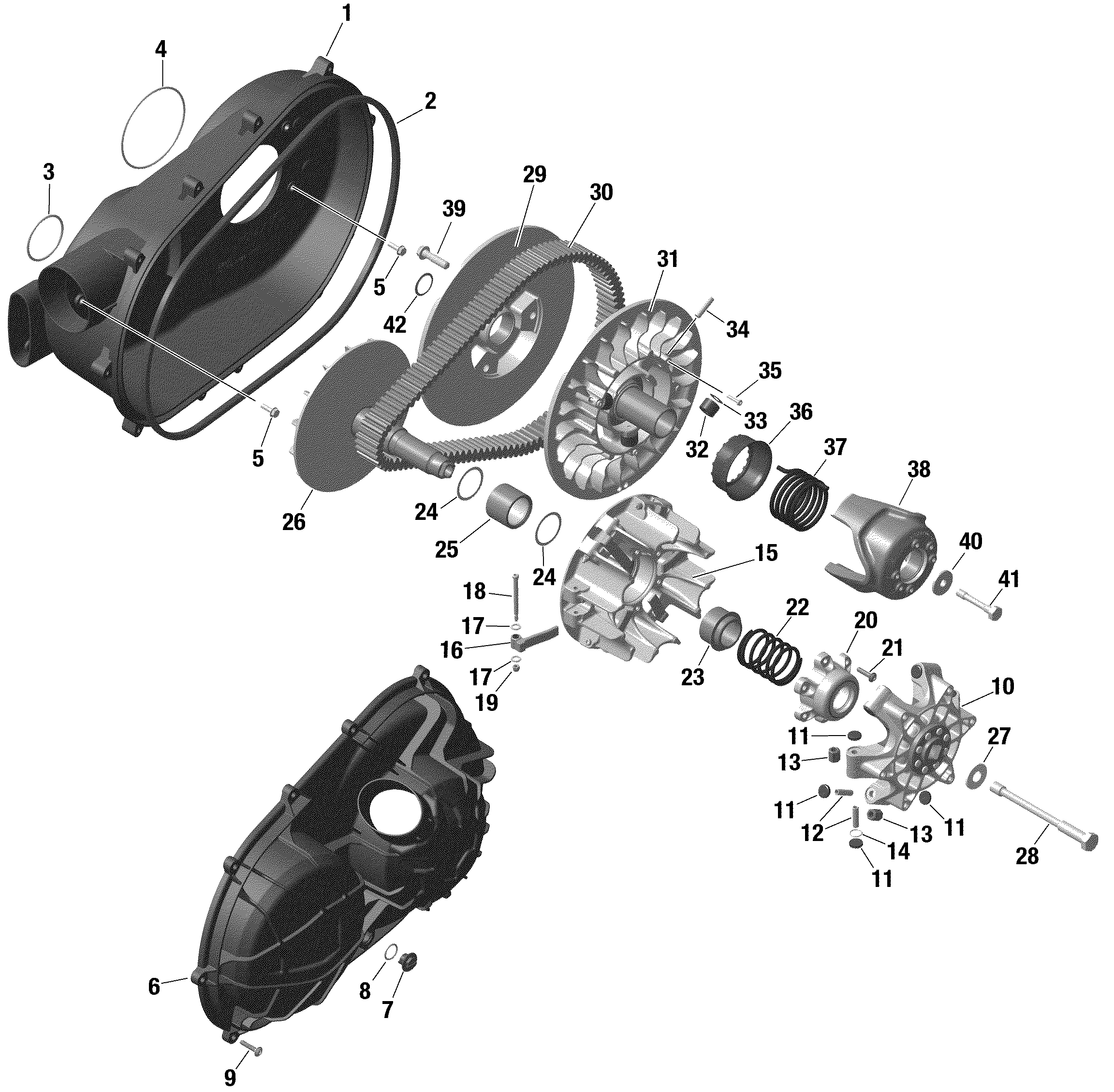

05- Transmission - 609-607-608 для BRP 005 - Maverick Sport 1000R - XRC - North America - 2020
-
№АртикулНазвание
-
1420212600 CVT Air GuideCVT Air Guide
-
2420450400 GasketGasket
-
3420430408 O-RingO-Ring
-
4420450431 O-RingO-Ring
-
5420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
6420212503 Variator CoverVariator Cover
-
7420441820 CapCap
-
8420250052 O-RingO-Ring
-
9420441575 Torx Screw 6X30Torx Screw 6X30
-
10420280727 Governor Cup Ass'yGovernor Cup Ass'y
-
11420281296 Slider Shoe SetSlider Shoe Set
-
12417223257 Roller AxleRoller Axle
-
13420229991 Roller ThrustRoller Thrust
-
14420230456 O-RingO-Ring
-
15420280608 Outer Half Ass'yOuter Half Ass'y
-
16420248663 Lever Set. Includes 16 to 19Lever Set. Includes 16 to 19
-
20420280616 Bearing CoverBearing Cover
-
21420841549 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
22420638119 Compression SpringCompression Spring
-
23420427211 Spring RetainerSpring Retainer
-
24420427220 WasherWasher
-
25420832351 Needle Roller Bearing With SleevesNeedle Roller Bearing With Sleeves
-
26420280597 Inner Half Ass'yInner Half Ass'y
-
27420245690 WasherWasher
-
28420841161 Hexagonal Screw M14X 165Hexagonal Screw M14X 165
-
29420280636 Sliding Pulley Ass'ySliding Pulley Ass'y
-
30417300383 Drive BeltDrive Belt
-
31420280626 Outer Half Pulley Ass'yOuter Half Pulley Ass'y
-
32417127016 RollerRoller
-
33250200009 Lock Washer 8 mmLock Washer 8 mm
-
34417127294 Pivot StudPivot Stud
-
35420841531 Torx Screw M4 X 20Torx Screw M4 X 20
-
36417127116 Swivel AbutmentSwivel Abutment
-
37417127039 Black SpringBlack Spring
-
38420280755 CamCam
-
39420841711 Torx Flange Screw M10 X 40Torx Flange Screw M10 X 40
-
40420427240 Collar WasherCollar Washer
-
41420441990 Hexagonal Screw M10X 61Hexagonal Screw M10X 61
