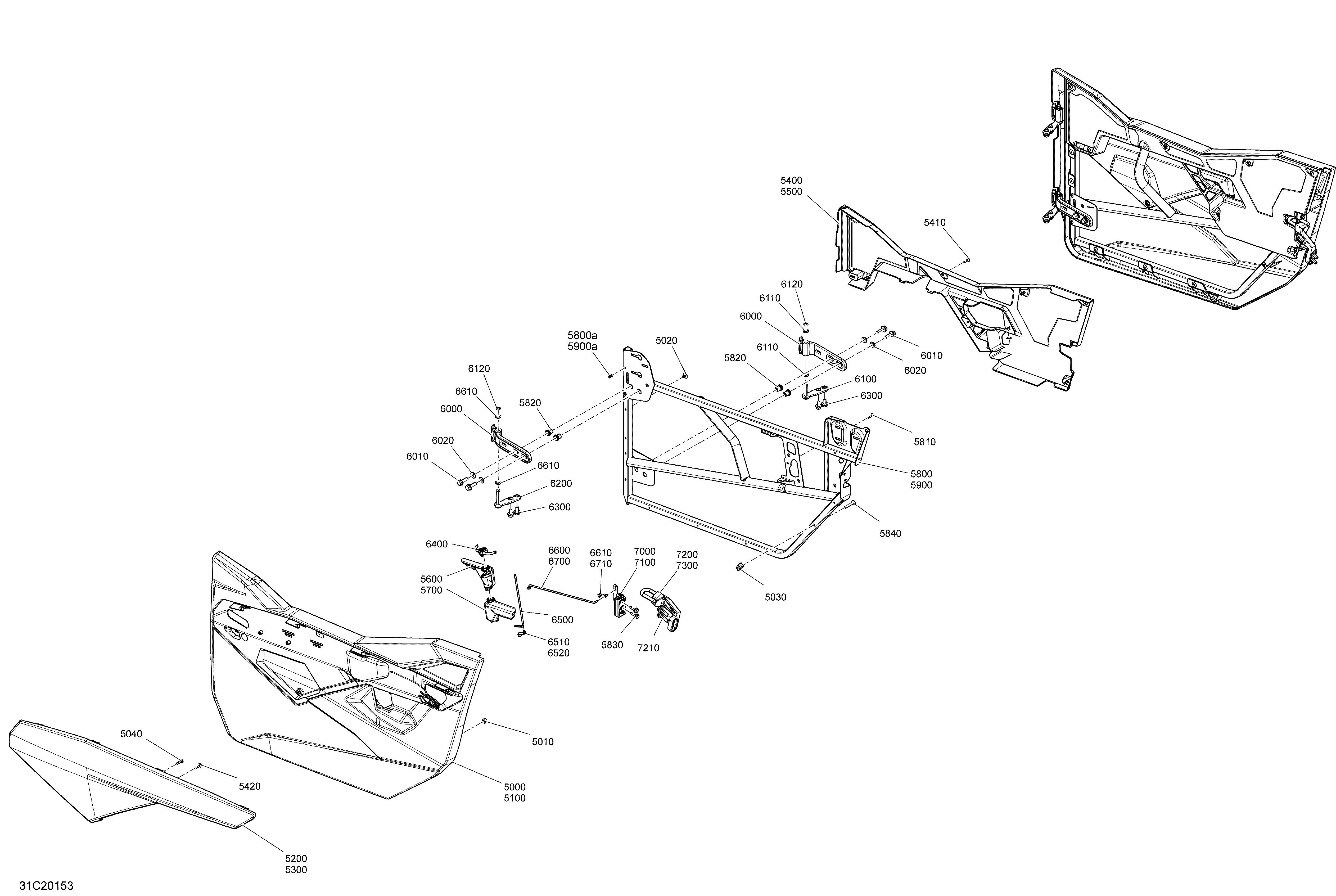

09- Body - Door Section - Timeless Black для BRP 002 - Maverick Trail 1000 - North America - 2020
-
№АртикулНазвание
-
5000705011479 LH Exterior Door PanelLH Exterior Door Panel
-
5010293830005 Rubber BumperRubber Bumper
-
5020293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
5030250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5040250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5100705011480 RH Exterior Door PanelRH Exterior Door Panel
-
5200705014297 Timeless Black, LH Front Door PanelTimeless Black, LH Front Door Panel
-
5300705014298 Timeless Black, RH Front Door PanelTimeless Black, RH Front Door Panel
-
5400715005003 LH Inner Door Panel AssyLH Inner Door Panel Assy
-
5410250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5420250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5500715005004 RH Inner Door Panel AssyRH Inner Door Panel Assy
-
5600705011585 LH Opening HandleLH Opening Handle
-
5700705011586 RH Opening HandleRH Opening Handle
-
5800705800303 LH Door Frame. Includes 5800 to 5800aLH Door Frame. Includes 5800 to 5800a
-
5800a390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
5810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5820293450307 Insert Half Hex Body M8 x 1.25Insert Half Hex Body M8 x 1.25
-
5830207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
5840250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
5900705800304 RH Door Frame. Includes 5900 to 5900aRH Door Frame. Includes 5900 to 5900a
-
5900a390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
6000705013228 HingeHinge
-
6010250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
6020503192494 WasherWasher
-
6100705011629 Lower Hinge AjustementLower Hinge Ajustement
-
6110234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
6120705601030 CirclipCirclip
-
6200705012506 Upper Hinge AjustementUpper Hinge Ajustement
-
6300250001033 Screw-Hex.Flanged DIN.6921 S.GripScrew-Hex.Flanged DIN.6921 S.Grip
-
6400705011630 Handle SpringHandle Spring
-
6500705206132 Handle AxleHandle Axle
-
6510708300202 RH Tie Rod ClipRH Tie Rod Clip
-
6520708300182 LH Tie Rod ClipLH Tie Rod Clip
-
6600705206133 LH Locking RodLH Locking Rod
-
6610708300202 RH Tie Rod ClipRH Tie Rod Clip
-
6700705206134 RH Locking RodRH Locking Rod
-
6710708300182 LH Tie Rod ClipLH Tie Rod Clip
-
7000705013095 LH LatchLH Latch
-
7100705013096 RH LatchRH Latch
-
7200705207027 LH Stricker SupportLH Stricker Support
-
7210207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
7300705207028 RH Stricker SupportRH Stricker Support
