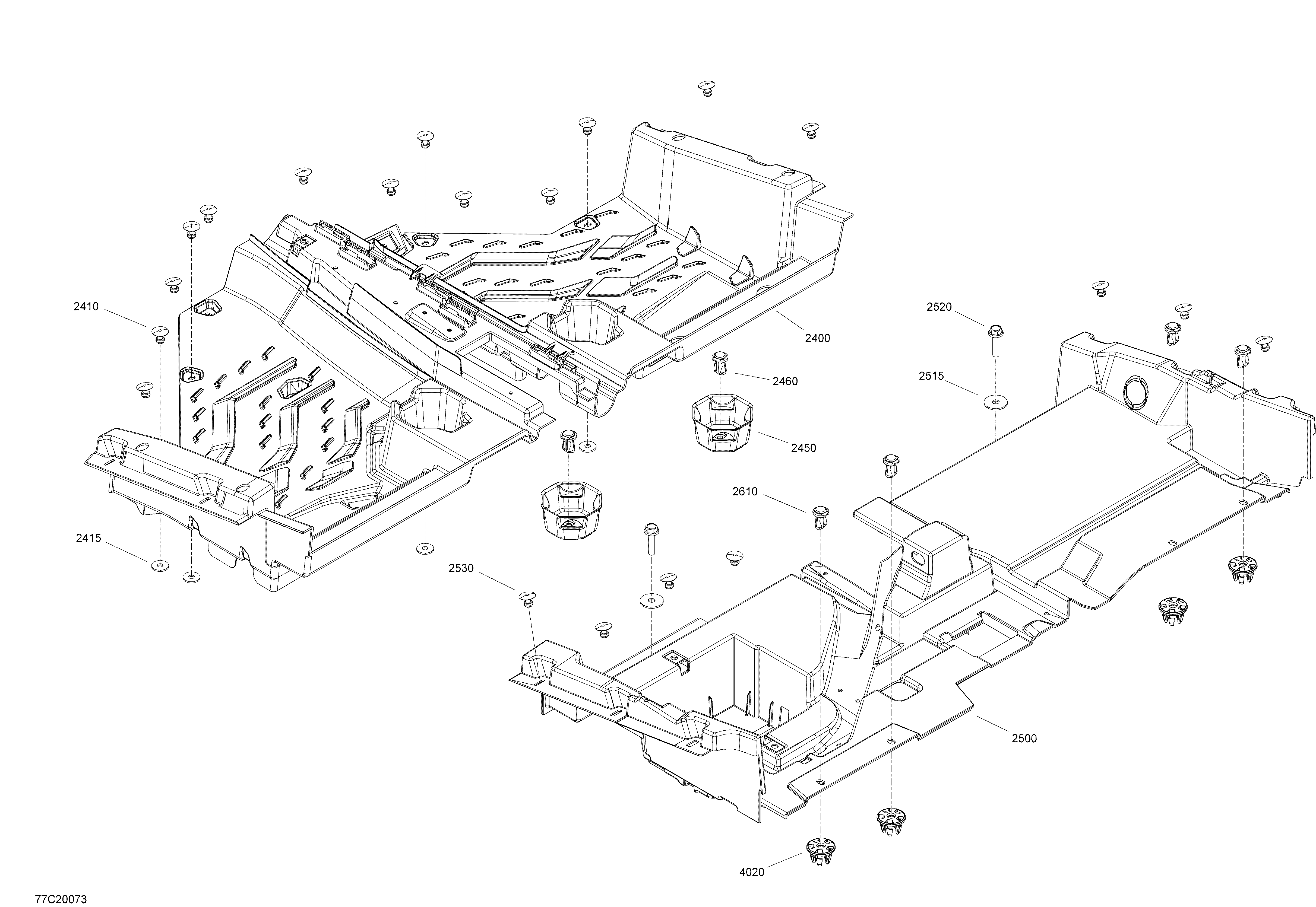

09- Cab Interior - Floor Section для BRP 002 - Maverick Trail 1000 - North America - 2020
-
№АртикулНазвание
-
2400707900533 Front FloorFront Floor
-
2410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2415250200025 Washer M5Washer M5
-
2450707900532 Cup HolderCup Holder
-
2460293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2500707900534 Rear FloorRear Floor
-
2515250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
2520207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2530293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2610293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4020707900133 InsertInsert
