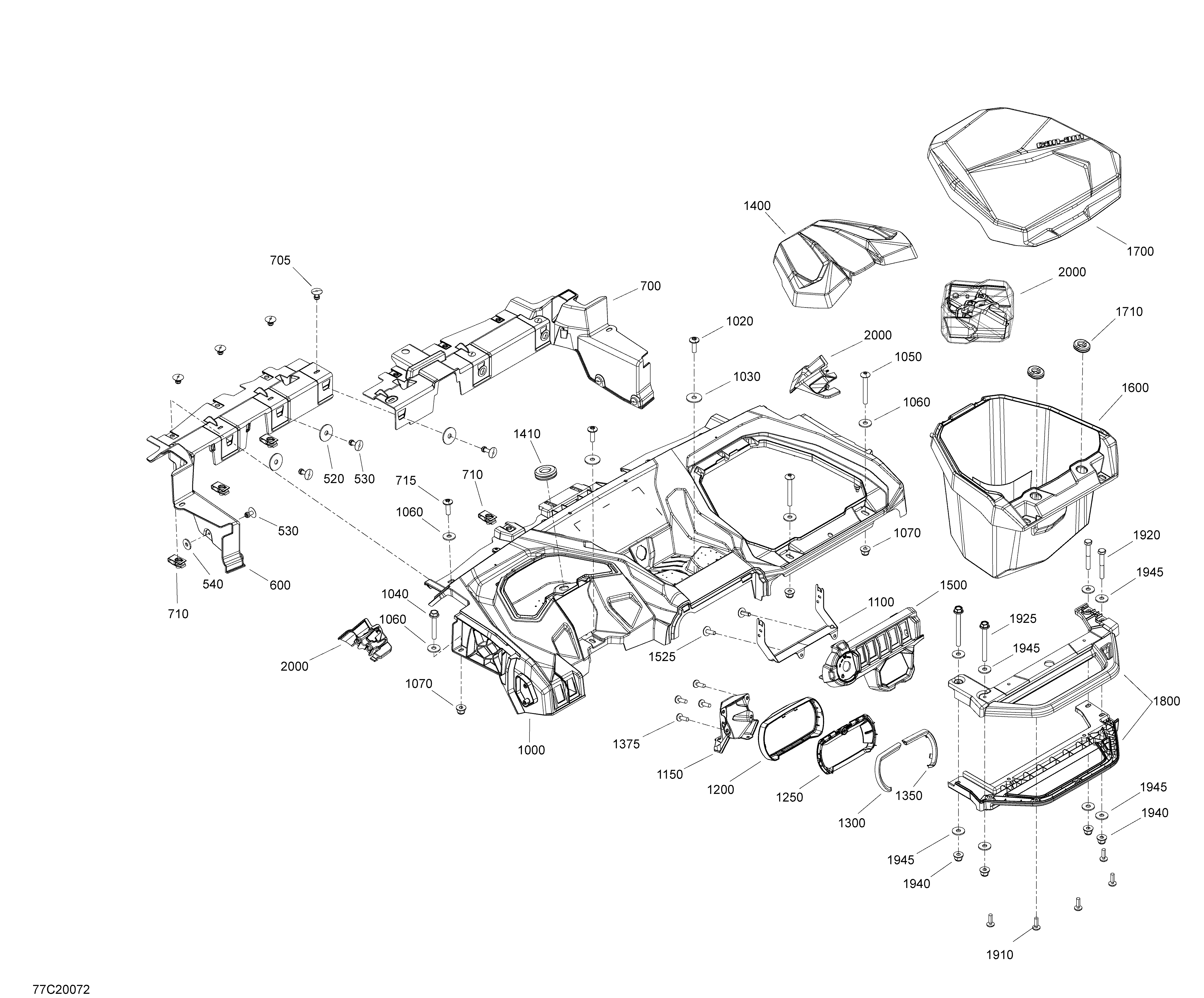

09- Cab Interior - Dashboard для BRP 002 - Maverick Trail 1000 - North America - 2020
-
№АртикулНазвание
-
520250200044 Washer-flat M6 * X 25Washer-flat M6 * X 25
-
530293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
540250200025 Washer M5Washer M5
-
600707900513 LH Upper Front BulkheadLH Upper Front Bulkhead
-
700707900514 RH Upper Front BulkheadRH Upper Front Bulkhead
-
705293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
710250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
715250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1000715005807 DashboardDashboard
-
1020250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1030250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1040207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
1050250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
1060234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1070233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1100707900519 Dash SupportDash Support
-
1150709402140 Cluster SupportCluster Support
-
1200709402092 Cluster Cap RearCluster Cap Rear
-
1250709402093 Cluster CapCluster Cap
-
1300709402210 Deep Black, LH Trim for Cluster CapDeep Black, LH Trim for Cluster Cap
-
1350709402211 Deep Black, RH Trim for Cluster CapDeep Black, RH Trim for Cluster Cap
-
1375250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1400707900522 Storage CoverStorage Cover
-
1410517303756 GrommetGrommet
-
1500707900523 Switch SupportSwitch Support
-
1525250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
1600715005011 Glove BoxGlove Box
-
1700715005006 Glove Box CoverGlove Box Cover
-
1710707900663 Oblong GrommetOblong Grommet
-
1800707900559 Passenger Handle Bar KitPassenger Handle Bar Kit
-
1910250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1920207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
1925250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
1940233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1945234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2000707900531 Front Cage Trim KitFront Cage Trim Kit
