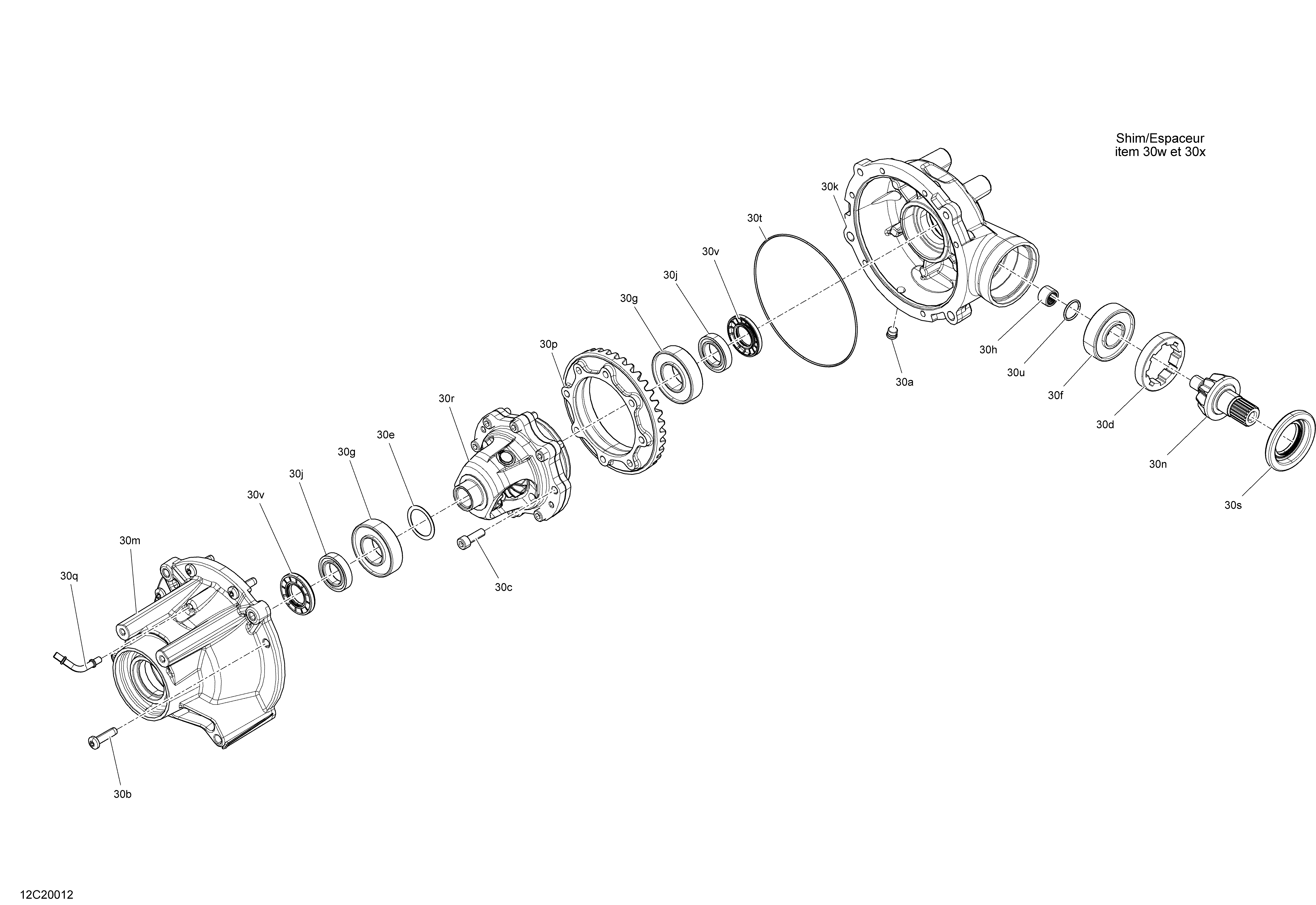

07- Front Drive - Differential Parts для BRP 003 - Commander MAX 1000R EFI - International - 2020
-
№АртикулНазвание
-
30a705501885 Drain Plug. Package LTDDrain Plug. Package LTD
-
30b705401601 Screw. Package LTDScrew. Package LTD
-
30c705401602 Screw. Package LTDScrew. Package LTD
-
30d705401603 Nut. Package LTDNut. Package LTD
-
30e705401604 Shim. Package LTDShim. Package LTD
-
30f705401605 Ball Bearing. Package LTDBall Bearing. Package LTD
-
30g705401606 Ball Bearing. Package LTDBall Bearing. Package LTD
-
30h705401607 Needle Bearing. Package LTDNeedle Bearing. Package LTD
-
30j705401608 Ball Bearing. Package LTDBall Bearing. Package LTD
-
30k705401792 Front Cover, Pinion. Package LTDFront Cover, Pinion. Package LTD
-
30m705401610 Front Cover. Package LTDFront Cover. Package LTD
-
30n705401791 Pinion 10 Teeth. Package LTDPinion 10 Teeth. Package LTD
-
30p705401612 Gear 36 Teeth. Package LTDGear 36 Teeth. Package LTD
-
30q705401613 Vent Valve. Package LTDVent Valve. Package LTD
-
30r705402182 Differential. Package LTDDifferential. Package LTD
-
30s705401615 Oil Seal. Package LTDOil Seal. Package LTD
-
30t705401616 Seal. Package LTDSeal. Package LTD
-
30u705401617 O'Ring. Package LTDO'Ring. Package LTD
-
30v705401618 Gasket. Package LTDGasket. Package LTD
-
30w705401769 Shim. Package LTD. Not shownShim. Package LTD. Not shown
-
30x705401770 Shim. Package LTD. Not shownShim. Package LTD. Not shown
-
30a705501885 Drain Plug. Package XTDrain Plug. Package XT
-
30b705401601 Screw. Package XTScrew. Package XT
-
30c705401602 Screw. Package XTScrew. Package XT
-
30d705401603 Nut. Package XTNut. Package XT
-
30e705401604 Shim. Package XTShim. Package XT
-
30f705401605 Ball Bearing. Package XTBall Bearing. Package XT
-
30g705401606 Ball Bearing. Package XTBall Bearing. Package XT
-
30h705401607 Needle Bearing. Package XTNeedle Bearing. Package XT
-
30j705401608 Ball Bearing. Package XTBall Bearing. Package XT
-
30k705401792 Front Cover, Pinion. Package XTFront Cover, Pinion. Package XT
-
30m705401610 Front Cover. Package XTFront Cover. Package XT
-
30n705401791 Pinion 10 Teeth. Package XTPinion 10 Teeth. Package XT
-
30p705401612 Gear 36 Teeth. Package XTGear 36 Teeth. Package XT
-
30q705401613 Vent Valve. Package XTVent Valve. Package XT
-
30r705402182 Differential. Package XTDifferential. Package XT
-
30s705401615 Oil Seal. Package XTOil Seal. Package XT
-
30t705401616 Seal. Package XTSeal. Package XT
-
30u705401617 O'Ring. Package XTO'Ring. Package XT
-
30v705401618 Gasket. Package XTGasket. Package XT
-
30w705401769 Shim. Package XT. Not shownShim. Package XT. Not shown
-
30x705401770 Shim. Package XT. Not shownShim. Package XT. Not shown
