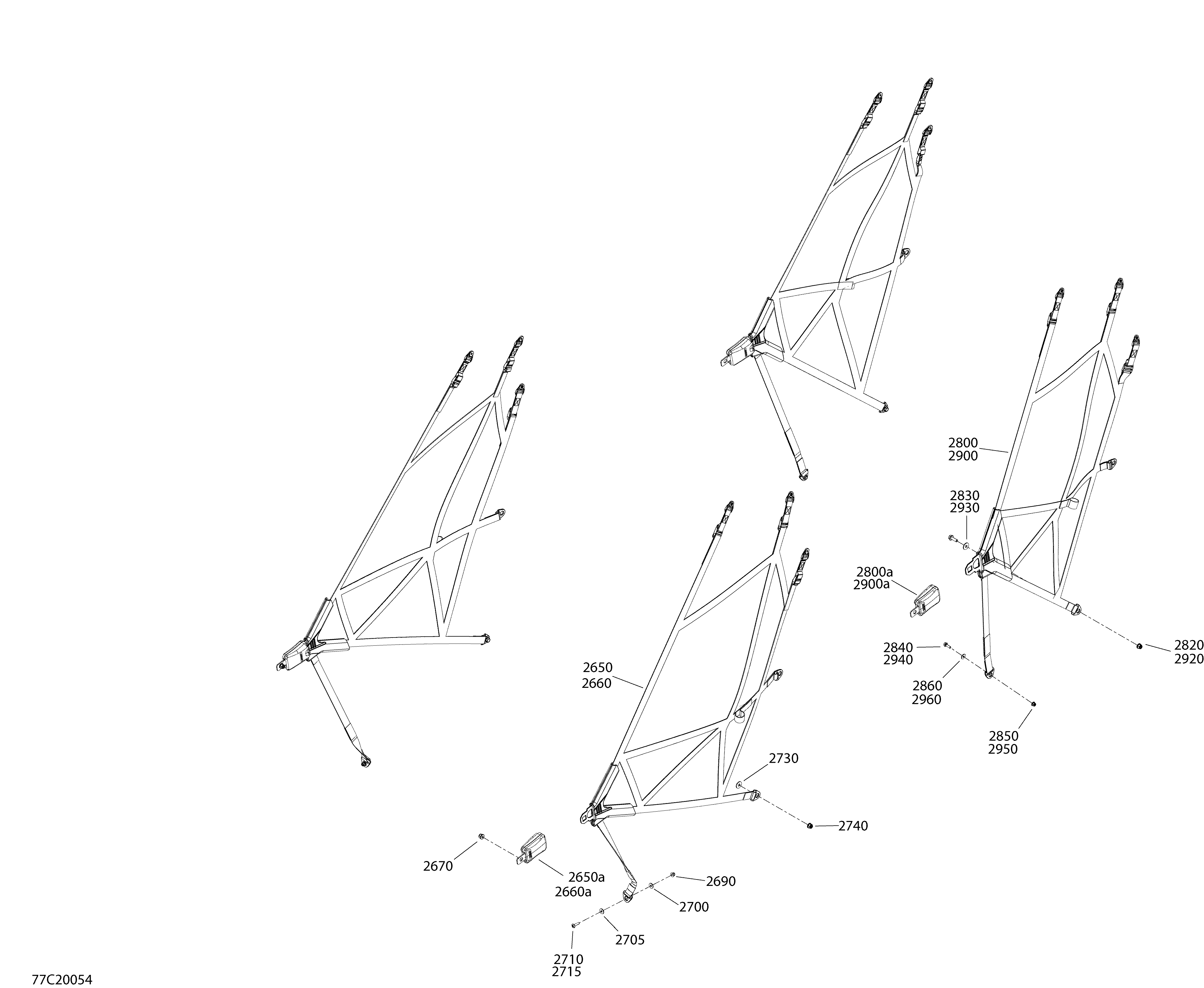

09- Cab Interior - Safety net для BRP 003 - Commander MAX 1000R EFI - International - 2020
-
№АртикулНазвание
-
2650707900237 Front LH Safety Net. Includes 2650 to 2650aFront LH Safety Net. Includes 2650 to 2650a
-
2650a715900398 BuckleBuckle
-
2660707900238 Front RH Safety Net. Includes 2660 to 2660aFront RH Safety Net. Includes 2660 to 2660a
-
2660a715900398 BuckleBuckle
-
2670233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2690233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
2700234062410 Flat Washer 6 mmFlat Washer 6 mm
-
2705234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2710207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2715250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
2730234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2740233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2800707900239 Rear LH Safety Net. Includes 2800 to 2800aRear LH Safety Net. Includes 2800 to 2800a
-
2800A715900398 BuckleBuckle
-
2820233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2830234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2840207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2850233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
2860234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2900707900240 Rear RH Safety Net. Includes 2900 to 2900aRear RH Safety Net. Includes 2900 to 2900a
-
2900a715900398 BuckleBuckle
-
2920233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2930234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2940207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2950233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
2960234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3600250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
3610250200040 Flat WasherFlat Washer
-
3615207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
3620207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
3625233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
