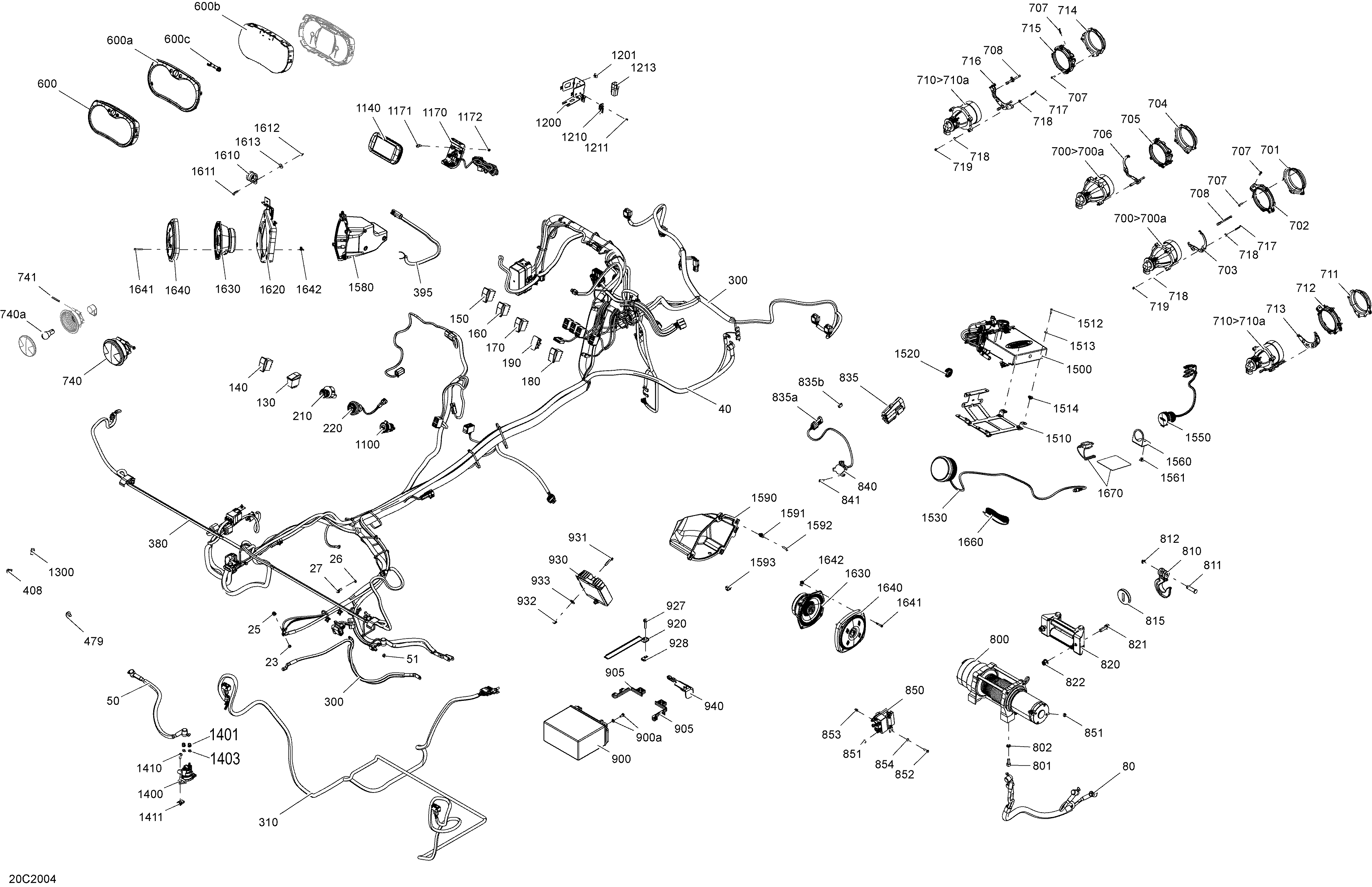

10- Electrical System для BRP 003 - Commander MAX 1000R EFI - International - 2020
-
№АртикулНазвание
-
23234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
26234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
27207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
40710005239 Winch Cable (-/+)Winch Cable (-/+)
-
50710004390 Positive CablePositive Cable
-
51232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
80710004387 Electrical Winch CableElectrical Winch Cable
-
130710002053 Switch, Over rideSwitch, Over ride
-
140710001725 Hi/Low SwitchHi/Low Switch
-
150710001737 SwitchSwitch
-
160710003541 Switch PPS SportSwitch PPS Sport
-
170710001781 Switch DPSSwitch DPS
-
180710002052 SwitchSwitch
-
190710001999 Plug CarlingPlug Carling
-
210710003847 Ignition SwitchIgnition Switch
-
220710002594 Engine Start ButtonEngine Start Button
-
300710006090 Harness Ass'yHarness Ass'y
-
310710004681 Rear HarnessRear Harness
-
380710004339 Radio Harness. Package LTDRadio Harness. Package LTD
-
395710004340 Speaker Harness. Package LTDSpeaker Harness. Package LTD
-
408293730040 Mount DartMount Dart
-
479293730018 Mount DartMount Dart
-
600710005653 Speedometer. Includes 600 to 600cSpeedometer. Includes 600 to 600c
-
600a415129348 Gauge RingGauge Ring
-
600b415129349 LensLens
-
600c415129355 Speedometer ButtonSpeedometer Button
-
700710002524 Low Beam Ass'y. Includes 700 to 700aLow Beam Ass'y. Includes 700 to 700a
-
700a415129249 Halogen BulbHalogen Bulb
-
701710001081 RH Low Front HousingRH Low Front Housing
-
702710001082 RH Low Rear HousingRH Low Rear Housing
-
703710001094 RH Low Light SupportRH Low Light Support
-
704710001083 LH Low Front HousingLH Low Front Housing
-
705710001084 LH Low Rear HousingLH Low Rear Housing
-
706710001037 LH Low Light SupportLH Low Light Support
-
707250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
708710001147 Setting ScrewSetting Screw
-
710710002525 High Beam Ass'y. Includes 710 to 710aHigh Beam Ass'y. Includes 710 to 710a
-
710a415129249 Halogen BulbHalogen Bulb
-
711710001085 RH High Front HousingRH High Front Housing
-
712710001086 RH High Rear HousingRH High Rear Housing
-
713710001115 RH High Light SupportRH High Light Support
-
714710001087 LH High Front HousingLH High Front Housing
-
715710001088 LH High Rear HousingLH High Rear Housing
-
716710001036 LH High Light SupportLH High Light Support
-
717207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
718234051410 Flat Washer M5Flat Washer M5
-
719232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
740710001645 Tail Light Ass'y. Includes 740 to 740aTail Light Ass'y. Includes 740 to 740a
-
740a520000758 BulbBulb
-
741241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
800710005732 Winch. Packages XT & LTDWinch. Packages XT & LTD
-
800710005732 Winch. Packages XT & LTDWinch. Packages XT & LTD
-
801205082044 Socket Head Screw M8 X 20. Packages XT & LTDSocket Head Screw M8 X 20. Packages XT & LTD
-
802234181401 Lock Washer 8 mm. Packages XT & LTDLock Washer 8 mm. Packages XT & LTD
-
810715003523 Hook and Strap kit. Packages XT & LTDHook and Strap kit. Packages XT & LTD
-
811715003523 Hook and Strap kit. Packages XT & LTDHook and Strap kit. Packages XT & LTD
-
812715003523 Hook and Strap kit. Packages XT & LTDHook and Strap kit. Packages XT & LTD
-
815710005142 Winch Cable Stopper. Packages XT & LTDWinch Cable Stopper. Packages XT & LTD
-
820710004822 Winch Cable Guide. Packages XT & LTDWinch Cable Guide. Packages XT & LTD
-
821205003044 Socket Screw M10 x 30. Packages XT & LTDSocket Screw M10 x 30. Packages XT & LTD
-
822233201414 Hex. Flanged Elastic Nut M10. Packages XT & LTDHex. Flanged Elastic Nut M10. Packages XT & LTD
-
835710001059 Connector Ass'y. Packages XT & LTD. Includes 835 to 835bConnector Ass'y. Packages XT & LTD. Includes 835 to 835b
-
835a278000281 Female Terminal Housing, 3 Circuits. Packages XT & LTDFemale Terminal Housing, 3 Circuits. Packages XT & LTD
-
835b710000992 Clip. Packages XT & LTDClip. Packages XT & LTD
-
840710005258 Winch Connector. Packages XT & LTDWinch Connector. Packages XT & LTD
-
841250000720 Torx Screw K50 X 16. Packages XT & LTDTorx Screw K50 X 16. Packages XT & LTD
-
850703500947 Solenoid. Packages XT & LTDSolenoid. Packages XT & LTD
-
851232561434 Elastic Stop Nut M6. Packages XT & LTDElastic Stop Nut M6. Packages XT & LTD
-
852207151644 Hex. Screw M5 X 16. Packages XT & LTDHex. Screw M5 X 16. Packages XT & LTD
-
853233251494 Elastic Flanged Nut M5. Packages XT & LTDElastic Flanged Nut M5. Packages XT & LTD
-
854234051410 Flat Washer M5. Packages XT & LTDFlat Washer M5. Packages XT & LTD
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710003602 Battery Rubber PadBattery Rubber Pad
-
920710001916 Battery HolderBattery Holder
-
927207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
928250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
930710005842 Voltage RegulatorVoltage Regulator
-
931207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
932233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
933234062670 Flat Washer, StainlessFlat Washer, Stainless
-
940710003582 CapCap
-
1100710001248 Outlet DCOutlet DC
-
1140710005034 GPS. Package LTDGPS. Package LTD
-
1170710003210 GPS Support. Package LTDGPS Support. Package LTD
-
1171250000797 Torx Head Screw M4 X 16. Package LTDTorx Head Screw M4 X 16. Package LTD
-
1172232541484 Elastic Stop Nut M4. Package LTDElastic Stop Nut M4. Package LTD
-
1200710003335 Fuse HolderFuse Holder
-
1201293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
1210270000141 ClipClip
-
1211390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
1213710003006 HousingHousing
-
1300414227300 ClipClip
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1410250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
1411250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1500710005442 Amplifier. Package LTDAmplifier. Package LTD
-
1510710002556 Amplifier Support. Package LTDAmplifier Support. Package LTD
-
1512250000750 Torx Screw M4 X 16. Package LTDTorx Screw M4 X 16. Package LTD
-
1513234042600 Flat Washer 4 mm, Stainless. Package LTDFlat Washer 4 mm, Stainless. Package LTD
-
1514250100143 Extruded Panel Nut M4 X 0.7. Package LTDExtruded Panel Nut M4 X 0.7. Package LTD
-
1520710002926 Grommet Boot. Package LTDGrommet Boot. Package LTD
-
1530710002549 Radio Interface. Package LTDRadio Interface. Package LTD
-
1550710002551 USB Extension. Package LTDUSB Extension. Package LTD
-
1560710002731 USB Extension Support. Package LTDUSB Extension Support. Package LTD
-
1561293150103 Pop Rivet 3/16''. Package LTDPop Rivet 3/16''. Package LTD
-
1580705012294 LH Speaker HSG . Package LTDLH Speaker HSG . Package LTD
-
1590705012293 RH Speaker HSG. Package LTDRH Speaker HSG. Package LTD
-
1591250000958 Panel Nut M5 X 0.8. Package LTDPanel Nut M5 X 0.8. Package LTD
-
1592250000724 Torx Screw M5 X 20. Package LTDTorx Screw M5 X 20. Package LTD
-
1593414227300 Clip. Package LTDClip. Package LTD
-
1610709200036 Hose Anchor. Package LTDHose Anchor. Package LTD
-
1611250000724 Torx Screw M5 X 20. Package LTDTorx Screw M5 X 20. Package LTD
-
1612233251494 Elastic Flanged Nut M5. Package LTDElastic Flanged Nut M5. Package LTD
-
1613250200025 Washer M5. Package LTDWasher M5. Package LTD
-
1620710002789 Speaker Box Plate. Package LTDSpeaker Box Plate. Package LTD
-
1630710003233 Front Speaker. Package LTDFront Speaker. Package LTD
-
1640710002790 Speaker Cover. Package LTDSpeaker Cover. Package LTD
-
1641205042560 Socket Head Screw M4 X 25. Package LTDSocket Head Screw M4 X 25. Package LTD
-
1642250100143 Extruded Panel Nut M4 X 0.7. Package LTDExtruded Panel Nut M4 X 0.7. Package LTD
-
1660710002810 Antenna. Package LTDAntenna. Package LTD
-
1670710005958 BlueTooth Module. Package LTDBlueTooth Module. Package LTD
