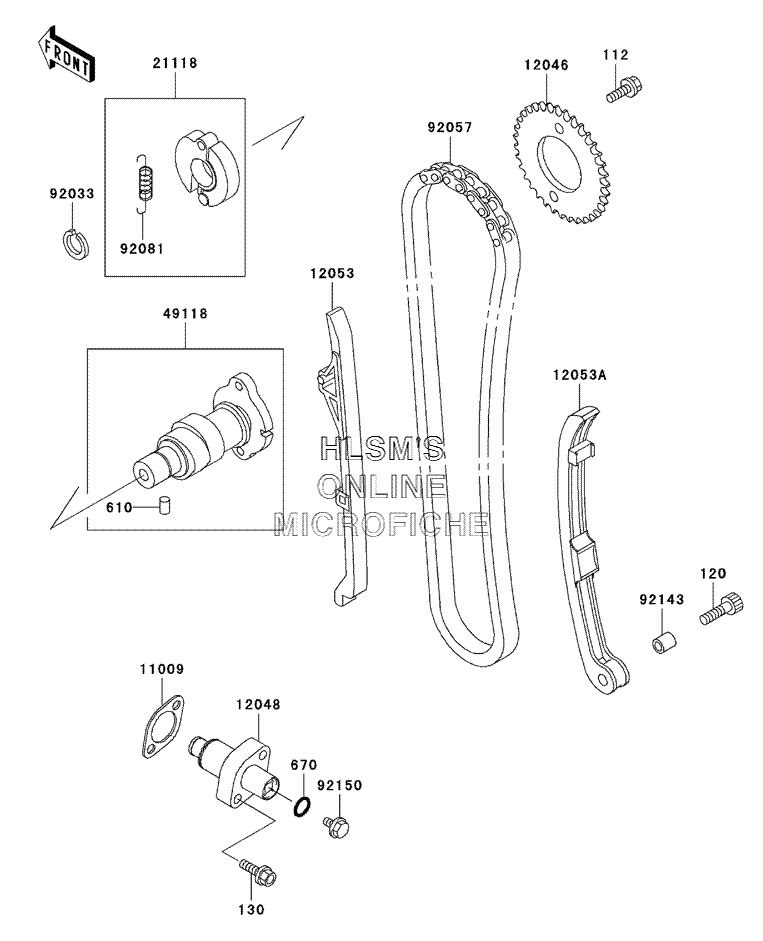

CAMSHAFT(S)/TENSIONER для Kawasaki Prairie 400 (KVF400-D2) - 2000 года выпуска
-
№АртикулНазвание
-
112112G0610 BOLT-UPSET, 6X10BOLT-UPSET, 6X10
-
120120P0625 BOLT-SOCKET, 6X25BOLT-SOCKET, 6X25
-
130130J0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
670670D2010 O RINGO RING
-
1100911009-1858 GASKET, TENSIONERGASKET, TENSIONER
-
1204612046-1131 SPROCKET, CAM (38 TEETH)SPROCKET, CAM (38 TEETH)
-
1204812048-1172 TENSIONER-ASSY.TENSIONER-ASSY.
-
1205312053-1423 GUIDE-CHAIN, FRONTGUIDE-CHAIN, FRONT
-
12053A12053-1424 GUIDE-CHAIN, REARGUIDE-CHAIN, REAR
-
2111821118-1082 DECOMPRESSORDECOMPRESSOR
-
4911849118-1201 CAMSHAFT-COMPCAMSHAFT-COMP
-
9203392033-1214 RING-SNAP, 18.7MMRING-SNAP, 18.7MM
-
9205792057-1256 CHAIN, CAM, 82 (RIGHT) 2010-118LCHAIN, CAM, 82 (RIGHT) 2010-118L
-
9208192081-1674 SPRING, DECOMPRESSORSPRING, DECOMPRESSOR
-
9214392143-1253 COLLAR, 6X8X10.2COLLAR, 6X8X10.2
-
9215092150-1381 BOLT, TENSIONERBOLT, TENSIONER
