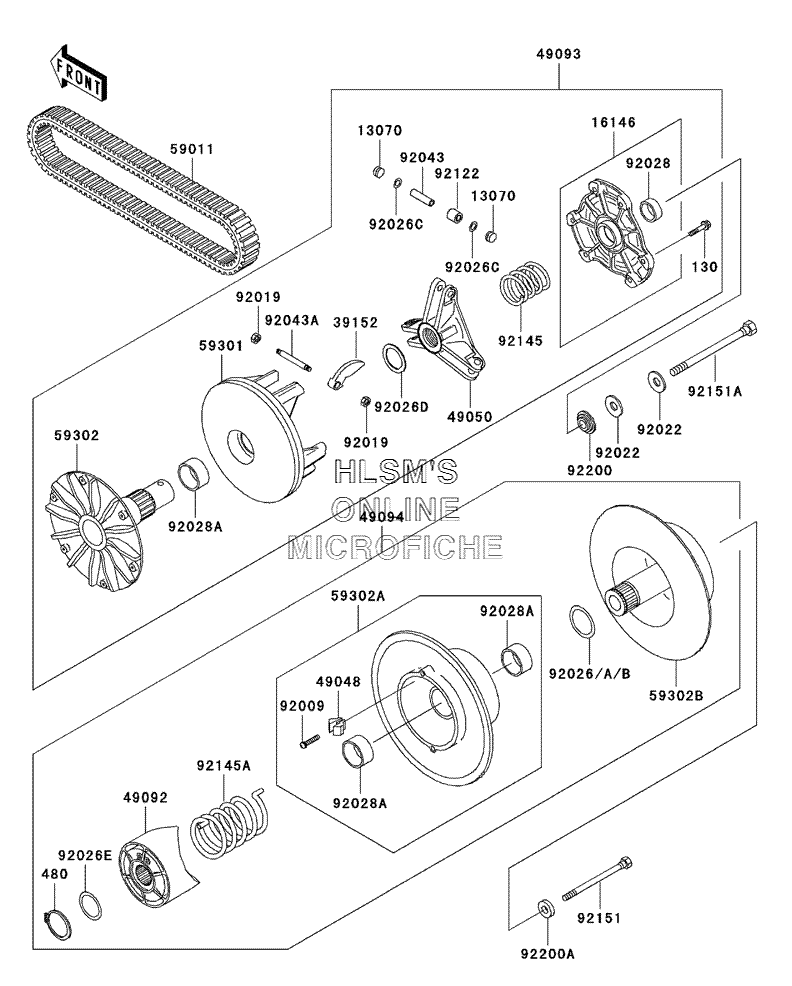

DRIVE CONVERTER для Kawasaki Prairie 400 (KVF400-D2) - 2000 года выпуска
-
№АртикулНазвание
-
130130P0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
480480J3400 CIRCLIPCIRCLIP
-
1307013070-1330 GUIDEGUIDE
-
1614616146-1194 COVER-ASSY.COVER-ASSY.
-
3915239152-1064 WEIGHT-RAMPWEIGHT-RAMP
-
4904849048-1060 SHOESHOE
-
4905049050-1064 SPIDERSPIDER
-
4909249092-1062 RAMPRAMP
-
4909349093-1060 CONVERTER-ASSY.-DRIVECONVERTER-ASSY.-DRIVE
-
4909449094-1060 CONVERTER-ASSY.-DRIVENCONVERTER-ASSY.-DRIVEN
-
5901159011-1066 BELTBELT
-
5930159301-1060 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-1070 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
59302A59302-1072 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
59302B59302-1073 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
9200992009-1849 SCREW, SHOESCREW, SHOE
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-1901 WASHER, SPECIAL CONICALWASHER, SPECIAL CONICAL
-
9202692026-1507 SPACER, 39X50X0.50SPACER, 39X50X0.50
-
92026A92026-1508 SPACER, 39X50X0.60SPACER, 39X50X0.60
-
92026B92026-1510 SPACER, 39X50X0.80SPACER, 39X50X0.80
-
92026C92026-1512 SPACERSPACER
-
92026D92026-1520 SPACER, 32.3X44.3X1.60SPACER, 32.3X44.3X1.60
-
92026E92026-1521 SPACER, 34X44X0.80SPACER, 34X44X0.80
-
9202892028-1861 BUSHINGBUSHING
-
92028A92028-1864 BUSHINGBUSHING
-
9204392043-1572 PINPIN
-
92043A92043-1573 PINPIN
-
9212292122-1204 ROLLERROLLER
-
9214592145-1128 SPRING, DRIVE CONVERTERSPRING, DRIVE CONVERTER
-
92145A92145-1129 SPRING, CONVERTER DRIVENSPRING, CONVERTER DRIVEN
-
9215192151-1315 BOLT, 10X95BOLT, 10X95
-
92151A92151-1393 BOLT, 12X165BOLT, 12X165
-
9220092200-1401 WASHERWASHER
-
92200A92200-1402 WASHER, 10.2X37X5.0WASHER, 10.2X37X5.0
