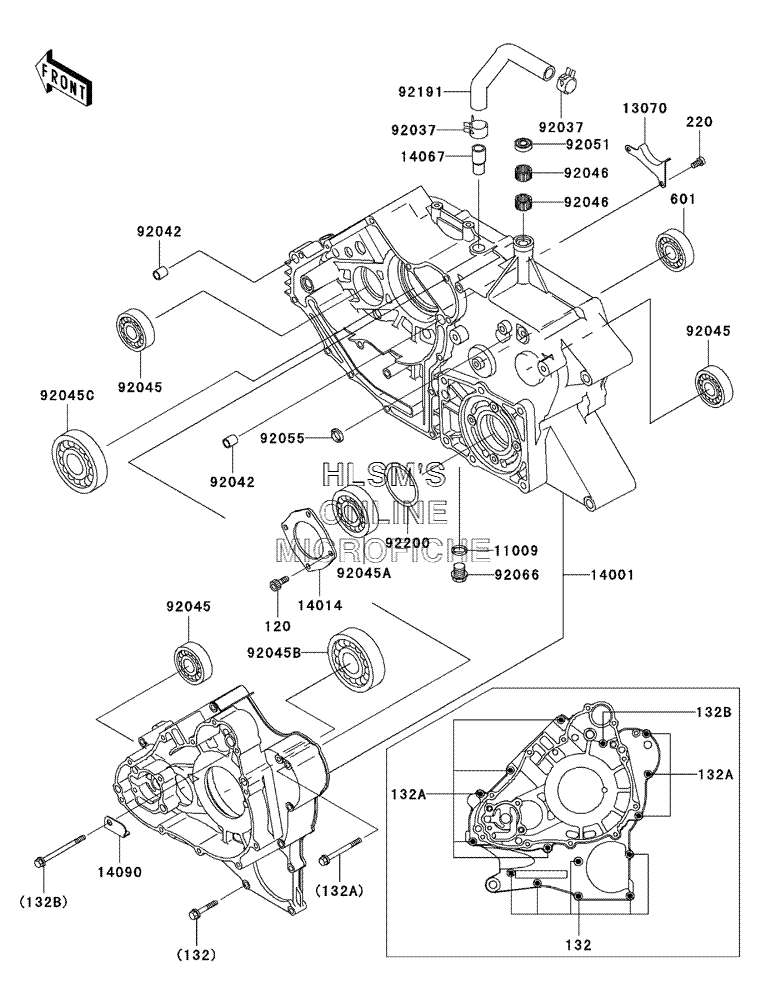

CRANKCASE для Kawasaki Prairie 400 (KVF400-D2) - 2000 года выпуска
-
№АртикулНазвание
-
120120P0616 BOLT-SOCKET, 6X16BOLT-SOCKET, 6X16
-
132132Y0635 BOLT-FLANGED-SMALL, 6X35BOLT-FLANGED-SMALL, 6X35
-
132A132Y0665 BOLT-FLANGED-SMALL, 6X65BOLT-FLANGED-SMALL, 6X65
-
132B132Y0675 BOLT-FLANGED-SMALL, 6X75BOLT-FLANGED-SMALL, 6X75
-
220220B0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
601601A6204Z BEARING-BALLBEARING-BALL
-
1100911009-2175 GASKETGASKET
-
1307013070-1255 GUIDE, CHAINGUIDE, CHAIN
-
1400114001-1245 SET-CRANKCASESET-CRANKCASE
-
1401414014-1108 PLATE-POSITIONPLATE-POSITION
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
1409014090-1710 COVERCOVER
-
9203792037-1860 CLAMPCLAMP
-
9204292042-031 PIN, DOWEL, 12X14PIN, DOWEL, 12X14
-
9204592045-1142 BEARING-BALL, TMB304CCMBEARING-BALL, TMB304CCM
-
92045A92045-1254 BEARING-BALL, 6305RHR4SH2BEARING-BALL, 6305RHR4SH2
-
92045B92045-1257 BEARING-BALL, 6307SH2-9C4BEARING-BALL, 6307SH2-9C4
-
92045C92045-1258 BEARING-BALL, 6208RSH2-9C3BEARING-BALL, 6208RSH2-9C3
-
9204692046-1148 BEARING-NEEDLE, HK1312BEARING-NEEDLE, HK1312
-
9205192051-005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
9205592055-048 RING-O, OD=18RING-O, OD=18
-
9206692066-2196 PLUG, DRAINPLUG, DRAIN
-
9219192191-1114 TUBETUBE
-
9220092200-1106 WASHER, 50X60.5X0.5WASHER, 50X60.5X0.5
