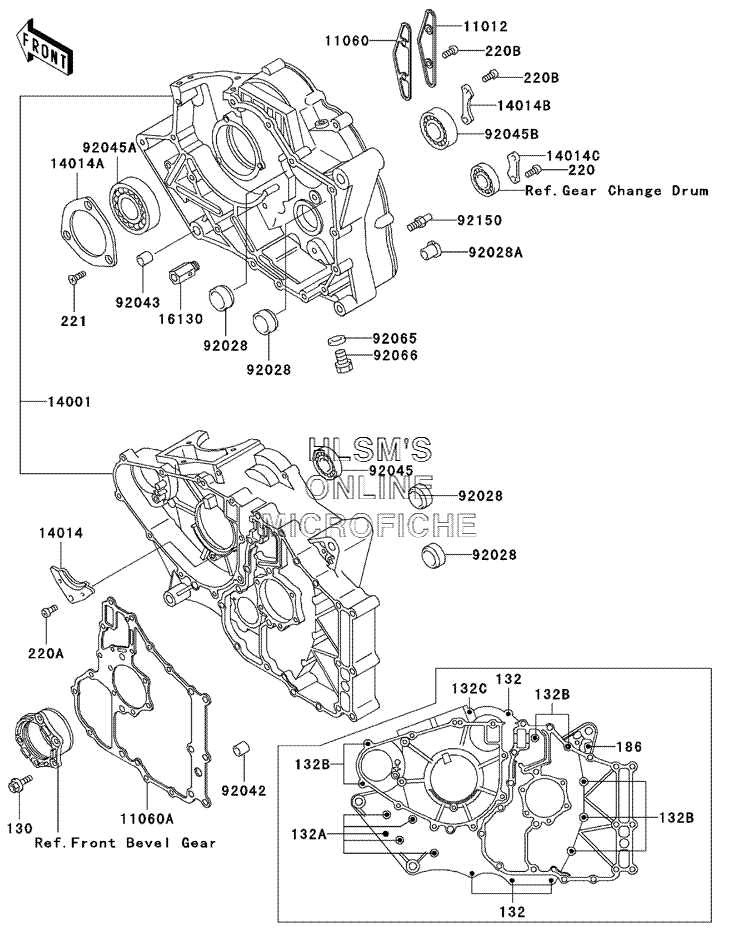

CRANKCASE для Kawasaki Bayou 300 4x4 (KLF300-C13) - 2001 года выпуска
-
№АртикулНазвание
-
130130P0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
132132Y0635 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132Y0655 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132Y0665 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132C132Y0685 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
186186D0614 BOLT-UPSET-WPBOLT-UPSET-WP
-
220220B0610 SCREW-PAN-CROS, 6X10SCREW-PAN-CROS, 6X10
-
220A220B0612 SCREW-PAN-CROS, 6X12SCREW-PAN-CROS, 6X12
-
220B220B0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
221221B0616 SCREW-CSK-CROS, 6X16SCREW-CSK-CROS, 6X16
-
1101211012-1643 CAPCAP
-
1106011060-1713 GASKET, OIL LINE CAPGASKET, OIL LINE CAP
-
11060A11060-1714 GASKET, GEAR CASEGASKET, GEAR CASE
-
1400114001-5325 SET-CRANKCASESET-CRANKCASE
-
1401414014-035 PLATE-POSITION, CAM CHAINPLATE-POSITION, CAM CHAIN
-
14014A14014-1004 PLATE-POSITION, CRANK BEARINGPLATE-POSITION, CRANK BEARING
-
14014B14014-1069 PLATE-POSITIONPLATE-POSITION
-
14014C14014-1070 PLATE-POSITION, CHANGE DRUMPLATE-POSITION, CHANGE DRUM
-
1613016130-1001 VALVE-ASSY-RELIEFVALVE-ASSY-RELIEF
-
9202892028-132 BUSHING, 23X30X13BUSHING, 23X30X13
-
92028A92028-1386 BUSHINGBUSHING
-
9204292042-031 PIN, DOWEL, 12X14PIN, DOWEL, 12X14
-
9204392043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9204592045-1118 BEARING-BALL, 6004TMBBEARING-BALL, 6004TMB
-
92045A92045-1172 BEARING-BALLBEARING-BALL
-
92045B92045-1173 BEARING-BALLBEARING-BALL
-
9206592065-097 GASKET, 12X22X2, DRAIN PLUGGASKET, 12X22X2, DRAIN PLUG
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
9215092150-1106 BOLT, RETURN SPRINGBOLT, RETURN SPRING
