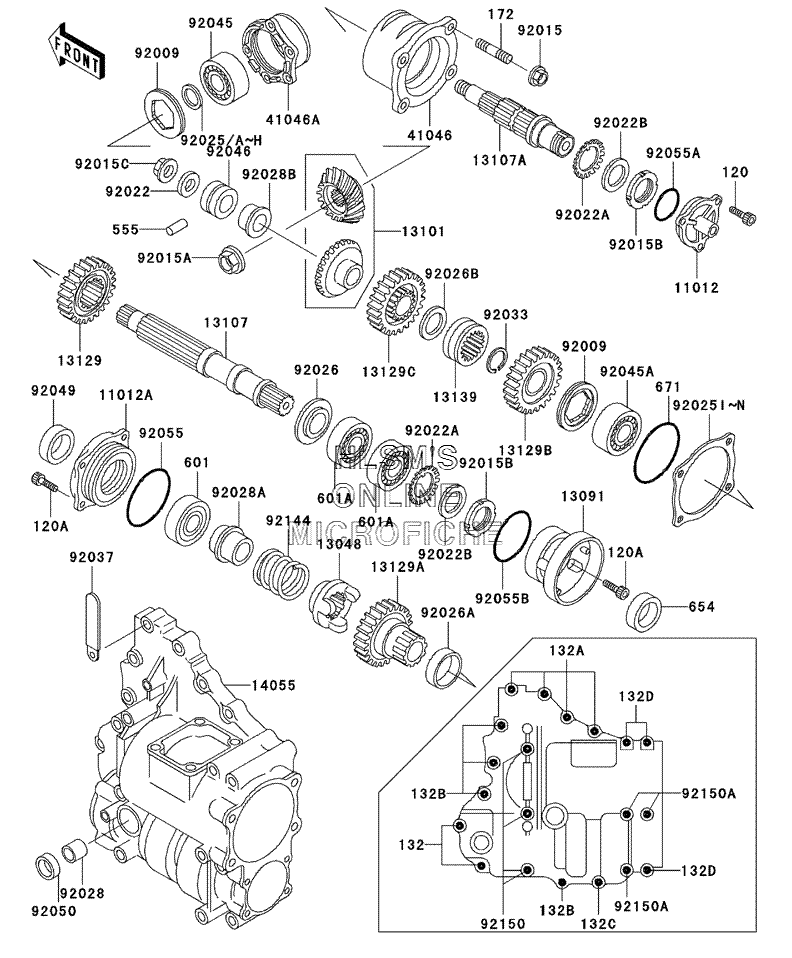

FRONT BEVEL GEAR для Kawasaki Bayou 300 4x4 (KLF300-C13) - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-1641 CAPCAP
-
11012A11012-1642 CAPCAP
-
1304813048-1075 CAM-DAMPERCAM-DAMPER
-
1309113091-1542 HOLDERHOLDER
-
1310113101-5078 GEAR-ASSY, BEVELGEAR-ASSY, BEVEL
-
1310713107-1227 SHAFTSHAFT
-
13107A13107-1228 SHAFTSHAFT
-
1312913129-1948 GEAR-TRANSMISSION SPUR (37 TEETH)GEAR-TRANSMISSION SPUR (37 TEETH)
-
13129A13129-1949 GEAR-TRANSMISSION SPUR (33 TEETH)GEAR-TRANSMISSION SPUR (33 TEETH)
-
13129B13129-1950 GEAR-TRANSMISSION SPURGEAR-TRANSMISSION SPUR
-
13129C13129-1951 GEAR-TRANSMISSION SPURGEAR-TRANSMISSION SPUR
-
1313913139-1056 SHIFTERSHIFTER
-
1405514055-1133 CASE-GEARCASE-GEAR
-
4104641046-1088 HOUSING-BEARINGHOUSING-BEARING
-
41046A41046-1098 HOUSING-BEARING, GEAR CASE, FRONTHOUSING-BEARING, GEAR CASE, FRONT
-
9200992009-1384 SCREW, 55MMSCREW, 55MM
-
9201592015-1402 NUT, 8MMNUT, 8MM
-
92015A92015-1581 NUT, 16MMNUT, 16MM
-
92015B92015-1768 NUT, 25MMNUT, 25MM
-
92015C92015-1911 NUT, FLANGED, 12MMNUT, FLANGED, 12MM
-
9202292022-1890 WASHER, 12X24X2.3WASHER, 12X24X2.3
-
92022A92022-1990 WASHER, TOOTHEDWASHER, TOOTHED
-
92022B92022-225 WASHER, 25.3X32X0.5WASHER, 25.3X32X0.5
-
9202592025-1533 SHIM, 20.3X28X1.3SHIM, 20.3X28X1.3
-
92025A92025-1534 SHIM, 20.3X28X0.7SHIM, 20.3X28X0.7
-
92025B92025-1535 SHIM, 20.3X28X0.8SHIM, 20.3X28X0.8
-
92025C92025-1536 SHIM, 20.3X28X0.9SHIM, 20.3X28X0.9
-
92025D92025-1537 SHIM, 20.3X28X1.0SHIM, 20.3X28X1.0
-
92025E92025-1538 SHIM, 20.3X28X1.2SHIM, 20.3X28X1.2
-
92025F92025-1573 SHIM, 20.3X28X0.15SHIM, 20.3X28X0.15
-
92025G92025-1574 SHIM, 20.3X28X0.20SHIM, 20.3X28X0.20
-
92025H92025-1575 SHIM, 20.3X28X1.1SHIM, 20.3X28X1.1
-
92025I92025-1897 SHIM, T=0.10SHIM, T=0.10
-
92025J92025-1898 SHIM, T=0.15SHIM, T=0.15
-
92025K92025-1899 SHIM, T=0.50SHIM, T=0.50
-
92025L92025-1900 SHIM, T=0.80SHIM, T=0.80
-
92025M92025-1901 SHIM, T=1.00SHIM, T=1.00
-
92025N92025-1902 SHIM, T=1.20SHIM, T=1.20
-
9202692026-1334 SPACERSPACER
-
92026A92026-1335 SPACER, 40X44X16SPACER, 40X44X16
-
120120P0614 BOLT-SOCKET, 6X14BOLT-SOCKET, 6X14
-
120A120P0620 BOLT-SOCKET, 6X20BOLT-SOCKET, 6X20
-
132132J0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132J0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132J0635 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132C132J0675 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132D132J0895 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
172172G0822 BOLT-STUD, 8X22BOLT-STUD, 8X22
-
555555A0432 PIN-SPRINGPIN-SPRING
-
601601B6007 BEARING-BALL, #6007C3BEARING-BALL, #6007C3
-
601A601B6205 BEARING-BALL, #6205C3BEARING-BALL, #6205C3
-
654654A304208 OIL SEAL, 30X42X8OIL SEAL, 30X42X8
-
671671B2575 O RINGO RING
-
92026B92026-1336 SPACER, 24.5X36X2.0SPACER, 24.5X36X2.0
-
9202892028-1347 BUSHINGBUSHING
-
92028A92028-1539 BUSHINGBUSHING
-
92028B92028-1540 BUSHINGBUSHING
-
9203392033-1248 RING-SNAP, 28.6MMRING-SNAP, 28.6MM
-
9203792037-1679 CLAMPCLAMP
-
9204592045-1144 BEARING-BALL, 5304BEARING-BALL, 5304
-
92045A92045-1221 BEARING-BALL, 5205BEARING-BALL, 5205
-
9204692046-1182 BEARING-NEEDLE, RNA4904REBEARING-NEEDLE, RNA4904RE
-
9204992049-1047 SEAL-OILSEAL-OIL
-
9205092050-082 SEAL-OILSEAL-OIL
-
9205592055-1038 RING-O, ID=57.6RING-O, ID=57.6
-
92055A92055-1405 RING-O, 40.2X2.4RING-O, 40.2X2.4
-
92055B92055-1406 RING-O, 47.2X2.4RING-O, 47.2X2.4
-
9214492144-1273 SPRINGSPRING
-
9215092150-1104 BOLT, 8X85BOLT, 8X85
-
92150A92150-1105 BOLT, 8X110BOLT, 8X110
