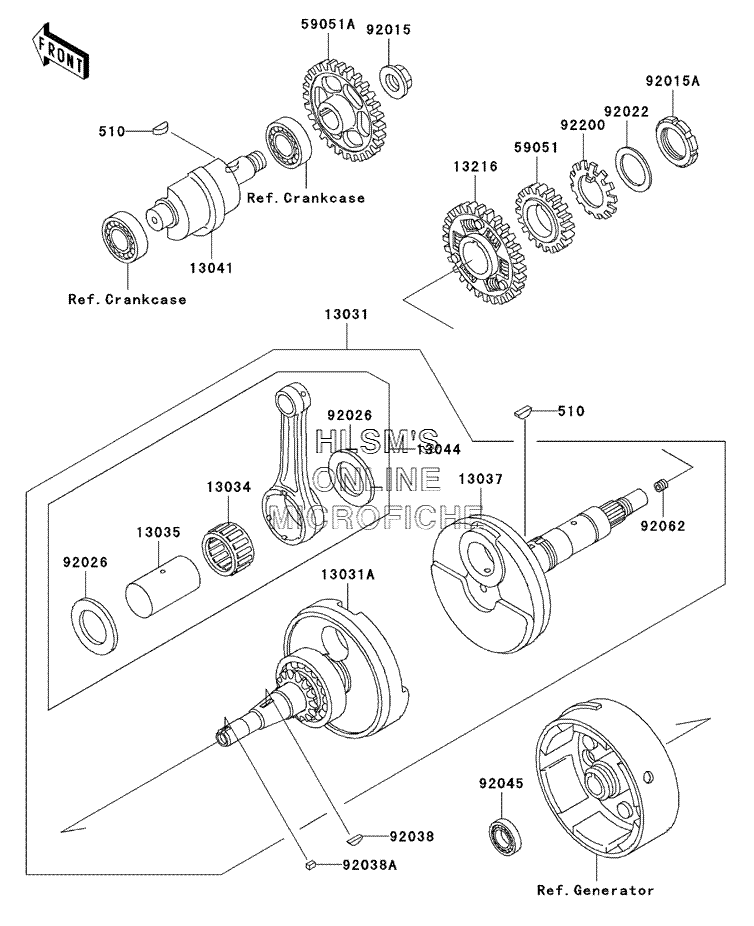

CRANKSHAFT для Kawasaki Bayou 300 4x4 (KLF300-C13) - 2001 года выпуска
-
№АртикулНазвание
-
510510A5100 KEY-WOODRUFFKEY-WOODRUFF
-
1303113031-1388 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
13031A13031-1402 CRANKSHAFT-COMP (LEFT)CRANKSHAFT-COMP (LEFT)
-
1303413034-1061 BEARING-BIG END, PK32X43X22.4BEARING-BIG END, PK32X43X22.4
-
1303513035-1067 PIN-CRANKPIN-CRANK
-
1303713037-1499 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
1304113041-1066 BALANCERBALANCER
-
1304413044-5066 SET-CONNECTING RODSET-CONNECTING ROD
-
1321613216-1072 GEAR-COMP, BALANCERGEAR-COMP, BALANCER
-
5905159051-1140 GEAR-SPUR, OIL PUMP (36 TEETH)GEAR-SPUR, OIL PUMP (36 TEETH)
-
59051A59051-1141 GEAR-SPUR, BALANCER (44 TEETH)GEAR-SPUR, BALANCER (44 TEETH)
-
9201592015-1465 NUT, 16MMNUT, 16MM
-
92015A92015-1511 NUT, PUMP GEAR, 30MMNUT, PUMP GEAR, 30MM
-
9202292022-1987 WASHER, 30.3X38X0.5WASHER, 30.3X38X0.5
-
9202692026-1232 SPACER, 32X51.5X1.2SPACER, 32X51.5X1.2
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
92038A92038-1051 KEY, SUNKKEY, SUNK
-
9204592045-1266 BEARING-BALL, 6903C3BEARING-BALL, 6903C3
-
9206292062-1056 NOZZLENOZZLE
-
9220092200-1203 WASHER, PUMP GEARWASHER, PUMP GEAR
