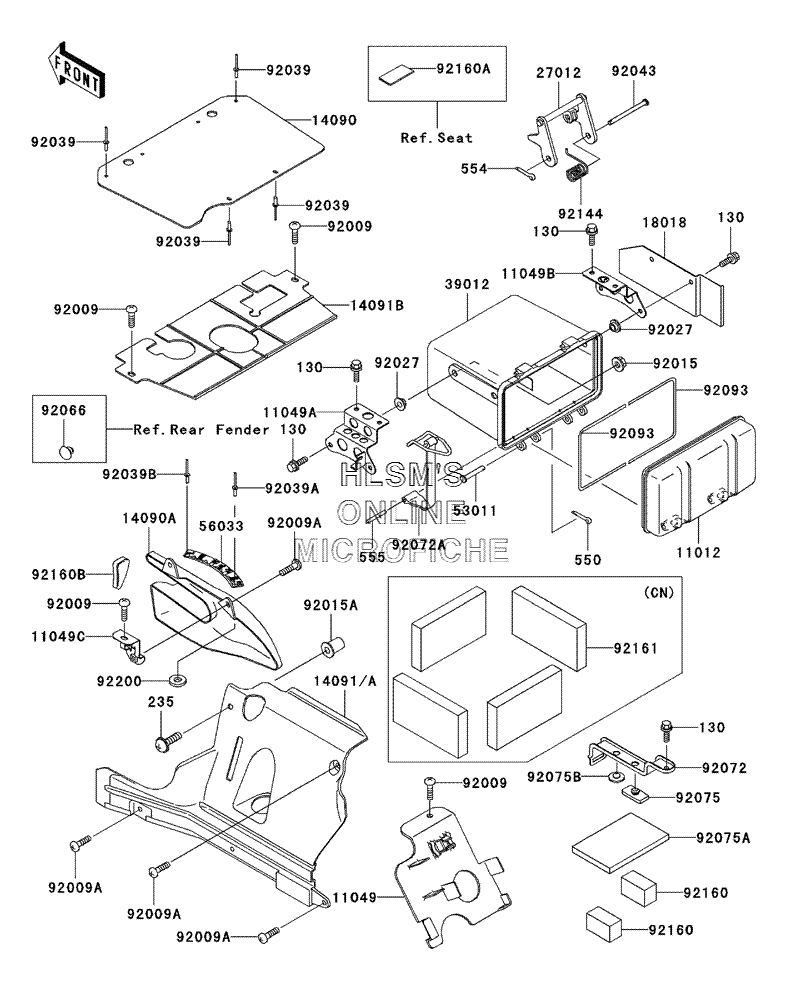

BATTERY CASE для Kawasaki Prairie 400 (KVF400-D3) - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-1951 CAP, STORAGE CASECAP, STORAGE CASE
-
1104911049-1516 BRACKET, ELECTRIC BASEBRACKET, ELECTRIC BASE
-
11049A11049-1733 BRACKET, STORAGE CASE (LEFT)BRACKET, STORAGE CASE (LEFT)
-
11049B11049-1734 BRACKET, STORAGE CASE (RIGHT)BRACKET, STORAGE CASE (RIGHT)
-
11049C11049-1738 BRACKETBRACKET
-
1409014090-1723 COVER, FRONT COVERCOVER, FRONT COVER
-
14090A14090-1973 COVER, SHIFT LEVERCOVER, SHIFT LEVER
-
14091A14091-1173-6Z COVER, ENGINE (LEFT) (F.BLACK)COVER, ENGINE (LEFT) (F.BLACK)
-
14091B14091-1379 COVER, REAR COVERCOVER, REAR COVER
-
1801818018-1127 PLATE-HEAT GUARDPLATE-HEAT GUARD
-
2701227012-1381 HOOK, SEATHOOK, SEAT
-
3901239012-1059 CASE-STORAGECASE-STORAGE
-
5301153011-006 PIN, 6X39PIN, 6X39
-
5603356033-1142 LABEL-MANUAL, SHIFT PATTERNLABEL-MANUAL, SHIFT PATTERN
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1233 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202792027-1933 COLLAR, L=5.6COLLAR, L=5.6
-
9203992039-1233 RIVETRIVET
-
92039A92039-1244 RIVETRIVET
-
92039B92039-3763 RIVET, 3.2X8RIVET, 3.2X8
-
9204392043-1367 PIN, 6X77PIN, 6X77
-
9206692066-1485 PLUGPLUG
-
9207292072-1333 BAND, BATTERYBAND, BATTERY
-
92072A92072-1337 BAND, STORAGE CASEBAND, STORAGE CASE
-
9207592075-1054 DAMPERDAMPER
-
92075A92075-1997 DAMPER, BATTERY (US ONLY)DAMPER, BATTERY (US ONLY)
-
92075B92075-261 DAMPER, RUBBERDAMPER, RUBBER
-
9209392093-1457 SEALSEAL
-
9214492144-1174 SPRING, SEAT HOOKSPRING, SEAT HOOK
-
9216092160-1744 DAMPER (US ONLY)DAMPER (US ONLY)
-
92160A92160-1846 DAMPERDAMPER
-
92160B92160-1946 DAMPERDAMPER
-
9216192161-1061 DAMPER, BATTERY (CANADA ONLY)DAMPER, BATTERY (CANADA ONLY)
-
130130J0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
235235C0516 SCREW-PAN-WP-CROS, 5X16SCREW-PAN-WP-CROS, 5X16
-
550550D2012 PIN-COTTER, 2.0X12PIN-COTTER, 2.0X12
-
554554A0600 PIN-SNAPPIN-SNAP
-
555555A0436 PIN-SPRINGPIN-SPRING
-
9220092200-1251 WASHER, 3.5X8X1WASHER, 3.5X8X1
