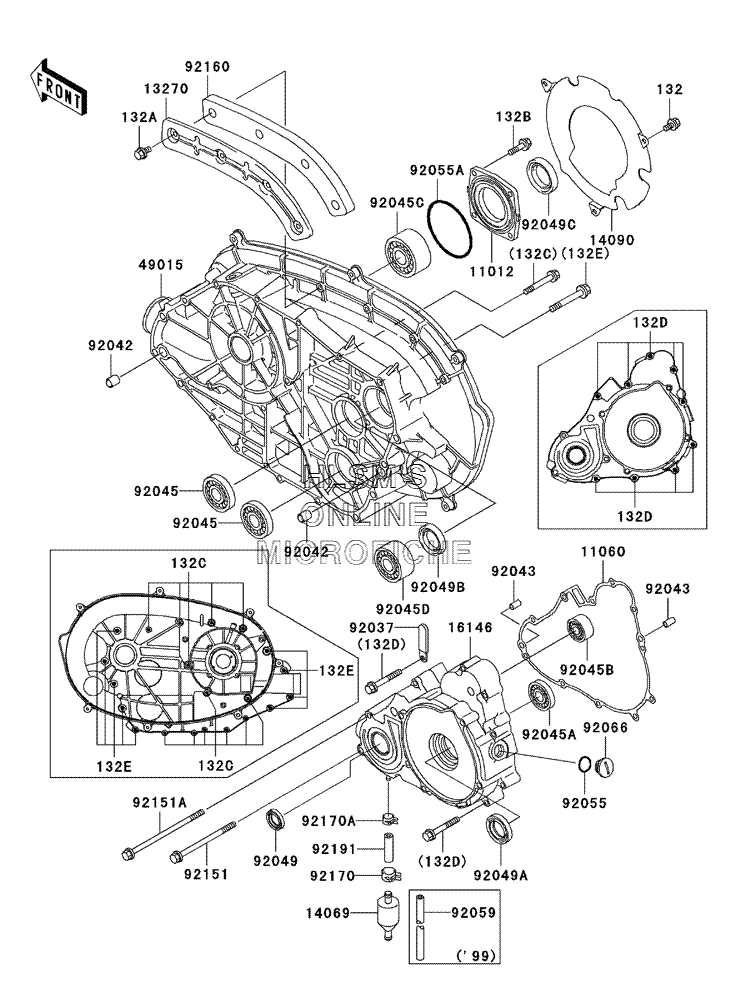

ENGINE COVER(S) для Kawasaki Prairie 400 (KVF400-D3) - 2001 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132Y0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132B132Y0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132C132Y0635 BOLT-FLANGED-SMALL, 6X35BOLT-FLANGED-SMALL, 6X35
-
132D132Y0640 BOLT-FLANGED-SMALL, 6X40BOLT-FLANGED-SMALL, 6X40
-
132E132Y0840 BOLT-FLANGED-SMALL, 8X40BOLT-FLANGED-SMALL, 8X40
-
1101211012-1982 CAPCAP
-
1106011060-1729 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1327013270-1737 PLATEPLATE
-
1406914069-1051 BREATHERBREATHER
-
1409014090-1960 COVERCOVER
-
1614616146-1206 COVER-ASSY., GENERATORCOVER-ASSY., GENERATOR
-
4901549015-1056 COVER-CRANKCASECOVER-CRANKCASE
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204292042-031 PIN, DOWEL, 12X14PIN, DOWEL, 12X14
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1142 BEARING-BALL, TMB304CCMBEARING-BALL, TMB304CCM
-
92045A92045-1178 BEARING-BALLBEARING-BALL
-
92045B92045-1327 BEARING-BALL, 5201BEARING-BALL, 5201
-
92045C92045-1328 BEARING-BALL, 5207C2BEARING-BALL, 5207C2
-
92045D92045-1329 BEARING-BALL, 5206BEARING-BALL, 5206
-
9204992049-1259 SEAL-OIL, SC12 28.555SEAL-OIL, SC12 28.555
-
92049A92049-1386 SEAL-OILSEAL-OIL
-
92049B92049-1451 SEAL-OIL, TC30458SEAL-OIL, TC30458
-
92049C92049-1452 SEAL-OIL, TC 35X50X8SEAL-OIL, TC 35X50X8
-
9205592055-1146 RING-O, 20X2RING-O, 20X2
-
92055A92055-1230 RING-O, 79.5MMRING-O, 79.5MM
-
9206692066-1163 PLUG, COVERPLUG, COVER
-
9215192151-1140 BOLT, 6X85BOLT, 6X85
-
92151A92151-1141 BOLT, 6X110BOLT, 6X110
-
9216092160-1793 DAMPERDAMPER
-
9217092170-1492 CLAMPCLAMP
-
92170A92170-1493 CLAMPCLAMP
-
9219192191-1427 TUBETUBE
