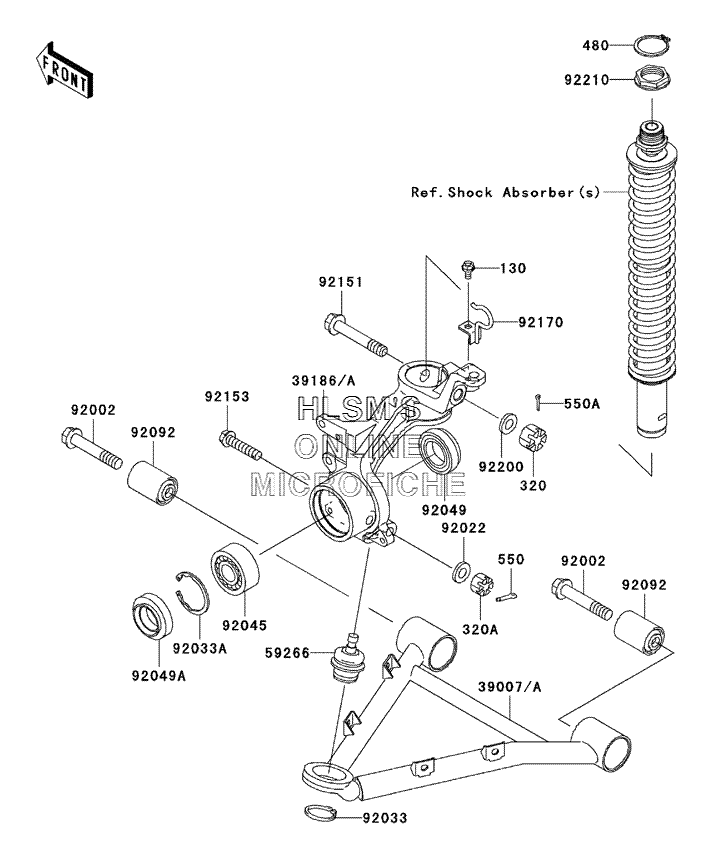

SUSPENSION для Kawasaki Prairie 400 (KVF400-D3) - 2001 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
320320G1200 NUT-CASTLENUT-CASTLE
-
320A320H1000 NUT-CASTLENUT-CASTLE
-
480480J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
-
3900739007-1290 ARM-SUSPENSION FRONT (LOWER/LEFT)ARM-SUSPENSION FRONT (LOWER/LEFT)
-
39007A39007-1291 ARM-SUSPENSION FRONT (LOWER/RIGHT)ARM-SUSPENSION FRONT (LOWER/RIGHT)
-
3918639186-0008 KNUCKLE, FRONT (LEFT)KNUCKLE, FRONT (LEFT)
-
39186A39186-0009 KNUCKLE, FRONT (RIGHT)KNUCKLE, FRONT (RIGHT)
-
5926659266-1115 JOINT-BALLJOINT-BALL
-
9200292002-1861 BOLT, FLANGED, 12X67BOLT, FLANGED, 12X67
-
9202292022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9203392033-1218 RING-SNAP, 30MMRING-SNAP, 30MM
-
92033A92033-1274 RING-SNAP, 55MMRING-SNAP, 55MM
-
9204592045-1222 BEARING-BALL, DAC3055C2RKCD3BEARING-BALL, DAC3055C2RKCD3
-
9204992049-1476 SEAL-OIL, MT038N1SEAL-OIL, MT038N1
-
92049A92049-1477 SEAL-OIL, SDD04 38 55 8SEAL-OIL, SDD04 38 55 8
-
9209292092-1076 BUSHING-RUBBERBUSHING-RUBBER
-
9215192151-1101 BOLT, FLANGED, 12X65.5BOLT, FLANGED, 12X65.5
-
9215392153-0579 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
9217092170-1720 CLAMP, HOSECLAMP, HOSE
-
9220092200-1004 WASHER, 12.3X23X2.3WASHER, 12.3X23X2.3
-
9221092210-1066 NUT, 35MMNUT, 35MM
