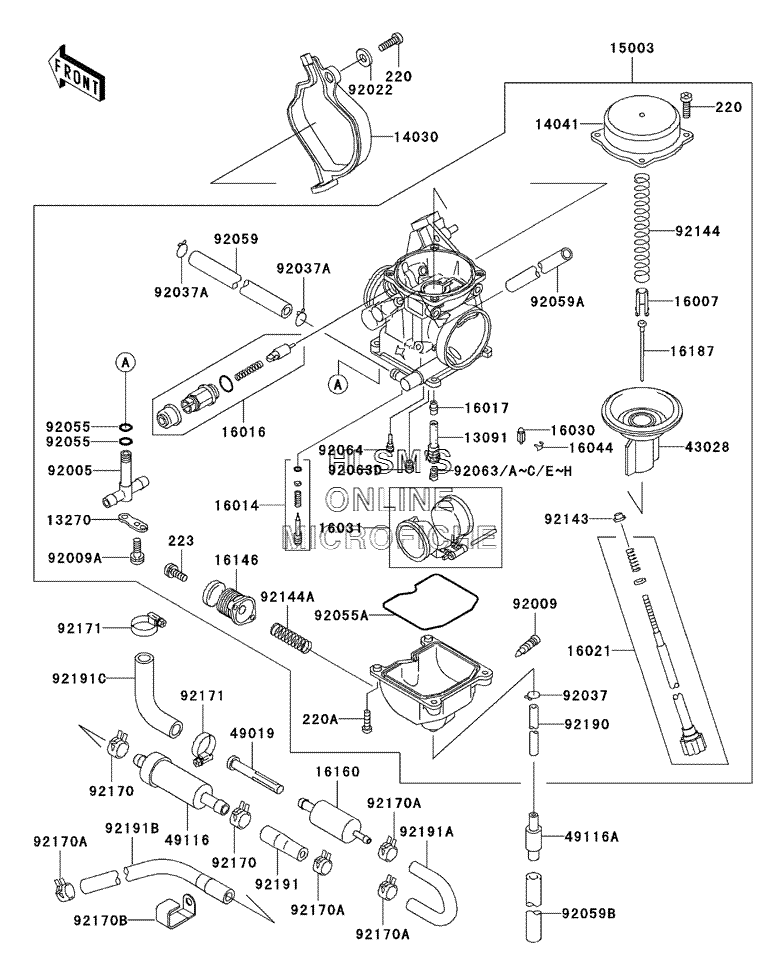

CARBURETOR для Kawasaki Prairie 400 4x4 (KVF400-C4) - 2002 года выпуска
-
№АртикулНазвание
-
1309113091-1259 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1327013270-1063 PLATE, FITTING STAYPLATE, FITTING STAY
-
1403014030-1054 COVER-CARBURETORCOVER-CARBURETOR
-
1404114041-1061 COVER-COMP, MIXING, INSIDECOVER-COMP, MIXING, INSIDE
-
1500315003-1446 CARBURETOR-ASSYCARBURETOR-ASSY
-
1600716007-1134 SEAT-SPRING, VALVESEAT-SPRING, VALVE
-
1601416014-1081 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1101 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1400 JET-NEEDLE, #6JET-NEEDLE, #6
-
1602116021-1213 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1614616146-1129 COVER-ASSY, PUMPCOVER-ASSY, PUMP
-
1616016160-1151 BODY, FILTERBODY, FILTER
-
1618716187-1092 NEEDLE-JET, N6OINEEDLE-JET, N6OI
-
4302843028-1081 DIAPHRAGM, VALVEDIAPHRAGM, VALVE
-
4901949019-1068 FILTER-WATERFILTER-WATER
-
4911649116-1081 VALVE-ASSYVALVE-ASSY
-
49116A49116-1126 VALVE-ASSYVALVE-ASSY
-
9200592005-1235 FITTINGFITTING
-
9200992009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
92009A92009-1713 SCREWSCREW
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9203792037-1201 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1531 CLAMP, TUBECLAMP, TUBE
-
9205592055-1427 RING-O, 4.5X1.5RING-O, 4.5X1.5
-
92055A92055-1518 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
9205992059-1538 TUBE, 6.5X11.5X200TUBE, 6.5X11.5X200
-
92059A92059-1598 TUBE, 6.5X9.5X260TUBE, 6.5X9.5X260
-
92059B92059-1736 TUBE, 7X10X100TUBE, 7X10X100
-
9206392063-1013 JET-MAIN, #140 (OPT)JET-MAIN, #140 (OPT)
-
92063A92063-1015 JET-MAIN, #138 (OPT)JET-MAIN, #138 (OPT)
-
92063B92063-1016 JET-MAIN, #142 (OPT)JET-MAIN, #142 (OPT)
-
92063C92063-1017 JET-MAIN, #145 (OPT)JET-MAIN, #145 (OPT)
-
92063D92063-1023 JET-MAIN, #85JET-MAIN, #85
-
220220B0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
220A220D0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
-
223223C0412 SCREW-PAN-WS-CROS, 4X12SCREW-PAN-WS-CROS, 4X12
-
92063E92063-1324 JET-MAIN, #148 (OPT)JET-MAIN, #148 (OPT)
-
92063F92063-1330 JET-MAIN, #150JET-MAIN, #150
-
92063G92063-1331 JET-MAIN, #152 (OPT)JET-MAIN, #152 (OPT)
-
92063H92063-1332 JET-MAIN, #155 (OPT)JET-MAIN, #155 (OPT)
-
9206492064-1101 JET-PILOT, #35JET-PILOT, #35
-
9214392143-1589 COLLARCOLLAR
-
9214492144-1066 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
92144A92144-1672 SPRING, PUMPSPRING, PUMP
-
9217092170-1492 CLAMPCLAMP
-
92170A92170-1493 CLAMPCLAMP
-
92170B92170-1863 CLAMPCLAMP
-
9217192171-1158 CLAMPCLAMP
-
9219092190-1557 TUBE, 4.5X8X330TUBE, 4.5X8X330
-
9219192191-1427 TUBETUBE
-
92191A92191-1428 TUBETUBE
-
92191B92191-1429 TUBETUBE
-
92191C92191-1430 TUBETUBE
