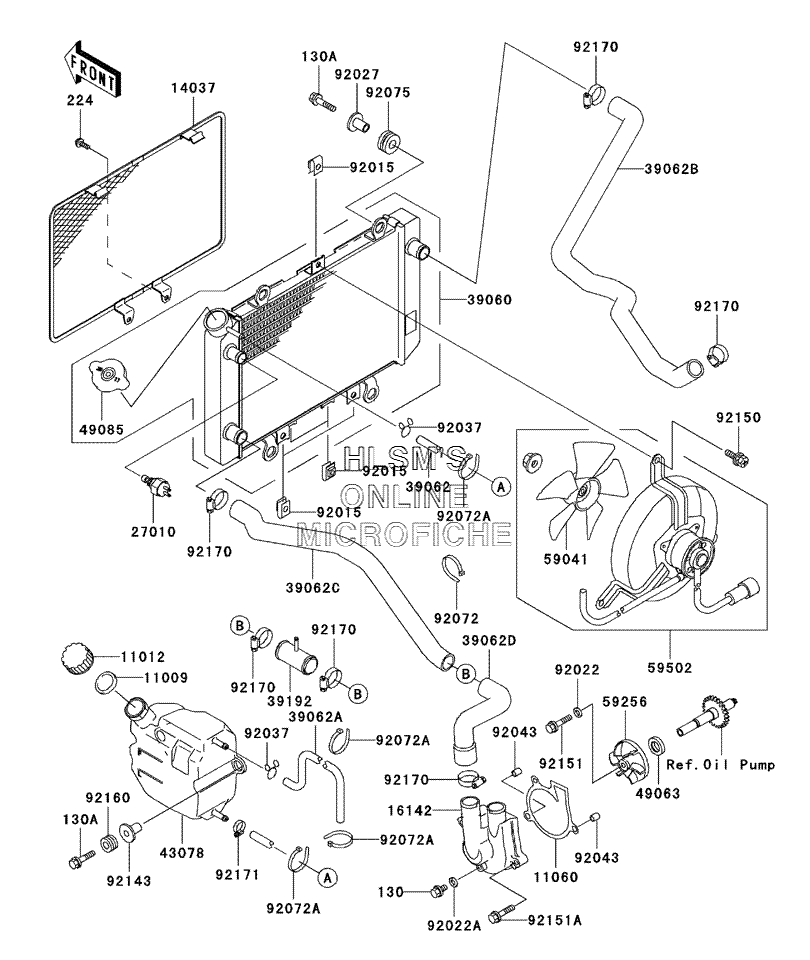

RADIATOR для Kawasaki Prairie 400 4x4 (KVF400-C4) - 2002 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130J0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
224224C0612 SCREW-PAN-WP-CROS, 6X12SCREW-PAN-WP-CROS, 6X12
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1106011060-1730 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
1403714037-1221 SCREENSCREEN
-
1614216142-1137 COVER-PUMPCOVER-PUMP
-
2701027010-1202 SWITCH, FANSWITCH, FAN
-
3906039060-1150 RADIATORRADIATOR
-
3906239062-1675 HOSE-COOLING, 5.5X10.5X1500HOSE-COOLING, 5.5X10.5X1500
-
39062A39062-1676 HOSE-COOLING, 5.5X10.5X700HOSE-COOLING, 5.5X10.5X700
-
39062B39062-1701 HOSE-COOLING, HEAD- RADIATORHOSE-COOLING, HEAD- RADIATOR
-
39062C39062-1740 HOSE-COOLINGHOSE-COOLING
-
39062D39062-1741 HOSE-COOLINGHOSE-COOLING
-
3919239192-1020 PIPE-WATERPIPE-WATER
-
4307843078-1163 RESERVOIRRESERVOIR
-
4906349063-1002 SEAL-MECHANICAL, WATER PUMPSEAL-MECHANICAL, WATER PUMP
-
4908549085-1066 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5904159041-1058 FANFAN
-
5925659256-1073 IMPELLERIMPELLER
-
5950259502-1123 FAN-ASSYFAN-ASSY
-
9201592015-1487 NUTNUT
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202792027-251 COLLAR, L=13.1COLLAR, L=13.1
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204392043-1302 PIN, DOWEL, 8X10PIN, DOWEL, 8X10
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-056 BAND, L=186BAND, L=186
-
9207592075-209 DAMPERDAMPER
-
9214392143-1353 COLLARCOLLAR
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
9215192151-1074 BOLT, 6X22BOLT, 6X22
-
92151A92151-1139 BOLT, 6X30BOLT, 6X30
-
9216092160-1167 DAMPERDAMPER
-
9217092170-1497 CLAMPCLAMP
-
9217192171-1128 CLAMPCLAMP
