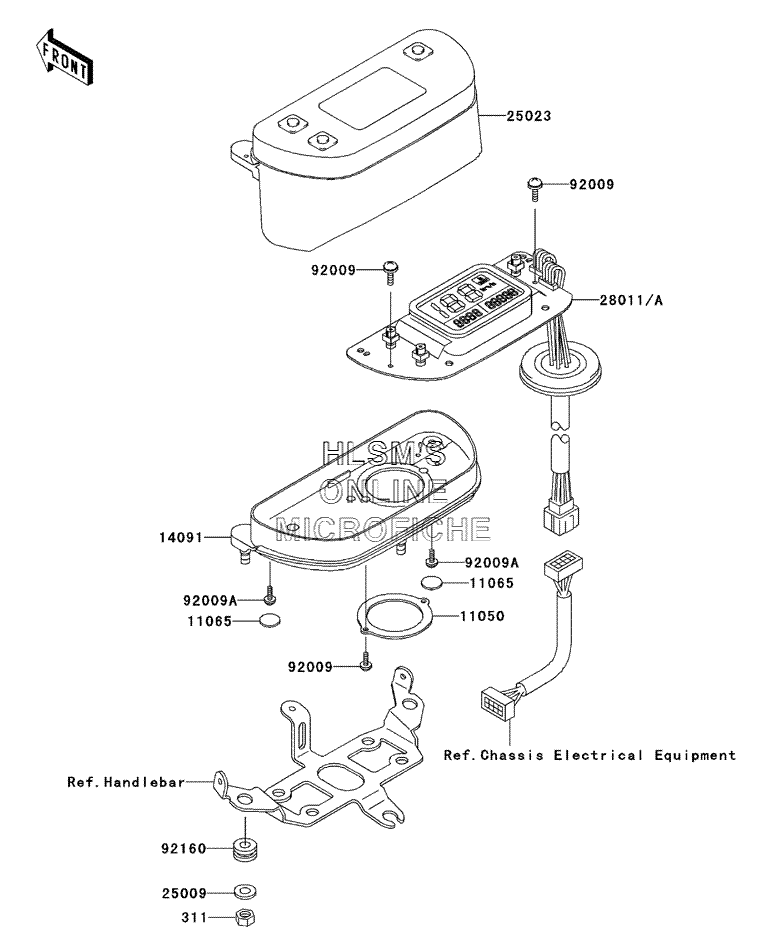

METER(S) для Kawasaki Prairie 400 4x4 (KVF400-C4) - 2002 года выпуска
-
№АртикулНазвание
-
311311C0500 NUT-HEXNUT-HEX
-
1105011050-1932 BRACKET, METERBRACKET, METER
-
1106511065-1110 CAPCAP
-
1409114091-1117 COVER, METER (LOWER)COVER, METER (LOWER)
-
2500925009-004 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
2502325023-1241-6Z COVER-METER CASE (UPPER) (F.BLACK)COVER-METER CASE (UPPER) (F.BLACK)
-
2801128011-1181 METER, MPH (US ONLY)METER, MPH (US ONLY)
-
28011A28011-1182 METER, KPH (CANADA ONLY)METER, KPH (CANADA ONLY)
-
9200992009-1028 SCREW, TAPPING, 3X12SCREW, TAPPING, 3X12
-
92009A92009-1663 SCREW, 6X18SCREW, 6X18
-
9216092160-1460 DAMPERDAMPER
