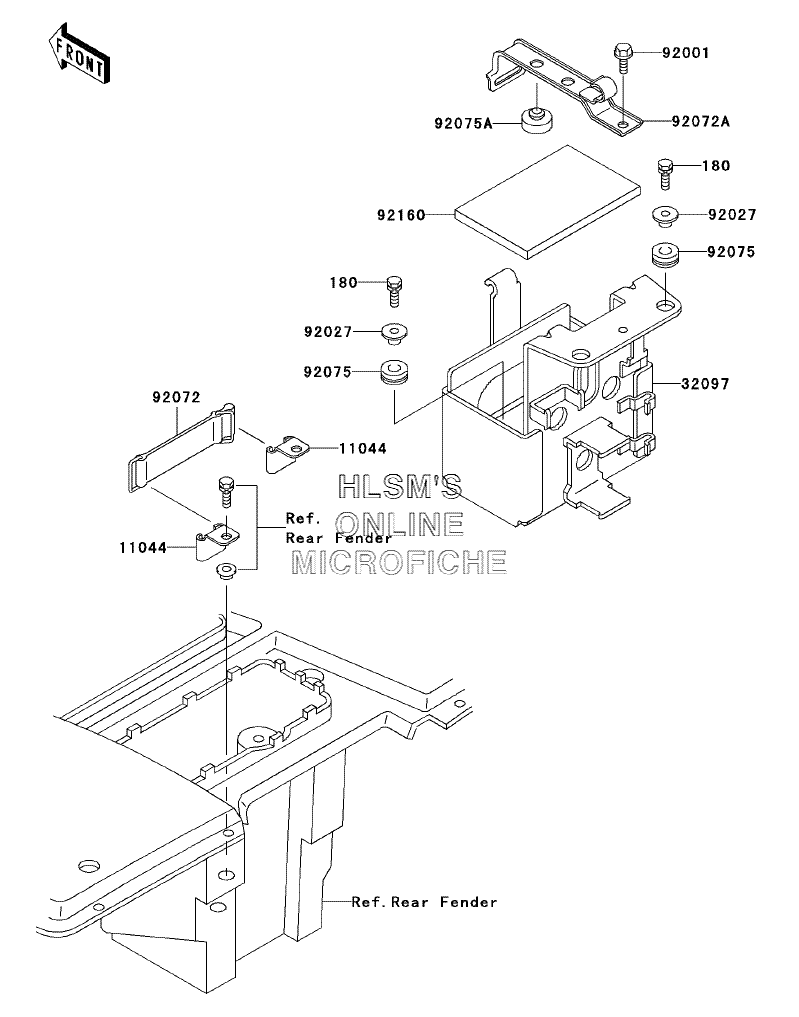

FRAME FITTINGS для Kawasaki Bayou 300 (KLF300-B16) - 2003 года выпуска
-
№АртикулНазвание
-
180180D0620 BOLT-UPSET-WSBOLT-UPSET-WS
-
1104411044-1535 BRACKET, TOOLBRACKET, TOOL
-
3209732097-1184 CASE-BATTERYCASE-BATTERY
-
9200192001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9202792027-1045 COLLAR, L=9.6COLLAR, L=9.6
-
9207292072-1044 BANDBAND
-
92072A92072-1230 BAND, BATTERYBAND, BATTERY
-
9207592075-1167 DAMPER, FANDAMPER, FAN
-
92075A92075-281 DAMPER, RUBBERDAMPER, RUBBER
-
9216092160-1100 DAMPER, BATTERYDAMPER, BATTERY
