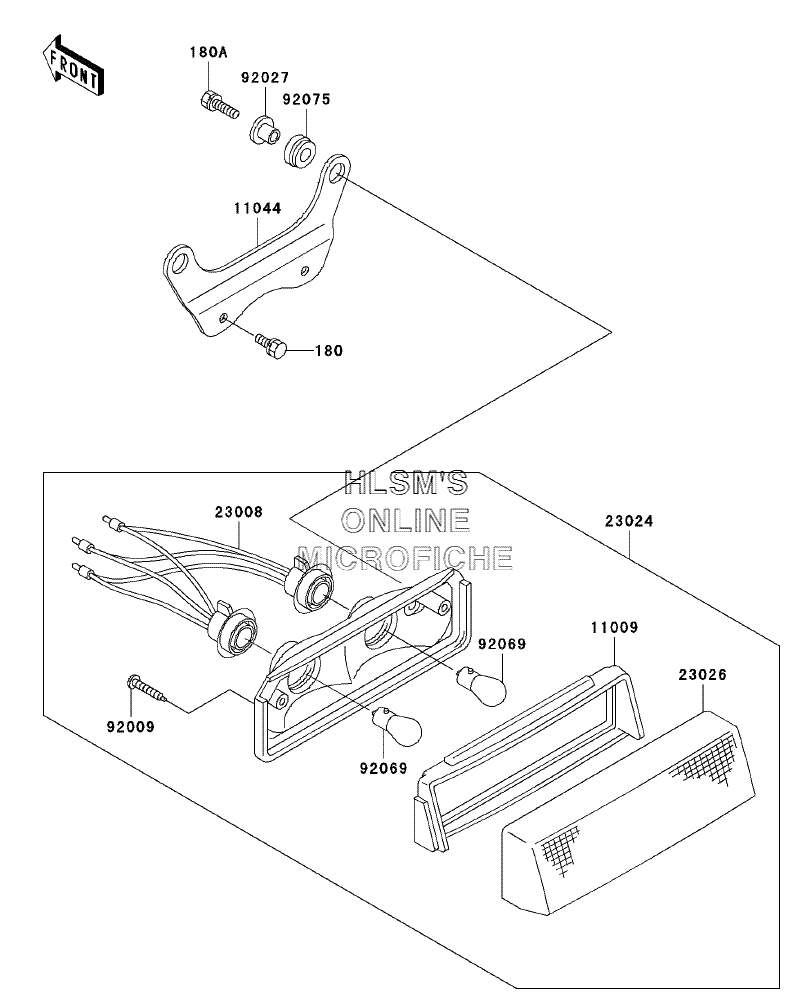

TAILLIGHT(S) для Kawasaki Bayou 300 (KLF300-B16) - 2003 года выпуска
-
№АртикулНазвание
-
180180D0612 BOLT-UPSET-WSBOLT-UPSET-WS
-
180A180D0620 BOLT-UPSET-WSBOLT-UPSET-WS
-
1100911009-1404 GASKET, TAIL LAMPGASKET, TAIL LAMP
-
1104411044-1367 BRACKET, TAIL LAMPBRACKET, TAIL LAMP
-
2300823008-1461 SOCKET-ASSY, TAIL LAMPSOCKET-ASSY, TAIL LAMP
-
2302423024-1134 LAMP-ASSY-TAILLAMP-ASSY-TAIL
-
2302623026-1056 LENS, TAIL LAMPLENS, TAIL LAMP
-
9200992009-1056 SCREW, TAPPING, 4X30SCREW, TAPPING, 4X30
-
9202792027-194 COLLAR, L=11.1COLLAR, L=11.1
-
9206992069-059 BULB, 12V 27/8WBULB, 12V 27/8W
-
9207592075-277 DAMPERDAMPER
