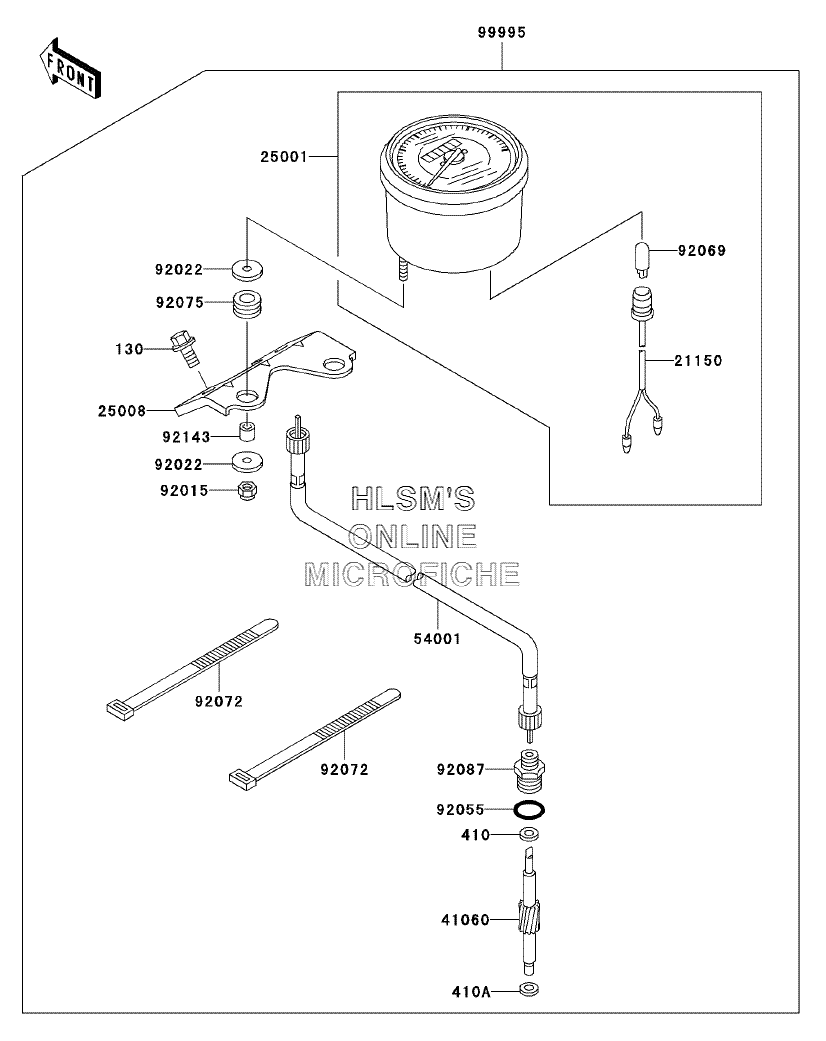

OPTIONAL PARTS (METER) для Kawasaki Bayou 300 (KLF300-B16) - 2003 года выпуска
-
№АртикулНазвание
-
130130J0812 BOLT-FLANGEDBOLT-FLANGED
-
410410B0500 WASHER-PLAIN-SMALL, 5MMWASHER-PLAIN-SMALL, 5MM
-
410A410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
2115021150-1054 CORD-ASSY, SPEEDOMETERCORD-ASSY, SPEEDOMETER
-
2500125001-1723 METER-ASSY, SPEED, MPHMETER-ASSY, SPEED, MPH
-
2500825008-1144 BRACKET-METERBRACKET-METER
-
4106041060-1113 GEAR-METER SCREW (10 TEETH)GEAR-METER SCREW (10 TEETH)
-
5400154001-1115 CABLE-SPEEDOMETERCABLE-SPEEDOMETER
-
9201592015-1221 NUT, LOCK, 5MMNUT, LOCK, 5MM
-
9202292022-1405 WASHER, 5.5X20X1.2WASHER, 5.5X20X1.2
-
9205592055-1141 RING-O, ID=13.8RING-O, ID=13.8
-
9206992069-1007 BULB, 12V 3.4W, T10BULB, 12V 3.4W, T10
-
9207292072-031 BAND, L=149BAND, L=149
-
9207592075-1409 DAMPERDAMPER
-
9208792087-1054 BUSHING-METER GEARBUSHING-METER GEAR
-
9214392143-1235 COLLAR, 5.5X10X8.5COLLAR, 5.5X10X8.5
-
9999599995-1008 KIT., METER, MPHKIT., METER, MPH
