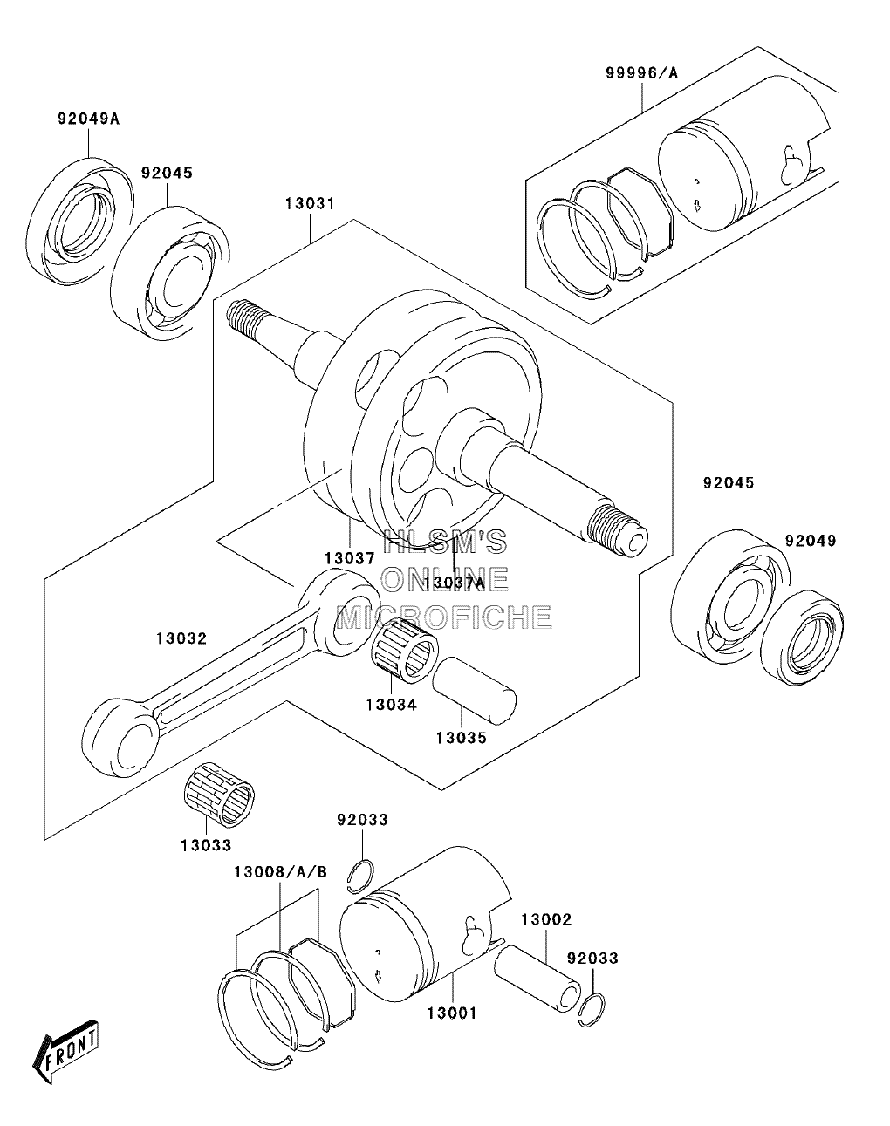

CRANKSHAFT для Kawasaki KFX50 (KSF50-A1) - 2003 года выпуска

№

Артикул

Название
13001

13001-S004 PISTON-ENGINE

PISTON-ENGINE

9 820 ₽
13002

13002-S004 PIN-PISTON, PISTON

PIN-PISTON, PISTON

1 260 ₽
13008

13008-S004 RING-SET-PISTON (STD)

RING-SET-PISTON (STD)

4 340 ₽
13008A

13008-S009 RING-SET-PISTON (O/S 0.50) (OPT)

RING-SET-PISTON (O/S 0.50) (OPT)

4 480 ₽
13008B

13008-S010 RING-SET-PISTON (O/S 1.00) (OPT)

RING-SET-PISTON (O/S 1.00) (OPT)

4 480 ₽
13031

13031-S004 CRANKSHAFT-COMP

CRANKSHAFT-COMP

48 380 ₽
13032

13032-S004 ROD-CONNECTING

ROD-CONNECTING

9 940 ₽
13033

13033-S001 BEARING-SMALL END

BEARING-SMALL END

1 730 ₽
13034

13034-S004 BEARING-BIG END

BEARING-BIG END

2 020 ₽
13035

13035-S004 PIN-CRANK, CRANK

PIN-CRANK, CRANK

2 480 ₽
13037

13037-S007 CRANKSHAFT (RIGHT)

CRANKSHAFT (RIGHT)

16 780 ₽
13037A

13037-S008 CRANKSHAFT (LEFT)

CRANKSHAFT (LEFT)

16 780 ₽
92033

92033-S024 RING-SNAP, PISTON PIN

RING-SNAP, PISTON PIN

280 ₽
92045

92045-S035 BEARING-BALL, 17X40X12

BEARING-BALL, 17X40X12

2 850 ₽
92049

92049-S028 SEAL-OIL, CRANKSHAFT OIL (LEFT)

SEAL-OIL, CRANKSHAFT OIL (LEFT)

1 450 ₽
92049A

92049-S029 SEAL-OIL, CRANKSHAFT OIL (RIGHT)

SEAL-OIL, CRANKSHAFT OIL (RIGHT)

970 ₽
99996

99996-S008 PISTON, O/S 0.50 (OPT)

PISTON, O/S 0.50 (OPT)

12 330 ₽
99996A

99996-S009 PISTON, O/S 1.00 (OPT)

PISTON, O/S 1.00 (OPT)

12 330 ₽
