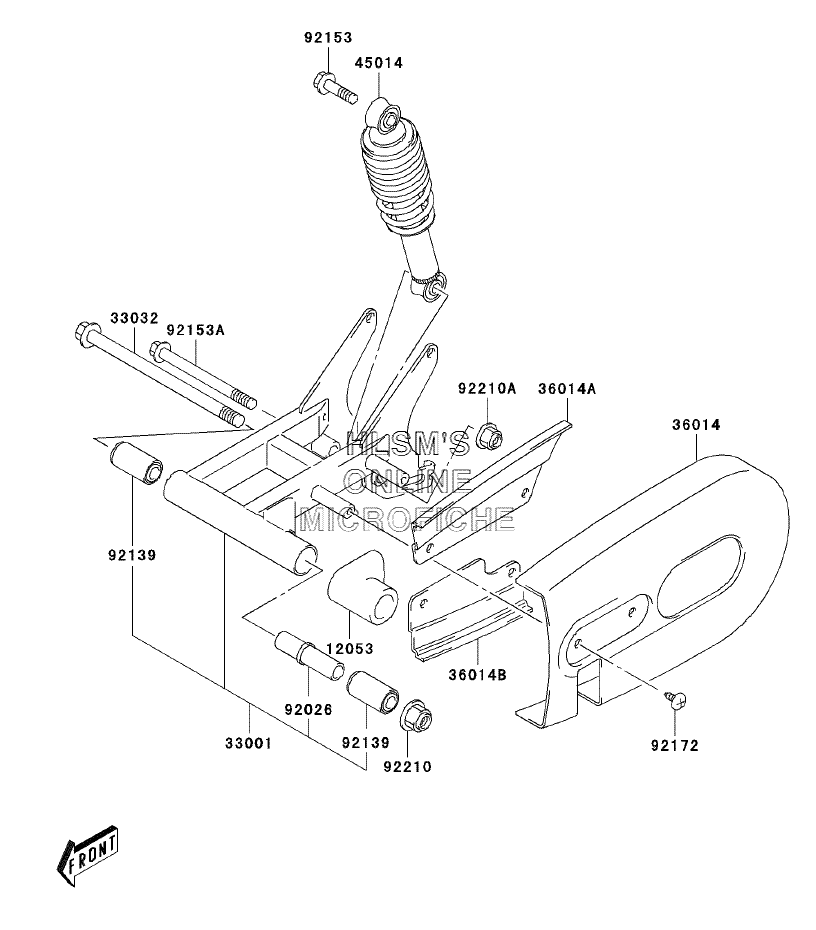

SUSPENSION - REAR для Kawasaki KFX50 (KSF50-A1) - 2003 года выпуска
-
№АртикулНазвание
-
1205312053-S013 GUIDE-CHAINGUIDE-CHAIN
-
3300133001-S005-503 ARM-COMP-SWING (BLACK)ARM-COMP-SWING (BLACK)
-
3303233032-S002 SHAFT-SWING ARMSHAFT-SWING ARM
-
3601436014-S002 CASE-CHAINCASE-CHAIN
-
36014A36014-S003 CASE-CHAINCASE-CHAIN
-
36014B36014-S004 CASE-CHAINCASE-CHAIN
-
4501445014-S021-535 SHOCKABSORBER (L.GREEN)SHOCKABSORBER (L.GREEN)
-
9202692026-S063 SPACERSPACER
-
9213992139-S015 BUSHINGBUSHING
-
9215392153-S033 BOLT, 10X37BOLT, 10X37
-
92153A92153-S204 BOLT, REAR SHOCKBOLT, REAR SHOCK
-
9217292172-S073 SCREW, 6X16SCREW, 6X16
-
9221092210-S007 NUTNUT
-
92210A92210-S030 NUTNUT
