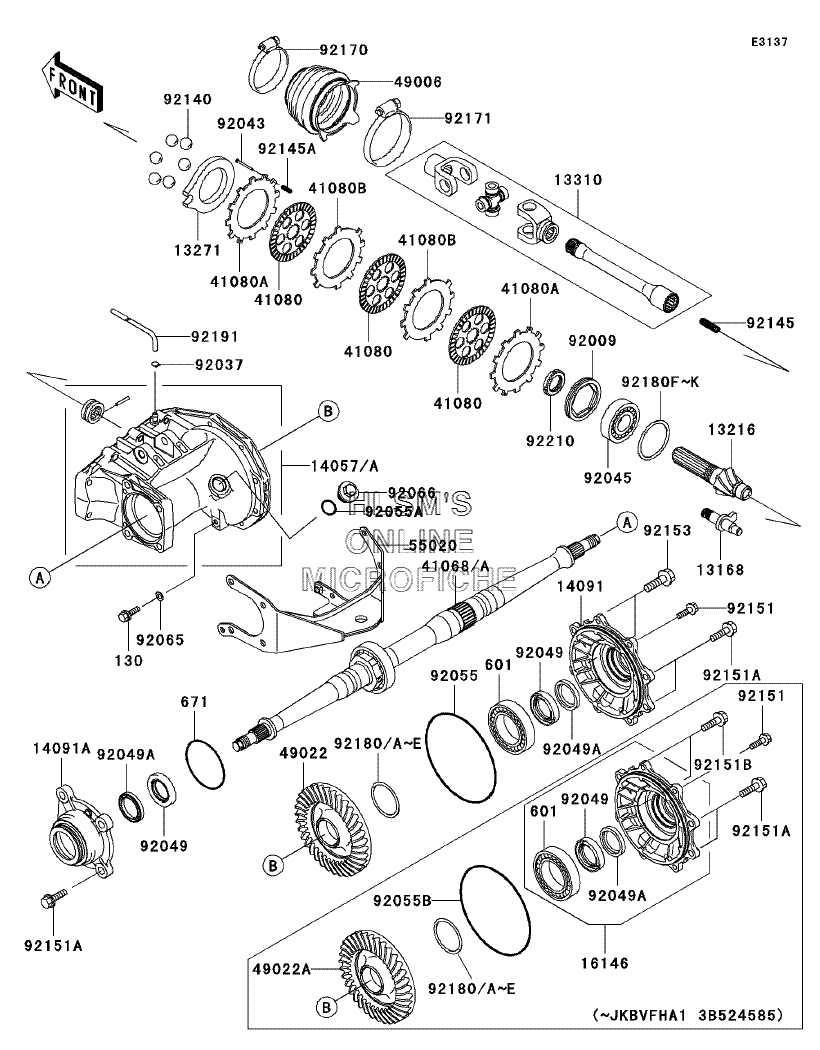

DRIVE SHAFT- REAR для Kawasaki Prairie 360 4x4 (KVF360-A1) - 2003 года выпуска
-
№АртикулНазвание
-
1316813168-1687 LEVER, BRAKELEVER, BRAKE
-
1321613216-1188 GEAR-COMP, REAR (8 TEETH)GEAR-COMP, REAR (8 TEETH)
-
1327113271-1367 PLATE, CAMPLATE, CAM
-
1331013310-1028 SHAFT-ASSY, REAR DRIVE SHAFTSHAFT-ASSY, REAR DRIVE SHAFT
-
1405714057-0001 CASE-COMP-GEAR (JKBVFHA1 3B524586 - )CASE-COMP-GEAR (JKBVFHA1 3B524586 - )
-
14057A14057-1005 CASE-COMP-GEAR ( - JKBVFHA1 3B524585)CASE-COMP-GEAR ( - JKBVFHA1 3B524585)
-
1409114091-0028 COVER (RIGHT) (JKBVFHA1 3B524586 - )COVER (RIGHT) (JKBVFHA1 3B524586 - )
-
14091A14091-1422 COVER (LEFT)COVER (LEFT)
-
1614616146-1211 COVER-ASSY (RIGHT) ( - JKBVFHA1 3B524585)COVER-ASSY (RIGHT) ( - JKBVFHA1 3B524585)
-
41068A41068-1456 AXLEAXLE
-
4108041080-1482 DISC, FRICTIONDISC, FRICTION
-
41080A41080-1483 DISC, PRESSUREDISC, PRESSURE
-
41080B41080-1484 DISC, SEPARATERDISC, SEPARATER
-
4900649006-1358 BOOT, REAR DRIVE SHAFTBOOT, REAR DRIVE SHAFT
-
4902249022-0003 GEAR-BEVEL, REAR (35 TEETH) (JKBVFHA1 3B524586 - )GEAR-BEVEL, REAR (35 TEETH) (JKBVFHA1 3B524586 - )
-
49022A49022-1191 GEAR-BEVEL, REAR (35 TEETH) ( - JKBVFHA1 3B524585)GEAR-BEVEL, REAR (35 TEETH) ( - JKBVFHA1 3B524585)
-
5502055020-0038 GUARD, REAR CASEGUARD, REAR CASE
-
9200992009-1667 SCREWSCREW
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
9204392043-1617 PIN, 3X35PIN, 3X35
-
9204592045-1391 BEARING-BALL, BX30-1C3BEARING-BALL, BX30-1C3
-
9204992049-0012 SEAL-OIL, HTC40X58X8SEAL-OIL, HTC40X58X8
-
92049A92049-0013 SEAL-OIL, SC40X52X7SEAL-OIL, SC40X52X7
-
9205592055-0004 RING-O, 156.3X3.7 (JKBVFHA1 3B524586 - )RING-O, 156.3X3.7 (JKBVFHA1 3B524586 - )
-
92055A92055-1136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
92055B92055-1631 RING-O, 158.5X3.70 ( - JKBVFHA1 3B524585)RING-O, 158.5X3.70 ( - JKBVFHA1 3B524585)
-
9206592065-023 GASKETGASKET
-
9206692066-1303 PLUGPLUG
-
9214092140-1064 BALL, D/O#12BALL, D/O#12
-
130130G0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
601601A6011 BEARING-BALLBEARING-BALL
-
671671D2585 O RINGO RING
-
9214592145-1300 SPRING, REAR DRIVE SHAFTSPRING, REAR DRIVE SHAFT
-
92145A92145-1301 SPRING, REAR BRAKESPRING, REAR BRAKE
-
9215192151-1908 BOLT, 8X30BOLT, 8X30
-
92151A92151-1909 BOLT, 10X35BOLT, 10X35
-
92151B92151-1909 BOLT, 10X35 ( - JKBVFHA1 3B524585)BOLT, 10X35 ( - JKBVFHA1 3B524585)
-
9215392153-0311 BOLT, 12X35 (JKBVFHA1 3B524586 - )BOLT, 12X35 (JKBVFHA1 3B524586 - )
-
9217092170-1763 CLAMPCLAMP
-
9217192171-1383 CLAMPCLAMP
-
9218092180-1417 SHIM, 55X64X0.15SHIM, 55X64X0.15
-
92180A92180-1418 SHIM, 55X64X0.20SHIM, 55X64X0.20
-
92180B92180-1419 SHIM, 55X64X0.50SHIM, 55X64X0.50
-
92180C92180-1420 SHIM, 55X64X0.80SHIM, 55X64X0.80
-
92180D92180-1421 SHIM, 55X64X1.00SHIM, 55X64X1.00
-
92180E92180-1422 SHIM, 55X64X1.20SHIM, 55X64X1.20
-
92180F92180-1423 SHIM, 60X72X0.15SHIM, 60X72X0.15
-
92180G92180-1424 SHIM, 60X72X0.20SHIM, 60X72X0.20
-
92180H92180-1425 SHIM, 60X72X0.50SHIM, 60X72X0.50
-
92180I92180-1426 SHIM, 60X72X0.80SHIM, 60X72X0.80
-
92180J92180-1427 SHIM, 60X72X1.00SHIM, 60X72X1.00
-
92180K92180-1428 SHIM, 60X72X1.20SHIM, 60X72X1.20
-
9219192191-1595 TUBE, BREATHERTUBE, BREATHER
-
9221092210-1294 NUT, 30MMNUT, 30MM
