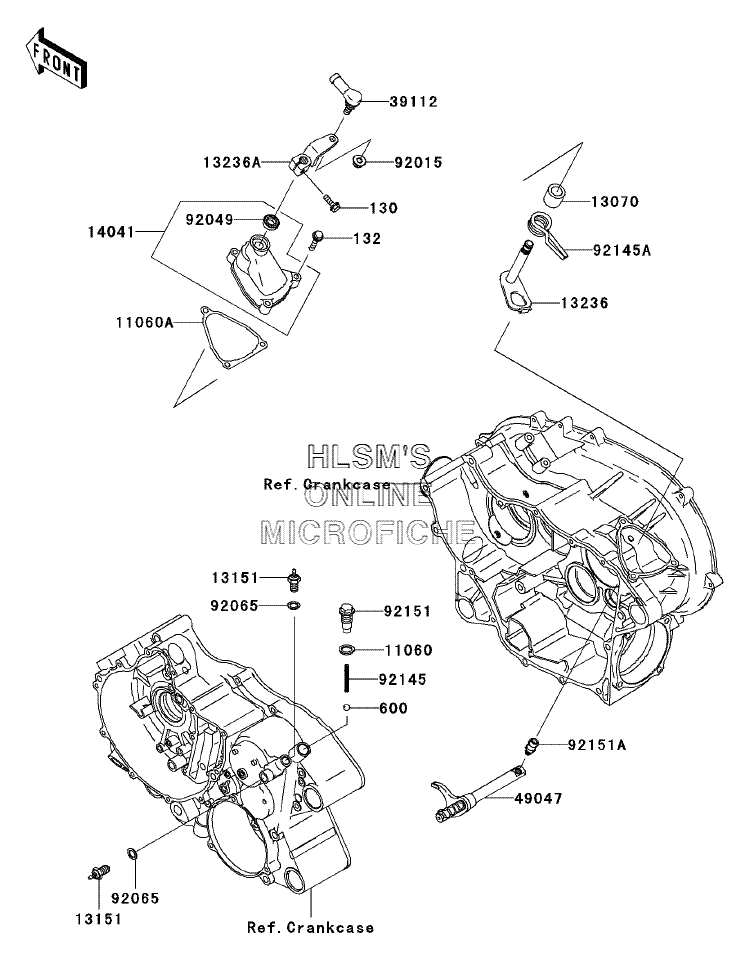

GEAR CHANGE MECHANISM для Kawasaki Prairie 360 4x4 (KVF360-A1) - 2003 года выпуска
-
№АртикулНазвание
-
130130Z0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
132132Y0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
600600A1000 BALL-STEEL, 5/16"BALL-STEEL, 5/16"
-
1106011060-1287 GASKET, 14X20X2GASKET, 14X20X2
-
11060A11060-1956 GASKET, CHANGE LEVER COVERGASKET, CHANGE LEVER COVER
-
1307013070-1352 GUIDEGUIDE
-
1315113151-1080 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1323613236-0051 LEVER-COMP, CHANGELEVER-COMP, CHANGE
-
13236A13236-1400 LEVER-COMP, CHANGE LEVERLEVER-COMP, CHANGE LEVER
-
1404114041-1136 COVER-COMP, CHANGE LEVERCOVER-COMP, CHANGE LEVER
-
3911239112-1080 RODEND-TIE, CHANGE LEVERRODEND-TIE, CHANGE LEVER
-
4904749047-1104 ROD-SHIFTROD-SHIFT
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9204992049-1271 SEAL-OIL, TB12205.5SEAL-OIL, TB12205.5
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9214592145-1297 SPRING, CHANGE POSITIONSPRING, CHANGE POSITION
-
92145A92145-1299 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9215192151-1687 BOLT, CHANGE POSITIONBOLT, CHANGE POSITION
-
92151A92151-1699 BOLT, SHIFT RODBOLT, SHIFT ROD
