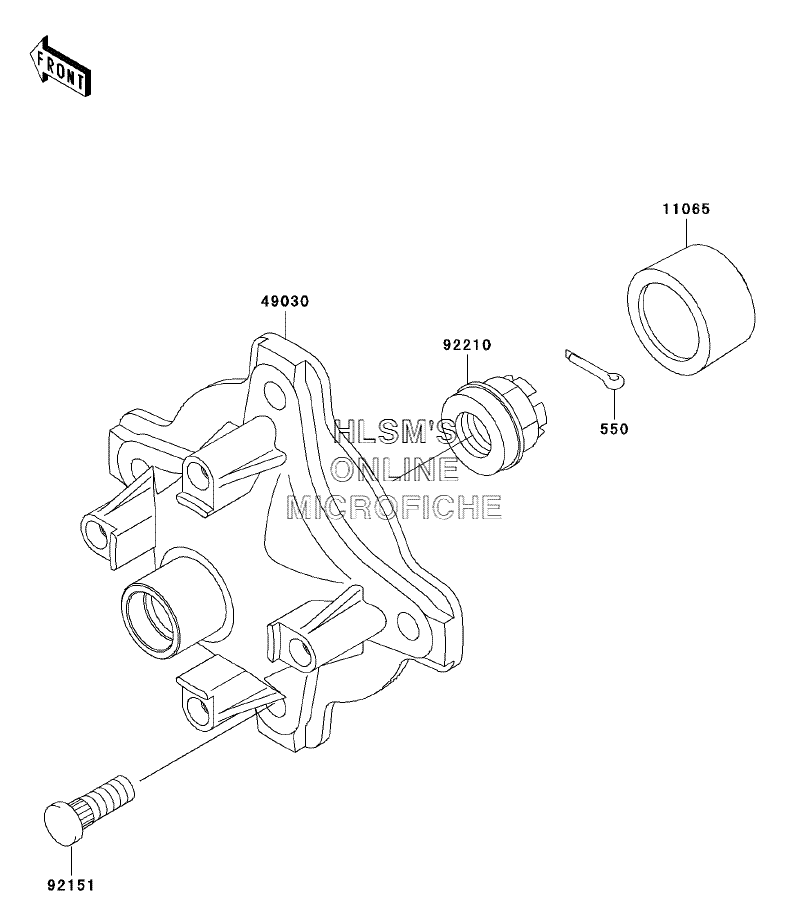

FRONT HUB для Kawasaki Prairie 360 4x4 (KVF360-A1) - 2003 года выпуска
-
№АртикулНазвание
-
550550D4025 PIN-COTTER, 4.0X25PIN-COTTER, 4.0X25
-
1106511065-1153 CAP, WHEELCAP, WHEEL
-
4903049030-7508 HUB, FRONTHUB, FRONT
-
9215192151-1392 BOLT, 10X29.5BOLT, 10X29.5
-
9221092210-1349 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
Все узлы модели:
- AIR CLEANER
- BATTERY (OPTIONAL) (CANADA ONLY)
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S)/TENSIONER
- CARBURETOR
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CONTROL
- CONVERTER COVER/DRIVE BELT
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER/PISTON(S)
- DECALS (GREEN)
- DECALS (RED)
- DRIVE CONVERTER
- DRIVE SHAFT- PROPELLER
- DRIVE SHAFT- REAR
- DRIVE SHAFT-FRONT (-JKBVFHA1 4B531603)
- DRIVEN CONVERTER
- ENGINE COVER(S)
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT BEVEL GEAR
- • FRONT HUB
- FUEL TANK
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S)
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH
- IGNITION SYSTEM
- LABELS
- METER(S) (CANADA ONLY)
- MUFFLER(S)
- OIL COOLER
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS (CONVERTER)
- OPTIONAL PARTS (METER(S) (US ONLY)
- OWNER'S TOOLS
- PUBLICATIONS
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- SIDE COVERS
- STARTER - RECOIL
- STARTER MOTOR
- SUSPENSION
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S) (JKBVFHA1 3B524151 AND ABOVE)
- TAILLIGHT(S) (UP TO JKBVFHA1 3B524150)
- TRANSMISSION
- VALVE(S)
- WHEELS/TIRES
