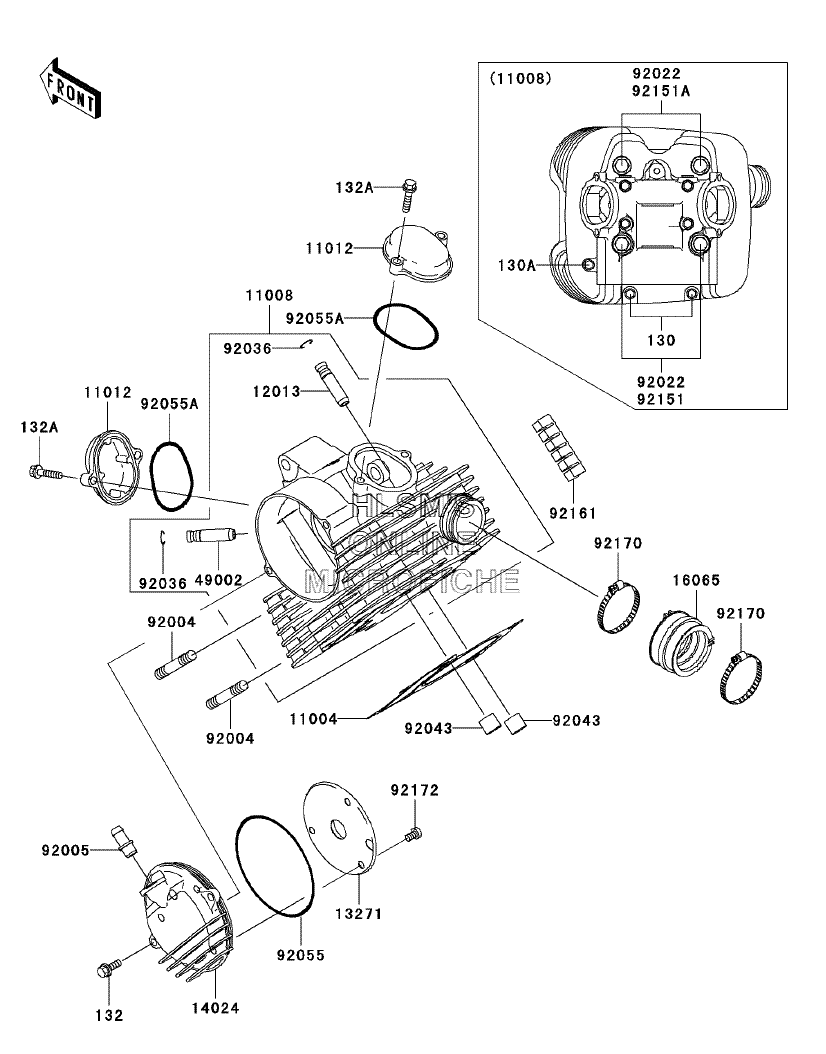

CYLINDER HEAD для Kawasaki Prairie 360 (KVF360-B1) - 2003 года выпуска
-
№АртикулНазвание
-
130130Z06130 BOLT-FLANGED, 6X130BOLT-FLANGED, 6X130
-
130A130Z0690 BOLT-FLANGED, 6X90BOLT-FLANGED, 6X90
-
132132Y0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
132A132Y0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
1100411004-1379 GASKET-HEADGASKET-HEAD
-
1100811008-1415 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1101211012-1486 CAP, ROCKER ARMCAP, ROCKER ARM
-
1201312013-009 GUIDE-VALVE, INTAKEGUIDE-VALVE, INTAKE
-
1327113271-1863 PLATE, SPROCKETPLATE, SPROCKET
-
1402414024-1060 COVER, CAMSHAFTCOVER, CAMSHAFT
-
1606516065-1379 HOLDER-CARBURETORHOLDER-CARBURETOR
-
4900249002-1002 GUIDE-VALVE, EXHAUSTGUIDE-VALVE, EXHAUST
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
9200592005-1124 FITTING, BREATHER PIPEFITTING, BREATHER PIPE
-
9202292022-1720 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
9203692036-023 RING-SNAP, VALVE GUIDERING-SNAP, VALVE GUIDE
-
9204392043-1608 PIN, 13X16X14PIN, 13X16X14
-
9205592055-107 RING-O, 99X3.1RING-O, 99X3.1
-
92055A92055-112 RING-O, 53.5X2.6RING-O, 53.5X2.6
-
9215192151-1961 BOLT, 11X245BOLT, 11X245
-
92151A92151-1962 BOLT, 11X220BOLT, 11X220
-
9216192161-1312 DAMPER, CYLINDERDAMPER, CYLINDER
-
9217092170-1674 CLAMPCLAMP
-
9217292172-1076 SCREW, 6X10SCREW, 6X10
