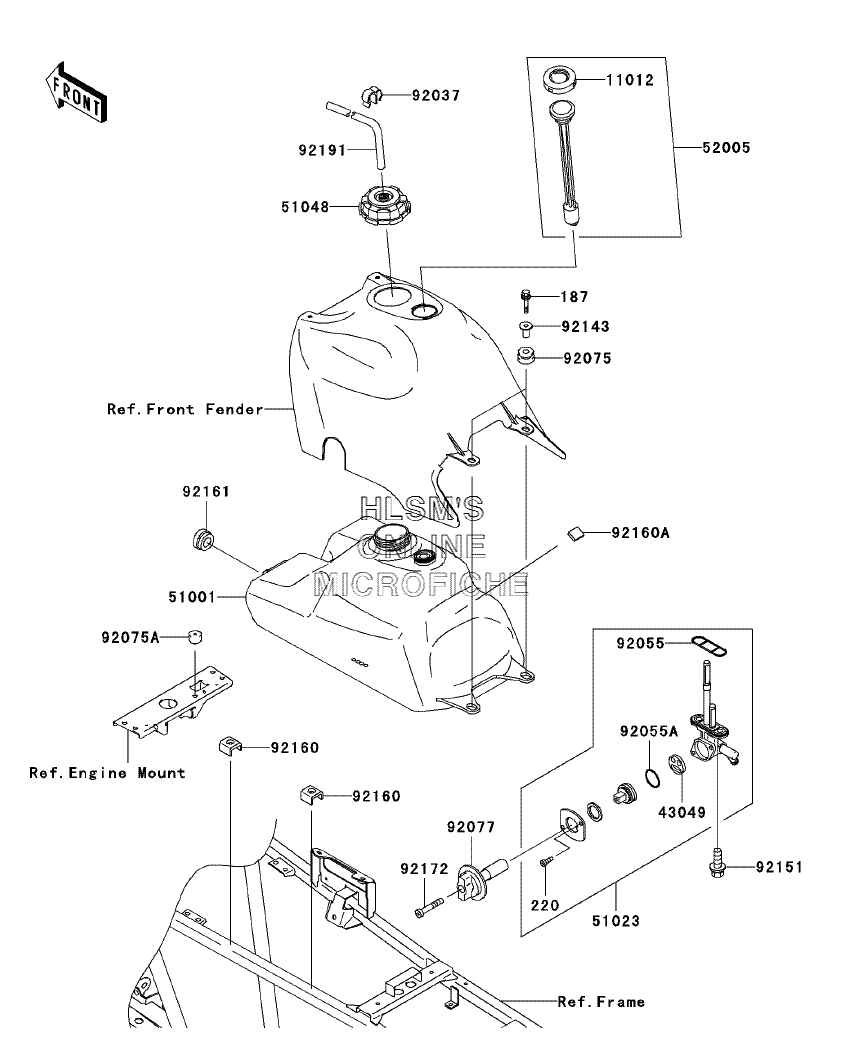

FUEL TANK для Kawasaki Prairie 360 (KVF360-B1) - 2003 года выпуска
-
№АртикулНазвание
-
187187G0635 BOLT-UPSET-WSP, 6X35BOLT-UPSET-WSP, 6X35
-
220220B0308 SCREW-PAN-CROS, 3X8SCREW-PAN-CROS, 3X8
-
1101211012-1627 CAP, FUEL GAUGECAP, FUEL GAUGE
-
4304943049-1091 PACKING, TAP VALVEPACKING, TAP VALVE
-
5100151001-7502 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-1402 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104851048-1133 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
5200552005-7501 GAUGE, FUELGAUGE, FUEL
-
9203792037-1458 CLAMPCLAMP
-
9205592055-1112 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
92055A92055-1419 RING-O, TAP LEVERRING-O, TAP LEVER
-
9207592075-1787 DAMPERDAMPER
-
92075A92075-1876 DAMPERDAMPER
-
9207792077-1098 KNOB, FUEL TAPKNOB, FUEL TAP
-
9214392143-1100 COLLAR, L=19.6COLLAR, L=19.6
-
9215192151-1198 BOLT, 6X14BOLT, 6X14
-
9216092160-1773 DAMPERDAMPER
-
92160A92160-3864 DAMPER, 25X25DAMPER, 25X25
-
9216192161-7502 DAMPERDAMPER
-
9217292172-1073 SCREW, 4X25SCREW, 4X25
-
9219192191-1107 TUBE, 5X9.4X450TUBE, 5X9.4X450
