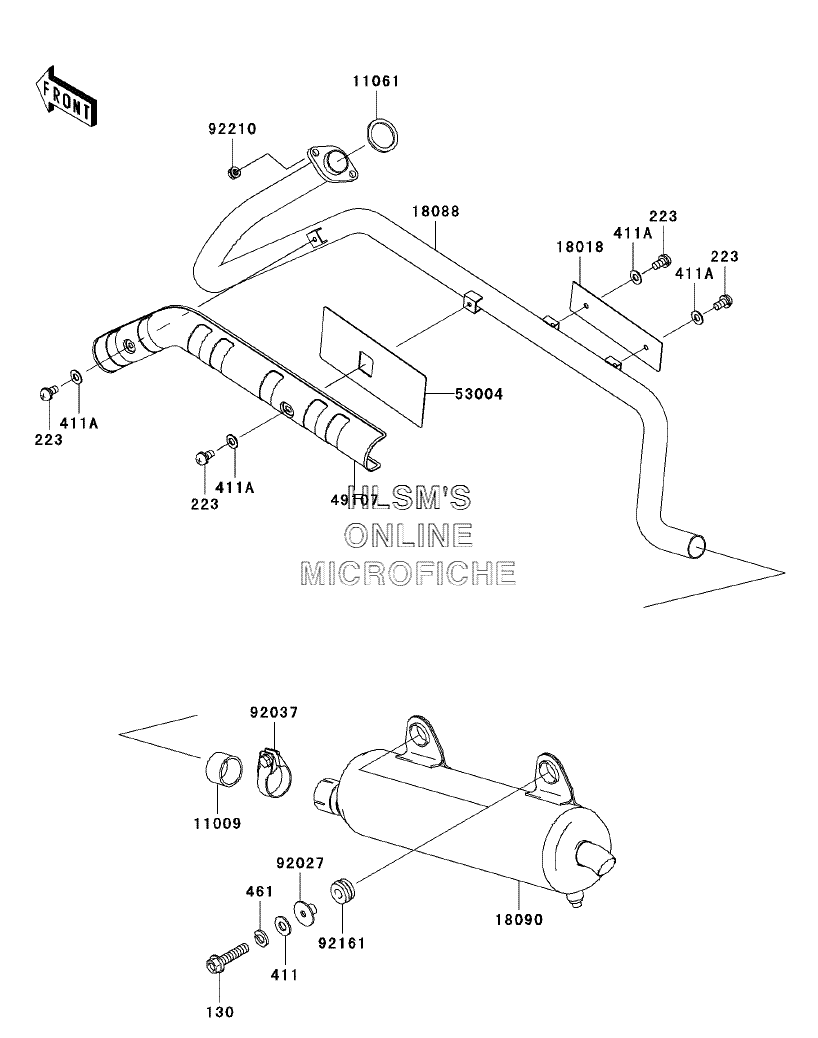

MUFFLER(S) для Kawasaki Prairie 360 (KVF360-B1) - 2003 года выпуска
-
№АртикулНазвание
-
130130Z0835 BOLT-FLANGED, 8X35BOLT-FLANGED, 8X35
-
223223C0612 SCREW-PAN-WS-CROS, 6X12SCREW-PAN-WS-CROS, 6X12
-
411411B0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
411A411F0600 WASHER-PLAIN, 6MM (BLACK)WASHER-PLAIN, 6MM (BLACK)
-
461461F0800 WASHER-SPRING, 8MMWASHER-SPRING, 8MM
-
1100911009-1667 GASKET, EXHAUST PIPE CONNECTINGGASKET, EXHAUST PIPE CONNECTING
-
1106111061-1053 GASKET, EXHAUSTGASKET, EXHAUST
-
1801818018-1135 PLATE-HEAT GUARD, EXHAUST PIPEPLATE-HEAT GUARD, EXHAUST PIPE
-
1808818088-1215 PIPE-EXHAUSTPIPE-EXHAUST
-
1809018090-1954 BODY-COMP-MUFFLERBODY-COMP-MUFFLER
-
4910749107-1222 COVER-EXHAUST PIPECOVER-EXHAUST PIPE
-
5300453004-1181 MATMAT
-
9202792027-1981 COLLAR, MUFFLERCOLLAR, MUFFLER
-
9203792037-1349 CLAMP, 42MMCLAMP, 42MM
-
9216192161-1292 DAMPER, MUFFLERDAMPER, MUFFLER
-
9221092210-1242 NUT, 8MMNUT, 8MM
