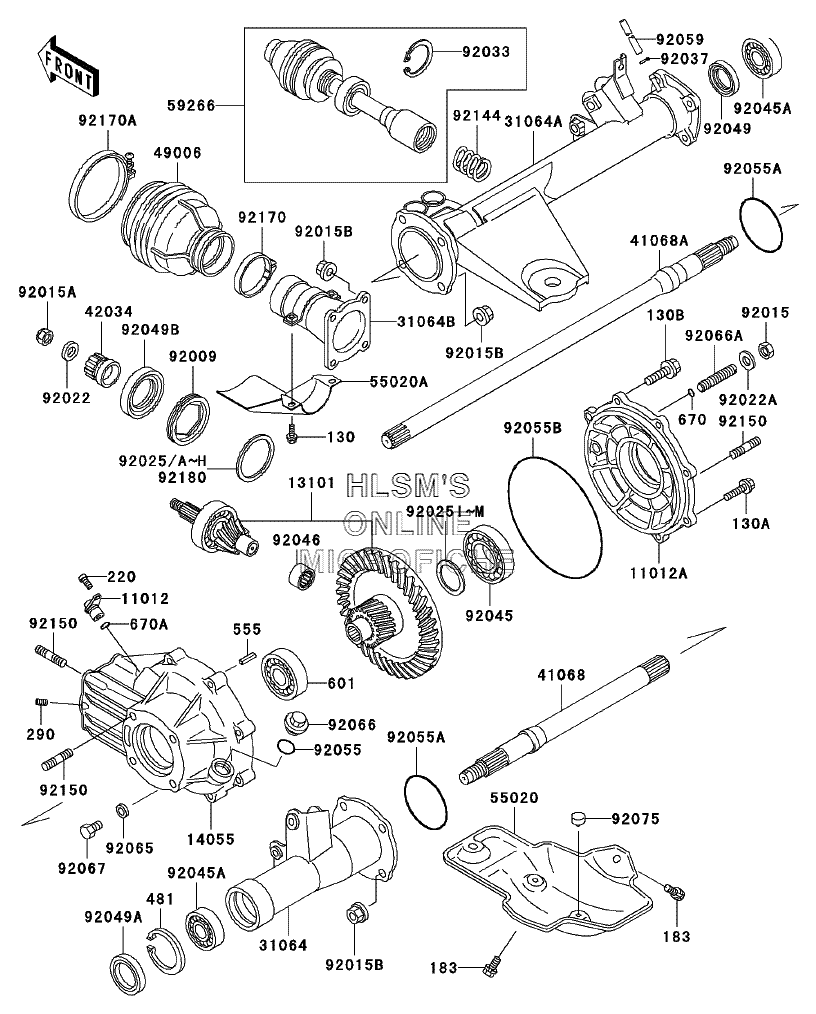

DRIVE SHAFT (REAR) для Kawasaki Bayou 300 4x4 (KLF300-C16) - 2004 года выпуска
-
№АртикулНазвание
-
1101211012-1650 CAP, METER GEARCAP, METER GEAR
-
11012A11012-1651 CAP, GEAR CASECAP, GEAR CASE
-
1310113101-5084 GEAR-ASSY, BEVELGEAR-ASSY, BEVEL
-
1405514055-1089 CASE-GEAR (REAR)CASE-GEAR (REAR)
-
3106431064-1098 PIPE-COMP (LEFT)PIPE-COMP (LEFT)
-
31064A31064-1099 PIPE-COMP (RIGHT)PIPE-COMP (RIGHT)
-
31064B31064-1218 PIPE-COMPPIPE-COMP
-
4106841068-1347 AXLE (LEFT)AXLE (LEFT)
-
41068A41068-1348 AXLE (RIGHT)AXLE (RIGHT)
-
4203442034-1104 COUPLINGCOUPLING
-
4900649006-1237 BOOT, DRIVE SHAFTBOOT, DRIVE SHAFT
-
5502055020-1306 GUARD, ENGINEGUARD, ENGINE
-
55020A55020-1675 GUARDGUARD
-
5926659266-1099 JOINT-BALLJOINT-BALL
-
9200992009-1528 SCREWSCREW
-
9201592015-006 NUT, 12MMNUT, 12MM
-
92015A92015-1182 NUT, 12MMNUT, 12MM
-
92015B92015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1293 WASHER, 12.3X25X3.2WASHER, 12.3X25X3.2
-
92022A92022-1538 WASHER, 12MMWASHER, 12MM
-
9202592025-1669 SHIM, 52.5X61.5X0.15SHIM, 52.5X61.5X0.15
-
92025A92025-1670 SHIM, 52.5X61.5X0.18SHIM, 52.5X61.5X0.18
-
92025B92025-1671 SHIM, 52.5X61.5X0.8SHIM, 52.5X61.5X0.8
-
92025C92025-1672 SHIM, 52.5X61.5X0.9SHIM, 52.5X61.5X0.9
-
92025D92025-1673 SHIM, 52.5X61.5X1.0SHIM, 52.5X61.5X1.0
-
92025E92025-1674 SHIM, 52.5X61.5X1.1SHIM, 52.5X61.5X1.1
-
92025F92025-1675 SHIM, 52.5X61.5X1.2SHIM, 52.5X61.5X1.2
-
92025G92025-1676 SHIM, 52.5X61.5X1.3SHIM, 52.5X61.5X1.3
-
92025H92025-1677 SHIM, 52.5X61.5X1.4SHIM, 52.5X61.5X1.4
-
92025I92025-1849 SHIM, 35.3X46X1.00SHIM, 35.3X46X1.00
-
92025J92025-1850 SHIM, 35.3X46X0.10SHIM, 35.3X46X0.10
-
92025K92025-1851 SHIM, 35.3X46X0.15SHIM, 35.3X46X0.15
-
92025L92025-1856 SHIM, 35.3X46X0.50SHIM, 35.3X46X0.50
-
92025M92025-1857 SHIM, 35.3X46X0.80SHIM, 35.3X46X0.80
-
9203392033-0006 RING-SNAP, 47MMRING-SNAP, 47MM
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204592045-1110 BEARING-BALLBEARING-BALL
-
92045A92045-1229 BEARING-BALL, 6205DDUBEARING-BALL, 6205DDU
-
9204692046-1183 BEARING-NEEDLE, NK20/16REBEARING-NEEDLE, NK20/16RE
-
9204992049-1236 SEAL-OIL, SO30428SEAL-OIL, SO30428
-
130130J0612 BOLT-FLANGEDBOLT-FLANGED
-
130A130P0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130B130P1035 BOLT-FLANGEDBOLT-FLANGED
-
183183H0814 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
220220X0614 SCREW-PAN-CROSSCREW-PAN-CROS
-
290290Q0612 SCREW-SET-SOCKETSCREW-SET-SOCKET
-
481481J5200 CIRCLIPCIRCLIP
-
555555A0422 PIN-SPRINGPIN-SPRING
-
601601B6007 BEARING-BALL, #6007C3BEARING-BALL, #6007C3
-
670670B1509 O RING, 9MMO RING, 9MM
-
670A670B2012 O RING, 12MMO RING, 12MM
-
92049A92049-1287 SEAL-OILSEAL-OIL
-
92049B92049-1310 SEAL-OIL, TC406510SEAL-OIL, TC406510
-
9205592055-1136 RING-O, 25.7X2.4RING-O, 25.7X2.4
-
92055A92055-1207 RING-ORING-O
-
92055B92055-1411 RING-O, 164.1X2.5RING-O, 164.1X2.5
-
9205992059-1968 TUBE, 4.7X9.5X1240TUBE, 4.7X9.5X1240
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1303 PLUGPLUG
-
92066A92066-1305 PLUGPLUG
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
-
9207592075-021 DAMPERDAMPER
-
9214492144-1278 SPRINGSPRING
-
9215092150-1197 BOLT, 10X22BOLT, 10X22
-
9217092170-1674 CLAMPCLAMP
-
92170A92170-1676 CLAMPCLAMP
-
9218092180-1115 SHIM, 52.5X61.5X0.10SHIM, 52.5X61.5X0.10
