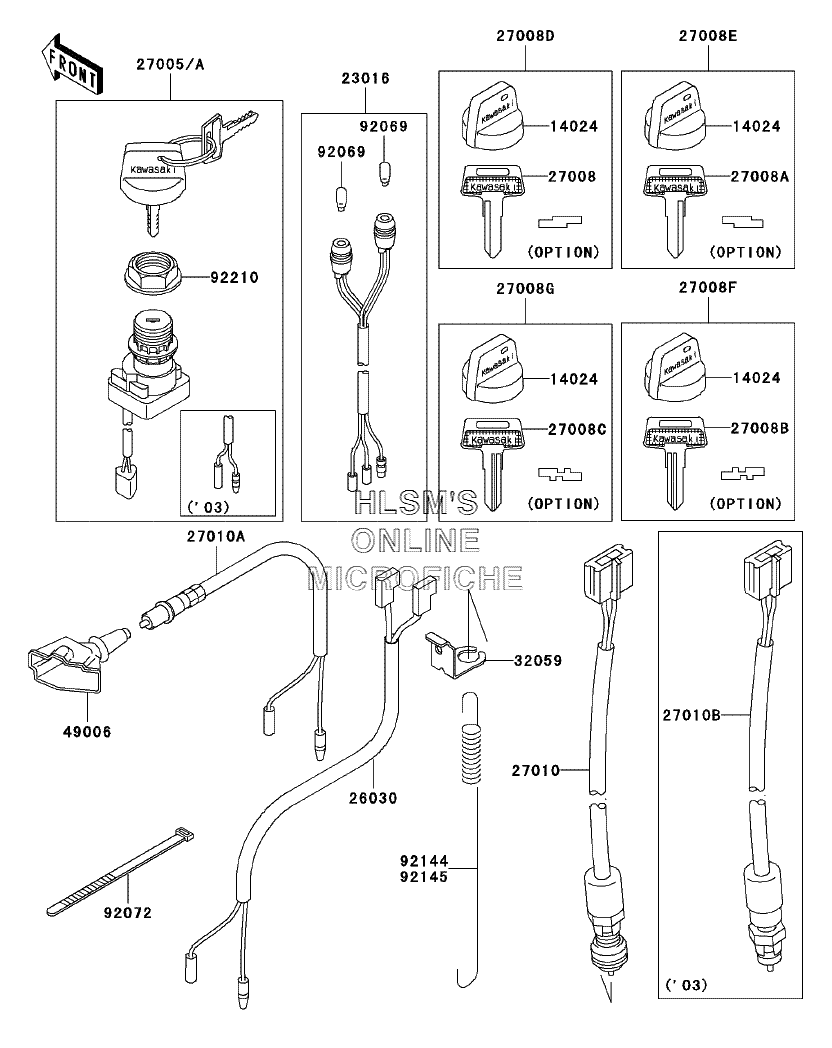

IGNITION SWITCH для Kawasaki Bayou 300 4x4 (KLF300-C16) - 2004 года выпуска
-
№АртикулНазвание
-
1402414024-1551 COVER, KEY (OPT)COVER, KEY (OPT)
-
2301623016-1083 LAMP-ASSY, NEUTRAL & REVERSELAMP-ASSY, NEUTRAL & REVERSE
-
2603026030-1058 HARNESSHARNESS
-
27005A27005-1229 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1041 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008A27008-1042 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008B27008-1043 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008C27008-1044 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008D27008-1132 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008E27008-1133 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008F27008-1134 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
27008G27008-1135 KEY-LOCK, BLANK (OPT)KEY-LOCK, BLANK (OPT)
-
2701027010-0009 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-1294 SWITCH, BRAKESWITCH, BRAKE
-
3205932059-1105 BRACKET-SWITCH, REAR BRAKEBRACKET-SWITCH, REAR BRAKE
-
4900649006-1261 BOOTBOOT
-
9206992069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
9207292072-030 BAND, L=123BAND, L=123
-
9214592145-0065 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9221092210-1109 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
