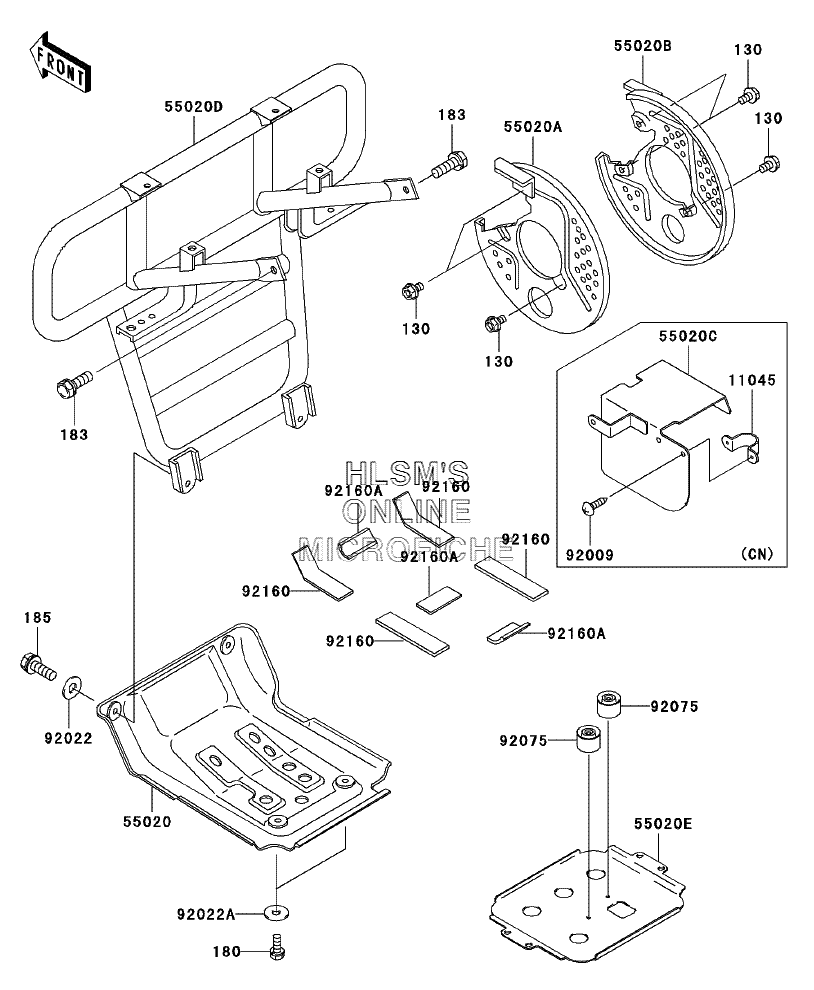

GUARD(S) для Kawasaki Bayou 300 4x4 (KLF300-C16) - 2004 года выпуска
-
№АртикулНазвание
-
130130B0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
180180J0616 BOLT-UPSET-WS, 6X16BOLT-UPSET-WS, 6X16
-
183183J0825 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
185185J0825 BOLT-UPSET-WSP-SMALL, 8X25BOLT-UPSET-WSP-SMALL, 8X25
-
1104511045-1882 BRACKET, FENDER (CANADA ONLY)BRACKET, FENDER (CANADA ONLY)
-
5502055020-1303 GUARD, FRONT DIFFGUARD, FRONT DIFF
-
55020A55020-1304 GUARD, FRONT DISC (LEFT)GUARD, FRONT DISC (LEFT)
-
55020B55020-1305 GUARD, FRONT DISC (RIGHT)GUARD, FRONT DISC (RIGHT)
-
55020C55020-1474 GUARD, SNOW (CANADA ONLY)GUARD, SNOW (CANADA ONLY)
-
55020D55020-1585-1U GUARD, FRONT (GRAY)GUARD, FRONT (GRAY)
-
55020E55020-1797 GUARD, ENGINEGUARD, ENGINE
-
9200992009-1332 SCREW, TAPPING, 5X10 (CANADA ONLY)SCREW, TAPPING, 5X10 (CANADA ONLY)
-
9202292022-1317 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
92022A92022-1346 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9207592075-1896 DAMPERDAMPER
-
9216092160-1101 DAMPERDAMPER
-
92160A92160-1102 DAMPERDAMPER
