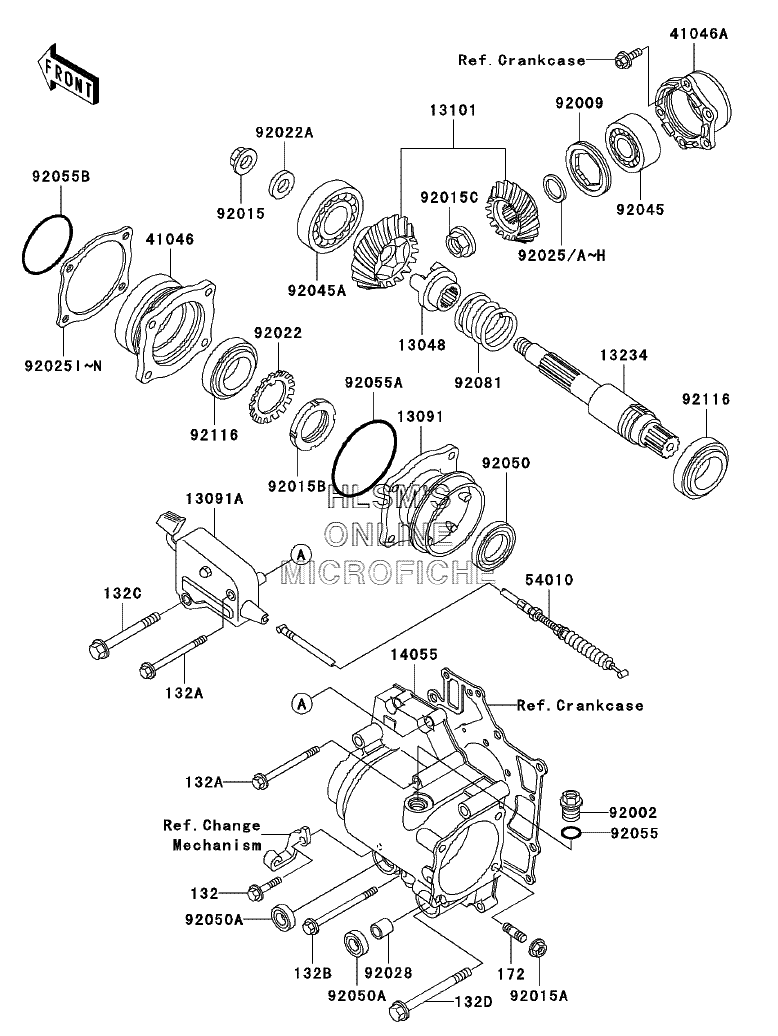

FRONT BEVEL GEAR для Kawasaki Bayou 300 (KLF300-B17) - 2004 года выпуска
-
№АртикулНазвание
-
1304813048-1059 CAM-DAMPER (FRONT)CAM-DAMPER (FRONT)
-
1309113091-1377 HOLDER, GEAR CASE (FRONT)HOLDER, GEAR CASE (FRONT)
-
13091A13091-1410 HOLDER, DIFF LOCKHOLDER, DIFF LOCK
-
1310113101-5079 GEAR-ASSY, FRONT BEVELGEAR-ASSY, FRONT BEVEL
-
1323413234-1085 SHAFT-COMP, GEAR CASE (FRONT)SHAFT-COMP, GEAR CASE (FRONT)
-
1405514055-1135 CASE-GEARCASE-GEAR
-
4104641046-1066 HOUSING-BEARING, GEAR CASE (FRONT)HOUSING-BEARING, GEAR CASE (FRONT)
-
41046A41046-1098 HOUSING-BEARING, GEAR CASE (FRONT)HOUSING-BEARING, GEAR CASE (FRONT)
-
5401054010-1069 CABLECABLE
-
9200292002-1238 BOLT, 16X10BOLT, 16X10
-
9200992009-1384 SCREW, 55MMSCREW, 55MM
-
9201592015-1341 NUT, FLANGED, 14MMNUT, FLANGED, 14MM
-
92015A92015-1402 NUT, 8MMNUT, 8MM
-
92015B92015-1515 NUT, RING 35MMNUT, RING 35MM
-
92015C92015-1581 NUT, 16MMNUT, 16MM
-
9202292022-1687 WASHER, LOCKWASHER, LOCK
-
92022A92022-1688 WASHER, 14.2X28X2.6WASHER, 14.2X28X2.6
-
9202592025-1533 SHIM, 20.3X28X1.3SHIM, 20.3X28X1.3
-
92025A92025-1534 SHIM, 20.3X28X0.7SHIM, 20.3X28X0.7
-
92025B92025-1535 SHIM, 20.3X28X0.8SHIM, 20.3X28X0.8
-
92025C92025-1536 SHIM, 20.3X28X0.9SHIM, 20.3X28X0.9
-
92025D92025-1537 SHIM, 20.3X28X1.0SHIM, 20.3X28X1.0
-
92025E92025-1538 SHIM, 20.3X28X1.2SHIM, 20.3X28X1.2
-
92025F92025-1573 SHIM, 20.3X28X0.15SHIM, 20.3X28X0.15
-
92025G92025-1574 SHIM, 20.3X28X0.20SHIM, 20.3X28X0.20
-
92025H92025-1575 SHIM, 20.3X28X1.1SHIM, 20.3X28X1.1
-
92025I92025-1697 SHIM, T=0.10SHIM, T=0.10
-
92025J92025-1698 SHIM, T=0.15SHIM, T=0.15
-
92025K92025-1699 SHIM, T=0.50SHIM, T=0.50
-
92025L92025-1700 SHIM, T=0.80SHIM, T=0.80
-
92025M92025-1701 SHIM, T=1.00SHIM, T=1.00
-
92025N92025-1702 SHIM, T=1.20SHIM, T=1.20
-
9202892028-1347 BUSHINGBUSHING
-
9204592045-1144 BEARING-BALL, 5304BEARING-BALL, 5304
-
92045A92045-1155 BEARING-BALL, 6206CMBEARING-BALL, 6206CM
-
9205092050-057 SEAL-OILSEAL-OIL
-
92050A92050-082 SEAL-OILSEAL-OIL
-
9205592055-1141 RING-O, ID=13.8RING-O, ID=13.8
-
92055A92055-1213 RING-O, 76MMRING-O, 76MM
-
92055B92055-1316 RING-ORING-O
-
132132J0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132J0675 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132J0685 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132C132J0875 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132D132J0890 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
172172G0825 BOLT-STUD, 8X25BOLT-STUD, 8X25
-
9208192081-1854 SPRING, DAMPERSPRING, DAMPER
-
9211692116-1055 BEARING-ROLLERBEARING-ROLLER
