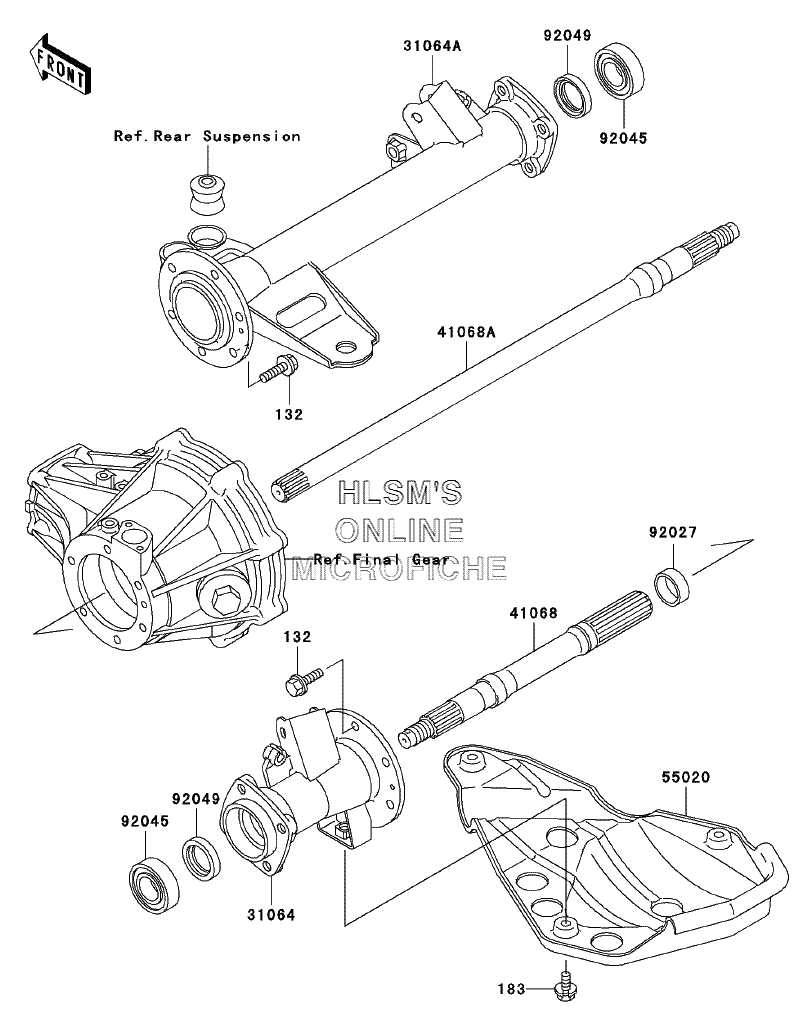

REAR AXLE для Kawasaki Bayou 300 (KLF300-B17) - 2004 года выпуска
-
№АртикулНазвание
-
132132J0825 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
183183H0814 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
3106431064-1091 PIPE-COMP (LEFT)PIPE-COMP (LEFT)
-
31064A31064-1101 PIPE-COMP (RIGHT)PIPE-COMP (RIGHT)
-
4106841068-1247 AXLE (LEFT)AXLE (LEFT)
-
41068A41068-1248 AXLE (RIGHT)AXLE (RIGHT)
-
5502055020-1203 GUARD, DIFFERENTIAL CASEGUARD, DIFFERENTIAL CASE
-
9202792027-1892 COLLAR, 23X30X12COLLAR, 23X30X12
-
9204592045-1229 BEARING-BALL, 6205DDUBEARING-BALL, 6205DDU
-
9204992049-1236 SEAL-OIL, SO30428SEAL-OIL, SO30428
