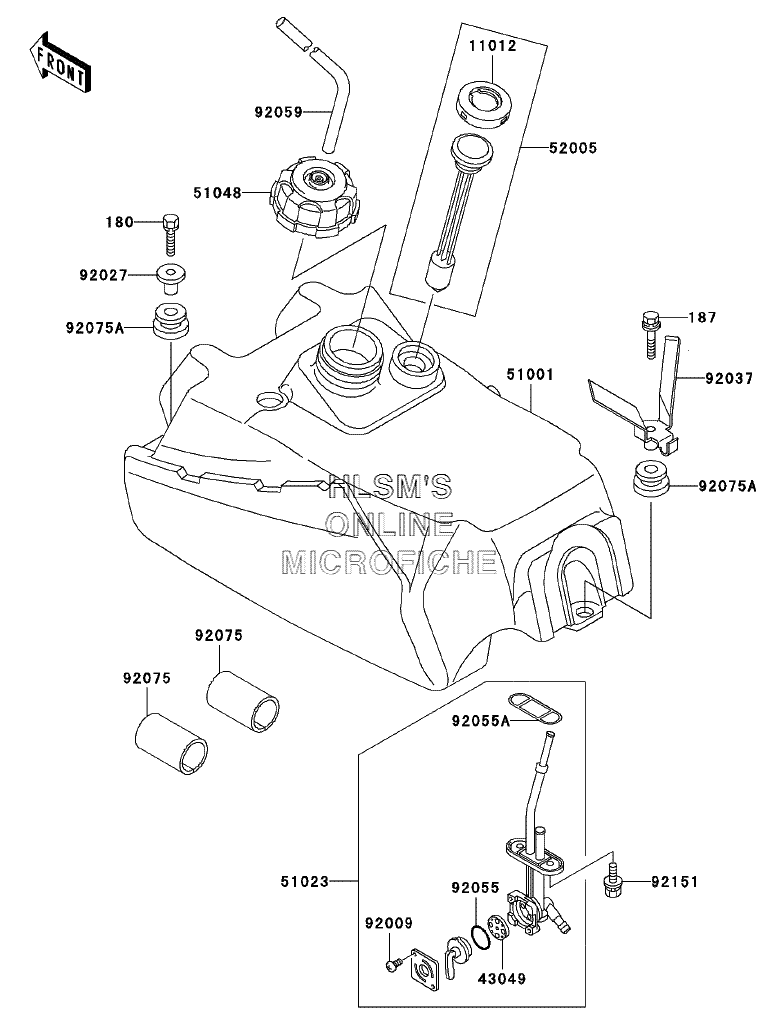

FUEL TANK для Kawasaki Bayou 300 (KLF300-B17) - 2004 года выпуска
-
№АртикулНазвание
-
180180D0625 BOLT-UPSET-WS, 6X25BOLT-UPSET-WS, 6X25
-
187187D0630 BOLT-UPSET-WSPBOLT-UPSET-WSP
-
1101211012-1627 CAP, FUEL GAUGECAP, FUEL GAUGE
-
4304943049-1102 PACKING, VALVEPACKING, VALVE
-
5100151001-1278 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-1356 TAP-ASSY, FUELTAP-ASSY, FUEL
-
5104851048-1135 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
5200552005-1122 GAUGE, FUELGAUGE, FUEL
-
9200992009-1123 SCREW, 3X5SCREW, 3X5
-
9202792027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9203792037-1982 CLAMP, HOSECLAMP, HOSE
-
9205592055-1111 RING-O, FUEL TAP LEVERRING-O, FUEL TAP LEVER
-
92055A92055-1348 RING-O, FUEL TAP PACKINGRING-O, FUEL TAP PACKING
-
9205992059-1890 TUBE, 5X9X470TUBE, 5X9X470
-
9207592075-1369 DAMPER, FUEL TANK (FRONT/UNDER)DAMPER, FUEL TANK (FRONT/UNDER)
-
92075A92075-1787 DAMPERDAMPER
-
9215192151-1198 BOLT, 6X14BOLT, 6X14
