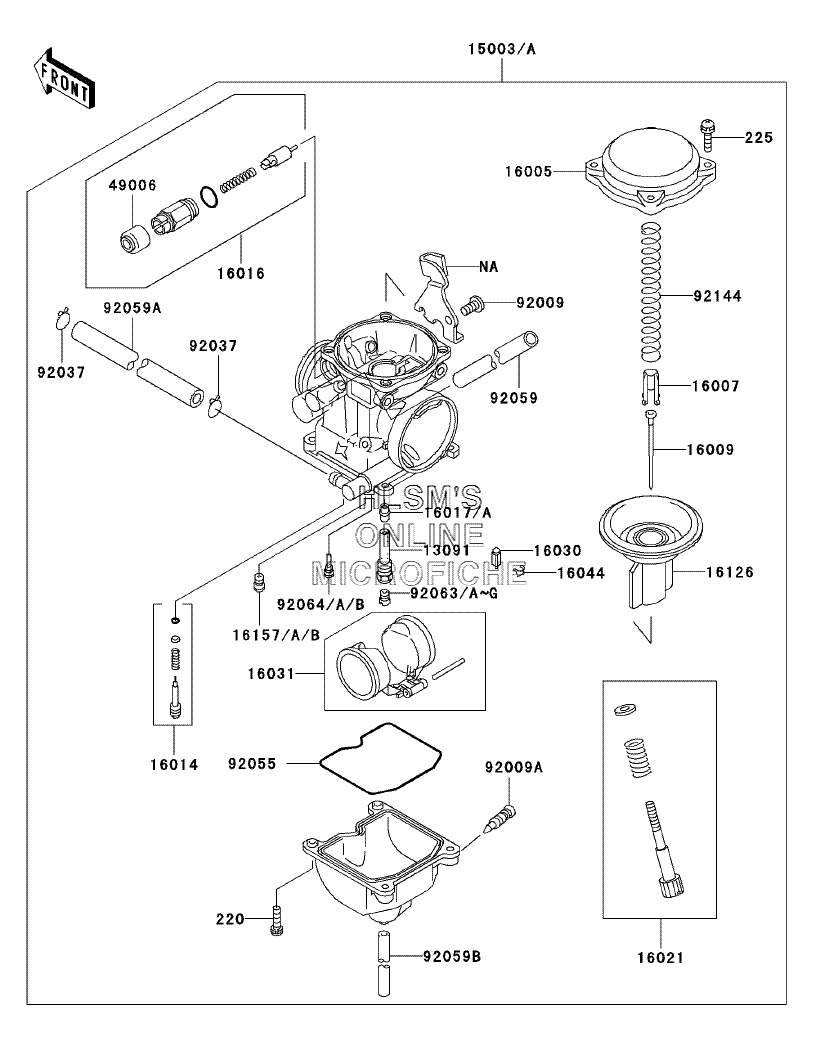

CARBURETOR для Kawasaki KFX250 Mojave (KSF250-A18) - 2004 года выпуска
-
№АртикулНазвание
-
1309113091-1259 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1500315003-1747 CARBURETOR-ASSY (EXCEPT CALIF)CARBURETOR-ASSY (EXCEPT CALIF)
-
15003A15003-1748 CARBURETOR-ASSY (CALIF. ONLY)CARBURETOR-ASSY (CALIF. ONLY)
-
1600516005-1057 TOP-CHAMBER, MIXING, 27/60TOP-CHAMBER, MIXING, 27/60
-
1600716007-1134 SEAT-SPRING, VALVESEAT-SPRING, VALVE
-
1600916009-1333 NEEDLE-JET, N54CNEEDLE-JET, N54C
-
1601416014-1080 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1101 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1319 JET-NEEDLE (EXCEPT CALIF)JET-NEEDLE (EXCEPT CALIF)
-
16017A16017-1393 JET-NEEDLE, #6 (CALIF. ONLY)JET-NEEDLE, #6 (CALIF. ONLY)
-
1602116021-1201 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-1007 VALVE-FLOATVALVE-FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1180 VALVE, VACUUMVALVE, VACUUM
-
1615716157-1056 JET-STARTER, #55JET-STARTER, #55
-
16157A16157-1057 JET-STARTER, #58 (OPT)JET-STARTER, #58 (OPT)
-
16157B16157-1058 JET-STARTER, #60 (OPT)JET-STARTER, #60 (OPT)
-
4900649006-1165 BOOT, STARTER PLUNGER (EXCEPT CALIF)BOOT, STARTER PLUNGER (EXCEPT CALIF)
-
9200992009-1365 SCREW, 5X10SCREW, 5X10
-
92009A92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9203792037-1531 CLAMP, TUBECLAMP, TUBE
-
9205592055-1222 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
9205992059-1465 TUBE, 6.5X9.5X500TUBE, 6.5X9.5X500
-
92059A92059-1751 TUBE, 6.5X11.5X360TUBE, 6.5X11.5X360
-
92059B92059-1752 TUBE, 3.5X6.5X300TUBE, 3.5X6.5X300
-
9206392063-1013 JET-MAIN, #140 (CALIF. ONLY)JET-MAIN, #140 (CALIF. ONLY)
-
92063A92063-1014 JET-MAIN, #135 (OPT)JET-MAIN, #135 (OPT)
-
92063B92063-1015 JET-MAIN, #138 (OPT)JET-MAIN, #138 (OPT)
-
92063C92063-1016 JET-MAIN, #142 (CALIF. ONLY) (OPT)JET-MAIN, #142 (CALIF. ONLY) (OPT)
-
220220D0414 SCREW-PAN-CROSSCREW-PAN-CROS
-
225225C0418 SCREW-PAN-WSP-CROSSCREW-PAN-WSP-CROS
-
92063D92063-1017 JET-MAIN, #145 (CALIF. ONLY) (OPT)JET-MAIN, #145 (CALIF. ONLY) (OPT)
-
92063E92063-1074 JET-MAIN, #128 (EXCEPT CALIF) (OPT)JET-MAIN, #128 (EXCEPT CALIF) (OPT)
-
92063F92063-1075 JET-MAIN, #130 (EXCEPT CALIF) (OPT)JET-MAIN, #130 (EXCEPT CALIF) (OPT)
-
92063G92063-1076 JET-MAIN, #132 (EXCEPT CALIF)JET-MAIN, #132 (EXCEPT CALIF)
-
9206492064-1050 JET-PILOT, #38 (OPT)JET-PILOT, #38 (OPT)
-
92064A92064-1101 JET-PILOT, #35 (STD)JET-PILOT, #35 (STD)
-
92064B92064-1117 JET-PILOT, #32 (OPT)JET-PILOT, #32 (OPT)
-
9214492144-1066 SPRING, VACUUM VALVESPRING, VACUUM VALVE
