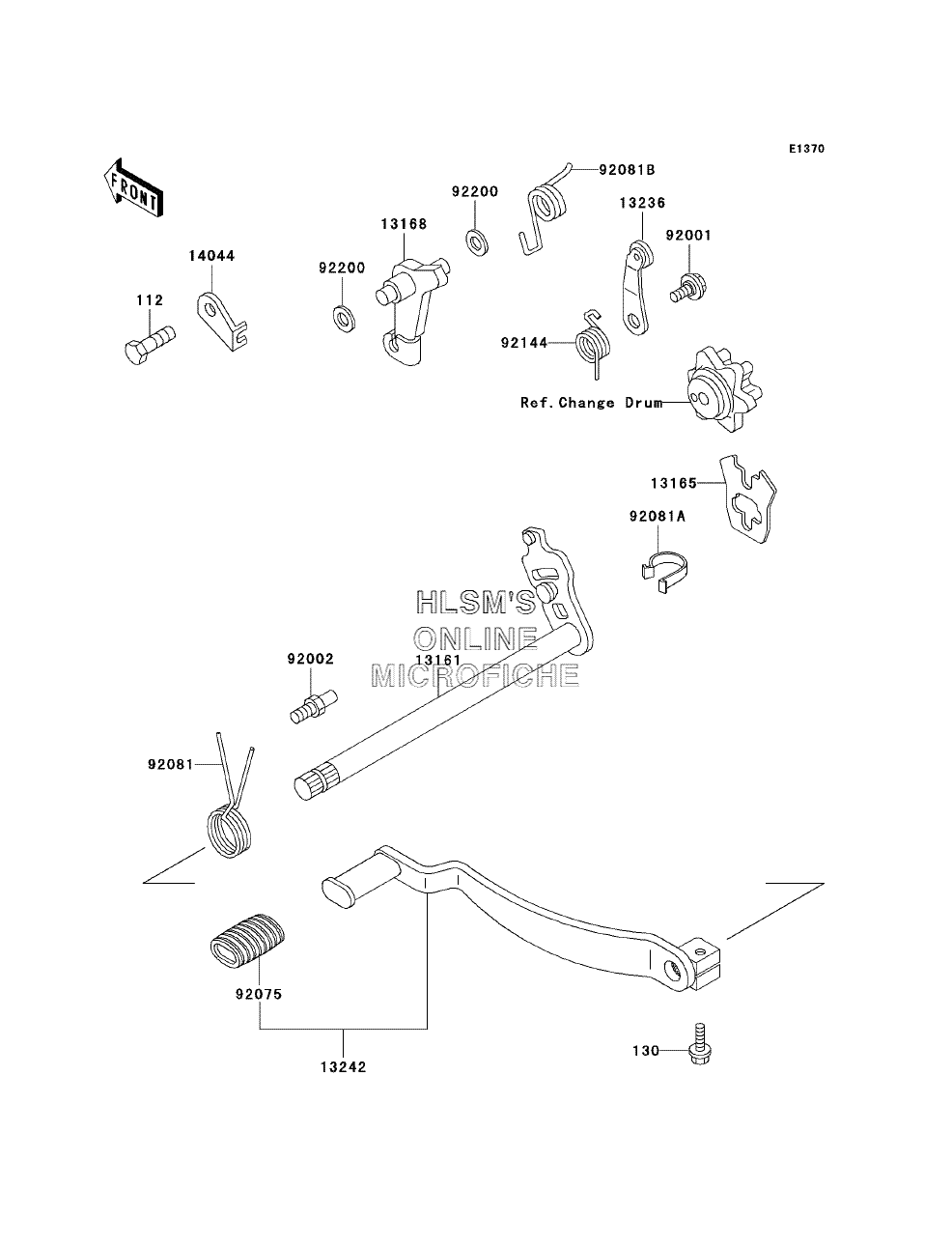

GEAR CHANGE MECHANISM для Kawasaki KFX250 Mojave (KSF250-A18) - 2004 года выпуска
-
№АртикулНазвание
-
112112B0512 BOLT-UPSETBOLT-UPSET
-
130130S0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
1316113161-1293 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-1034 PAWL, CHANGE LEVERPAWL, CHANGE LEVER
-
1316813168-1344 LEVER, REVERSELEVER, REVERSE
-
1323613236-1117 LEVER-COMP, CHANGE DRUMLEVER-COMP, CHANGE DRUM
-
1324213242-1223 LEVER-ASSY-CHANGE PEDALLEVER-ASSY-CHANGE PEDAL
-
1404414044-1072 HOLDER-CABLEHOLDER-CABLE
-
9200192001-1715 BOLT, GEAR CHANGE LEVERBOLT, GEAR CHANGE LEVER
-
9200292002-1355 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9207592075-1585 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9208192081-1750 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
92081A92081-1829 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
92081B92081-1998 SPRING, REVERSE LOCKSPRING, REVERSE LOCK
-
9214492144-1077 SPRING, POSITION LEVERSPRING, POSITION LEVER
-
9220092200-1039 WASHER, 8X13X0.5WASHER, 8X13X0.5
