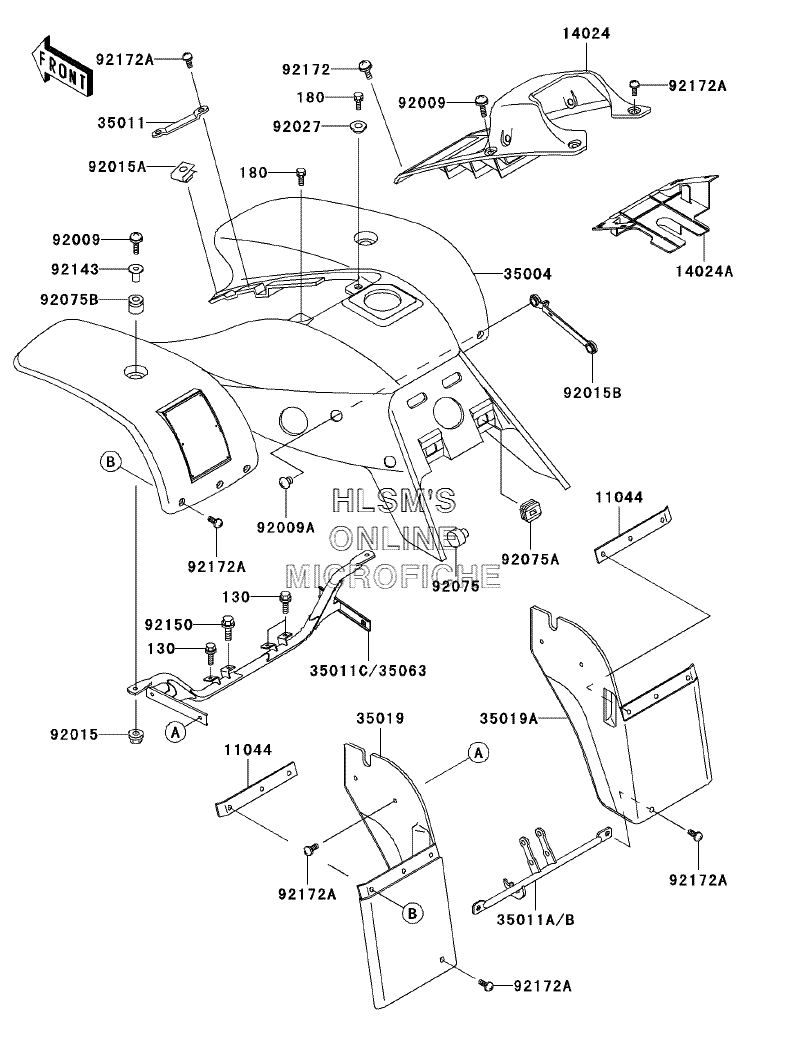

FENDER - FRONT для Kawasaki KFX250 Mojave (KSF250-A18) - 2004 года выпуска
-
№АртикулНазвание
-
130130P0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
180180D0635 BOLT-UPSET-WS, 6X35BOLT-UPSET-WS, 6X35
-
1104411044-1934 BRACKET, FLAPBRACKET, FLAP
-
1402414024-1268-6D COVER, FRONT FENDER (BLACK)COVER, FRONT FENDER (BLACK)
-
14024A14024-1297 COVER, FRONT FENDER (INNER)COVER, FRONT FENDER (INNER)
-
3500435004-1379-6W FENDER-FRONT (GREEN)FENDER-FRONT (GREEN)
-
3501135011-1324 STAY, FRONT FENDERSTAY, FRONT FENDER
-
35011B35011-1637-HN STAY, FLAP (GRAY)STAY, FLAP (GRAY)
-
3501935019-1172 FLAP (LEFT)FLAP (LEFT)
-
35019A35019-1173 FLAP (RIGHT)FLAP (RIGHT)
-
3506335063-1169 STAY, FRONT FENDERSTAY, FRONT FENDER
-
9200992009-1256 SCREW, 6X22 (BLACK)SCREW, 6X22 (BLACK)
-
92009A92009-1508 SCREW, 16MMSCREW, 16MM
-
9201592015-1233 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
92015B92015-1701 NUTNUT
-
9202792027-1933 COLLAR, L=5.6COLLAR, L=5.6
-
9207592075-023 DAMPER, DUAL SEATDAMPER, DUAL SEAT
-
92075A92075-1834 DAMPERDAMPER
-
92075B92075-222 DAMPER, CASEDAMPER, CASE
-
9214392143-1016 COLLAR, L=9.6COLLAR, L=9.6
-
9215092150-1358 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
-
92172A92172-0004 SCREW, 6X14SCREW, 6X14
