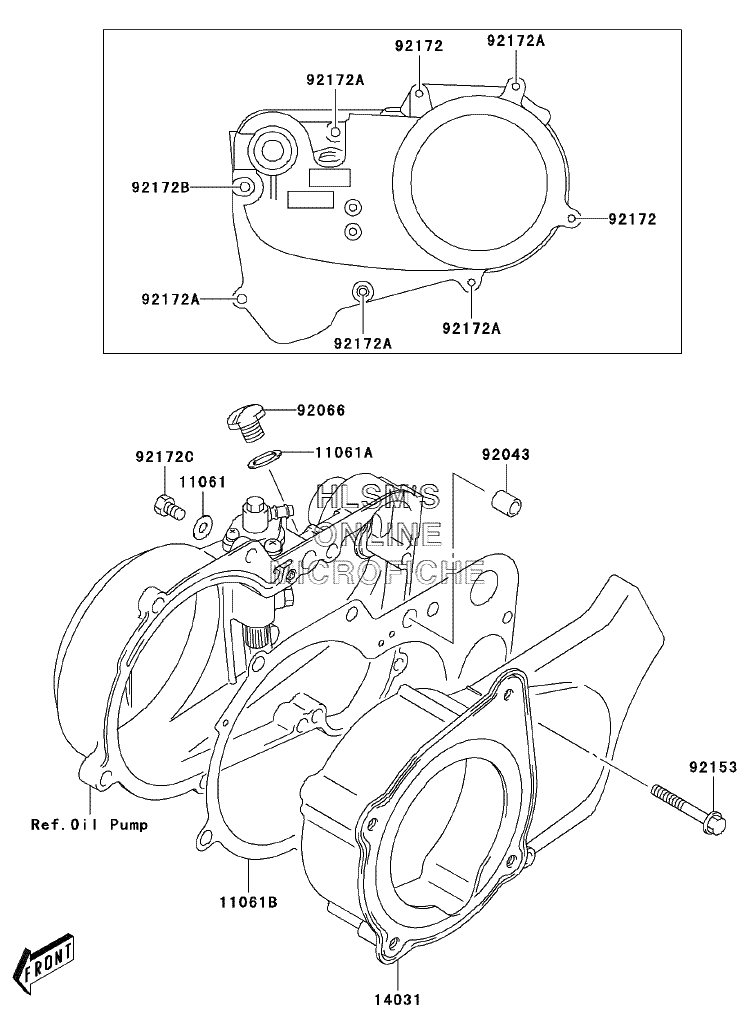

ENGINE COVER(S) для Kawasaki KFX50 (KSF50-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S045 GASKET, OIL HOSEGASKET, OIL HOSE
-
11061A11061-S046 GASKET, OIL FILLER PLUGGASKET, OIL FILLER PLUG
-
11061B11061-S047 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1403114031-S005 COVER-GENERATORCOVER-GENERATOR
-
9204392043-S026 PIN, CLUTCH COVERPIN, CLUTCH COVER
-
9206692066-S021 PLUG, OIL FILLERPLUG, OIL FILLER
-
9215392153-S004 BOLTBOLT
-
9217292172-S090 SCREWSCREW
-
92172A92172-S117 SCREW, CRANKCASESCREW, CRANKCASE
-
92172B92172-S122 SCREW, CLUTCH COVERSCREW, CLUTCH COVER
-
92172C92172-S123 SCREW, OIL LEVELSCREW, OIL LEVEL
