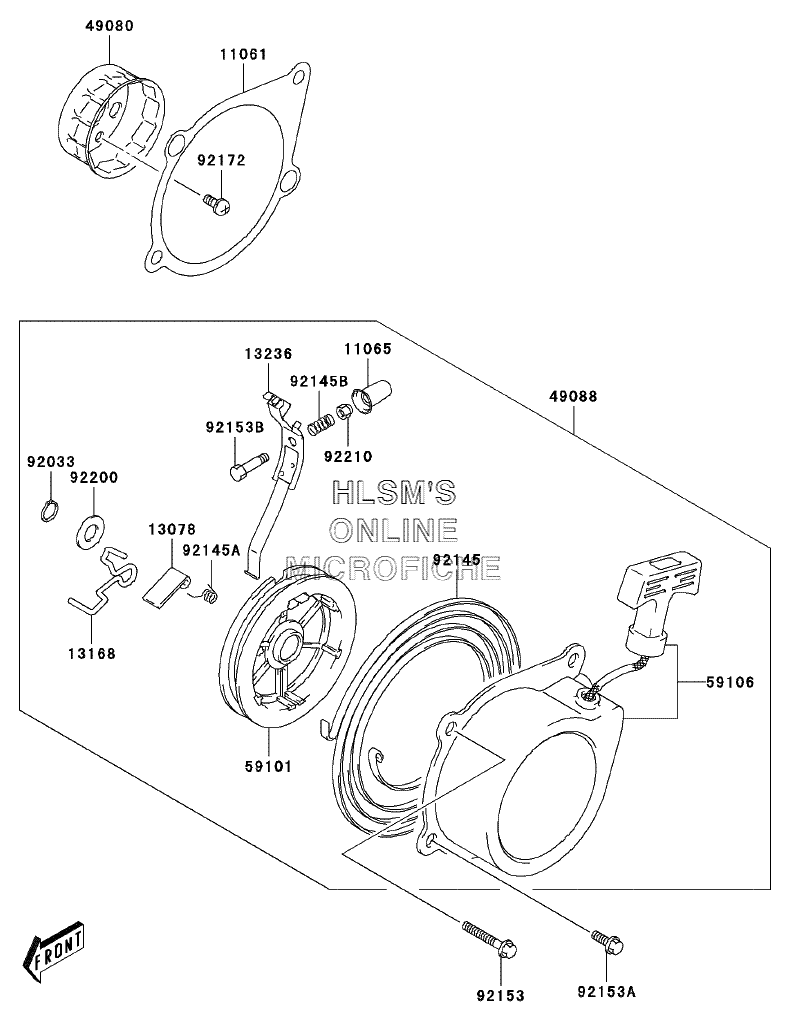

STARTER - RECOIL для Kawasaki KFX50 (KSF50-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1106111061-S050 GASKET, RECOIL STARTERGASKET, RECOIL STARTER
-
1106511065-S023 CAPCAP
-
1307813078-S002 RATCHETRATCHET
-
1316813168-S003 LEVERLEVER
-
1323613236-S003 LEVER-COMPLEVER-COMP
-
4908049080-S001 PULLEY-STARTINGPULLEY-STARTING
-
4908849088-S004 STARTER-RECOILSTARTER-RECOIL
-
5910159101-S003 REELREEL
-
5910659106-S001 ROPEROPE
-
9203392033-S001 RING-SNAPRING-SNAP
-
9214592145-S069 SPRINGSPRING
-
92145A92145-S070 SPRING, RETURNSPRING, RETURN
-
92145B92145-S071 SPRINGSPRING
-
9215392153-S006 BOLTBOLT
-
92153A92153-S193 BOLT, RECOIL STARTERBOLT, RECOIL STARTER
-
92153B92153-S209 BOLTBOLT
-
9217292172-S128 SCREW, STARTERSCREW, STARTER
-
9220092200-S103 WASHERWASHER
-
9221092210-S077 NUTNUT
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- ENGINE COVER(S)
- FENDERS
- FRAME
- FRONT HUB
- FUEL FILTER
- FUEL TANK
- GASKET KIT
- GENERATOR
- HANDLE LEVER
- HANDLEBAR
- IGNITION SYSTEM
- KNUCKLE ARM
- LABELS
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OIL TANK
- PUBLICATIONS
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- • STARTER - RECOIL
- STEERING SHAFT
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TRANSMISSION
