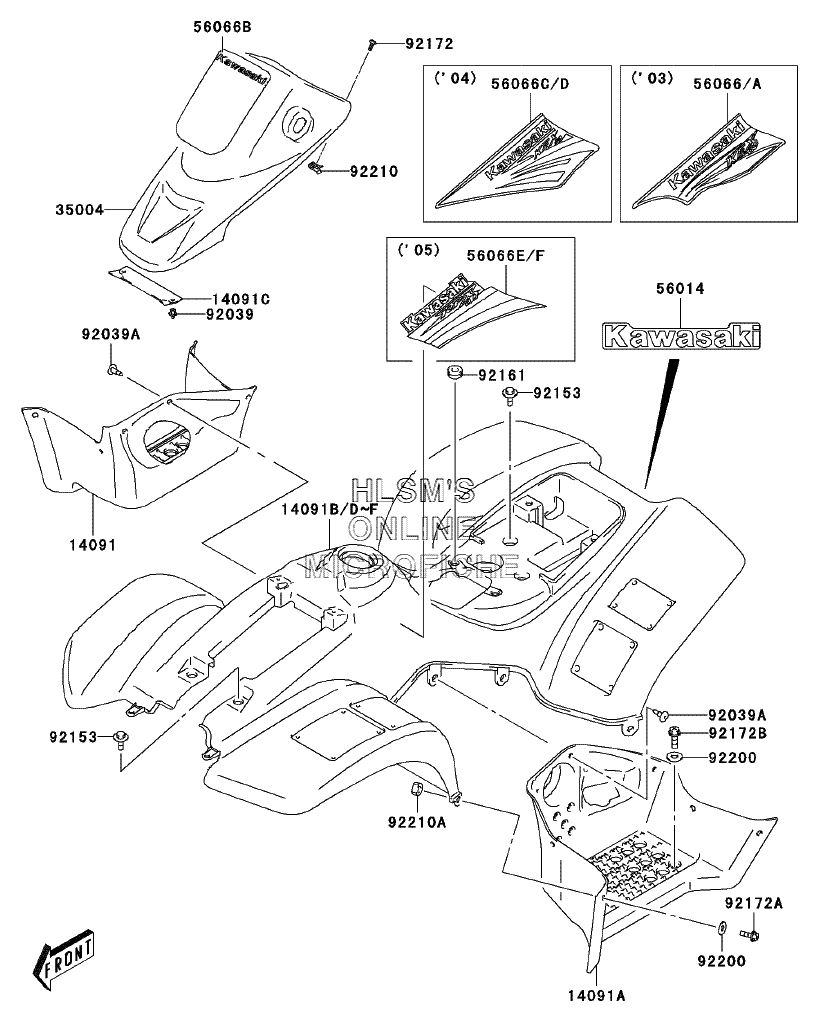

FENDERS для Kawasaki KFX50 (KSF50-A2) - 2004 года выпуска
-
№АртикулНазвание
-
1409114091-S067-504 COVER, FRAME (RIGHT/BLACK)COVER, FRAME (RIGHT/BLACK)
-
14091A14091-S068-504 COVER, FRAME (LEFT/BLACK)COVER, FRAME (LEFT/BLACK)
-
14091B14091-S069-535 COVER, FRAME CENTER (LEFT/GREEN) (US ONLY)COVER, FRAME CENTER (LEFT/GREEN) (US ONLY)
-
14091C14091-S070-504 COVER, FRONT FENDER (BLACK)COVER, FRONT FENDER (BLACK)
-
14091D14091-S078-535 COVER, FRAME CENTER (LEFT/GREEN) (CANADA ONLY)COVER, FRAME CENTER (LEFT/GREEN) (CANADA ONLY)
-
3500435004-S007-504 FENDER, FRONT (BLACK)FENDER, FRONT (BLACK)
-
5601456014-S012-554 EMBLEM (BLACK/GREEN)EMBLEM (BLACK/GREEN)
-
56066B56066-S003-558 PATTERN (WHITE/BLACK)PATTERN (WHITE/BLACK)
-
56066C56066-S019-553 PATTERN (RIGHT/WHITE/GLOD/BLACK/GREEN)PATTERN (RIGHT/WHITE/GLOD/BLACK/GREEN)
-
56066D56066-S020-553 PATTERN (LEFT/WHITE/GLOD/BLACK/GREEN)PATTERN (LEFT/WHITE/GLOD/BLACK/GREEN)
-
9203992039-S003-505 RIVET (BLACK)RIVET (BLACK)
-
92039A92039-S005-506 RIVET (BLACK)RIVET (BLACK)
-
9215392153-S196 BOLTBOLT
-
9216192161-S069 DAMPER, FRAME COVERDAMPER, FRAME COVER
-
9217292172-S018 SCREWSCREW
-
92172A92172-S019 SCREWSCREW
-
92172B92172-S022 SCREWSCREW
-
9220092200-S005 WASHERWASHER
-
9221092210-S023 NUT, COWLNUT, COWL
-
92210A92210-S054 NUTNUT
