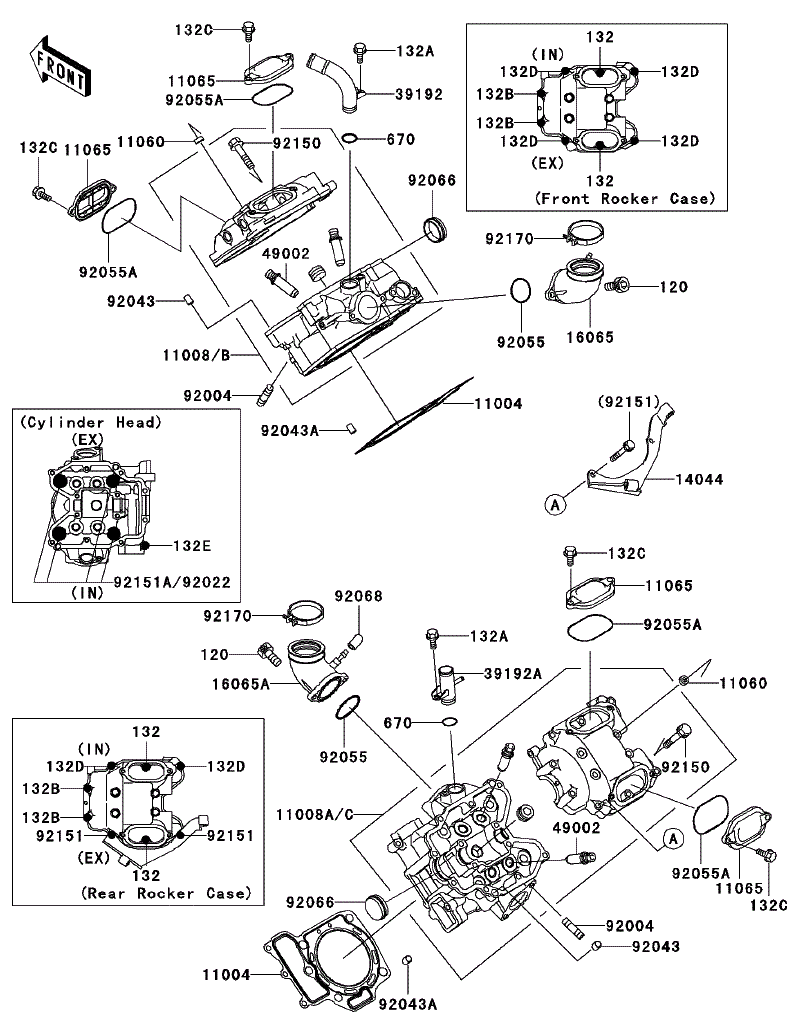

CYLINDER HEAD для Kawasaki KFX700 (KSV700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
120120Z0620 BOLT-SOCKETBOLT-SOCKET
-
132132H0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
132A132Y0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132Y06130 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132C132Y0620 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132D132Y0630 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132E132Y0695 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
670670B2016 O RING,16MMO RING,16MM
-
1100411004-1384 GASKET-HEADGASKET-HEAD
-
1100811008-0016 HEAD-COMP-CYLINDER,FRHEAD-COMP-CYLINDER,FR
-
11008A11008-0017 HEAD-COMP-CYLINDER,RRHEAD-COMP-CYLINDER,RR
-
1106011060-1994 GASKET,6.2X12X0.3GASKET,6.2X12X0.3
-
1106511065-1152 CAP,ROCKER CASECAP,ROCKER CASE
-
1404414044-0001 HOLDER-CABLEHOLDER-CABLE
-
1606516065-1370 HOLDER-CARBURETORHOLDER-CARBURETOR
-
16065A16065-1371 HOLDER-CARBURETOR,RRHOLDER-CARBURETOR,RR
-
3919239192-1132 PIPE-WATERPIPE-WATER
-
39192A39192-1133 PIPE-WATERPIPE-WATER
-
4900249002-1097 GUIDE-VALVEGUIDE-VALVE
-
9200492004-1217 STUD,8X22STUD,8X22
-
9202292022-1720 WASHER,11.5X20.5X1.6WASHER,11.5X20.5X1.6
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
92043A92043-4009 PIN,10.1X12X14PIN,10.1X12X14
-
9205592055-1295 RING-O,38MMRING-O,38MM
-
92055A92055-1644 RING-O,55.6X2.4RING-O,55.6X2.4
-
9206692066-1289 PLUGPLUG
-
9206892068-006 PLUG,12X25PLUG,12X25
-
9215092150-1302 BOLT,6X55BOLT,6X55
-
9215192151-1209 BOLT,FLANGED,6X34BOLT,FLANGED,6X34
-
92151A92151-1917 BOLTBOLT
-
9217092170-1722 CLAMPCLAMP
