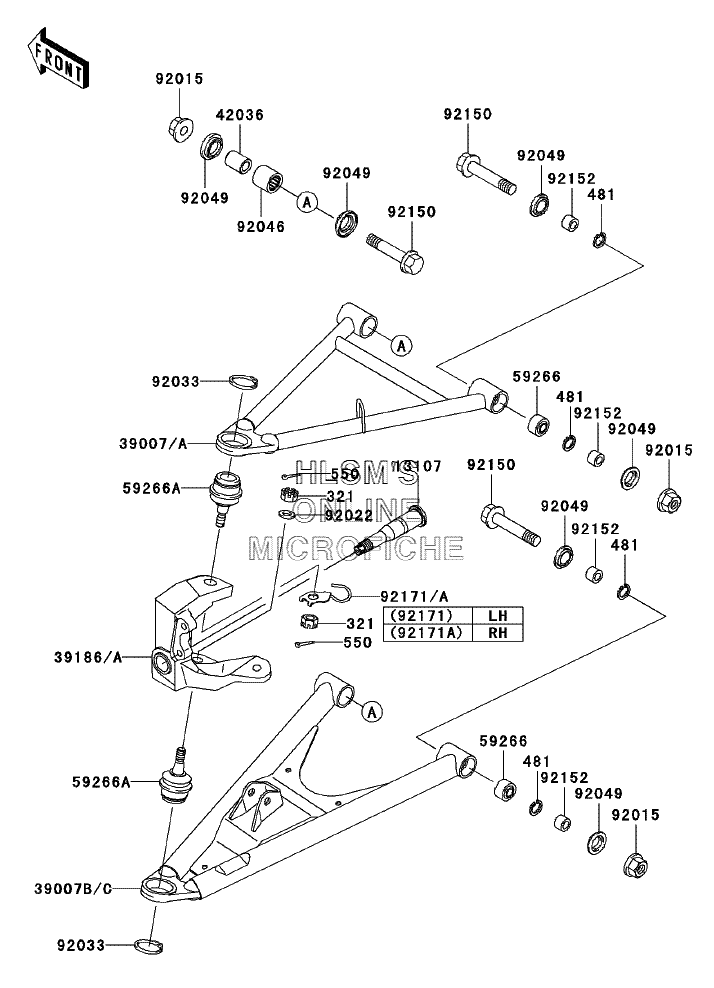

SUSPENSION для Kawasaki KFX700 (KSV700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
321321H1200 NUT-CASTLE,12MMNUT-CASTLE,12MM
-
481481J2400 CIRCLIPCIRCLIP
-
550550D3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
1310713107-1507 SHAFT,KNUCKLESHAFT,KNUCKLE
-
3900739007-1307-HN ARM-SUSP,LH,UPP,G.GRAYARM-SUSP,LH,UPP,G.GRAY
-
39007A39007-1309-HN ARM-SUSP,RH,UPP,G.GRAYARM-SUSP,RH,UPP,G.GRAY
-
39007B39007-1311-HN ARM-SUSP,LH,LWR,G.GRAYARM-SUSP,LH,LWR,G.GRAY
-
39007C39007-1312-HN ARM-SUSP,RH,LWR,G.GRAYARM-SUSP,RH,LWR,G.GRAY
-
3918639186-0003 KNUCKLE,LHKNUCKLE,LH
-
39186A39186-0004 KNUCKLE,RHKNUCKLE,RH
-
4203642036-1376 SLEEVESLEEVE
-
5926659266-1011 JOINT-BALLJOINT-BALL
-
59266A59266-1139 JOINT-BALLJOINT-BALL
-
9201592015-1428 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
9202292022-1065 WASHER,12.3X22X1.6WASHER,12.3X22X1.6
-
9203392033-1262 RING-SNAP,C-TYPE,32MMRING-SNAP,C-TYPE,32MM
-
9204692046-1046 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-1223 SEAL-OIL,MHA17245.7FSEAL-OIL,MHA17245.7F
-
9215092150-1384 BOLT,FLANGED,10X63BOLT,FLANGED,10X63
-
9215292152-1455 COLLAR,10X17X14.5COLLAR,10X17X14.5
-
9217192171-0094 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
92171A92171-0095 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
