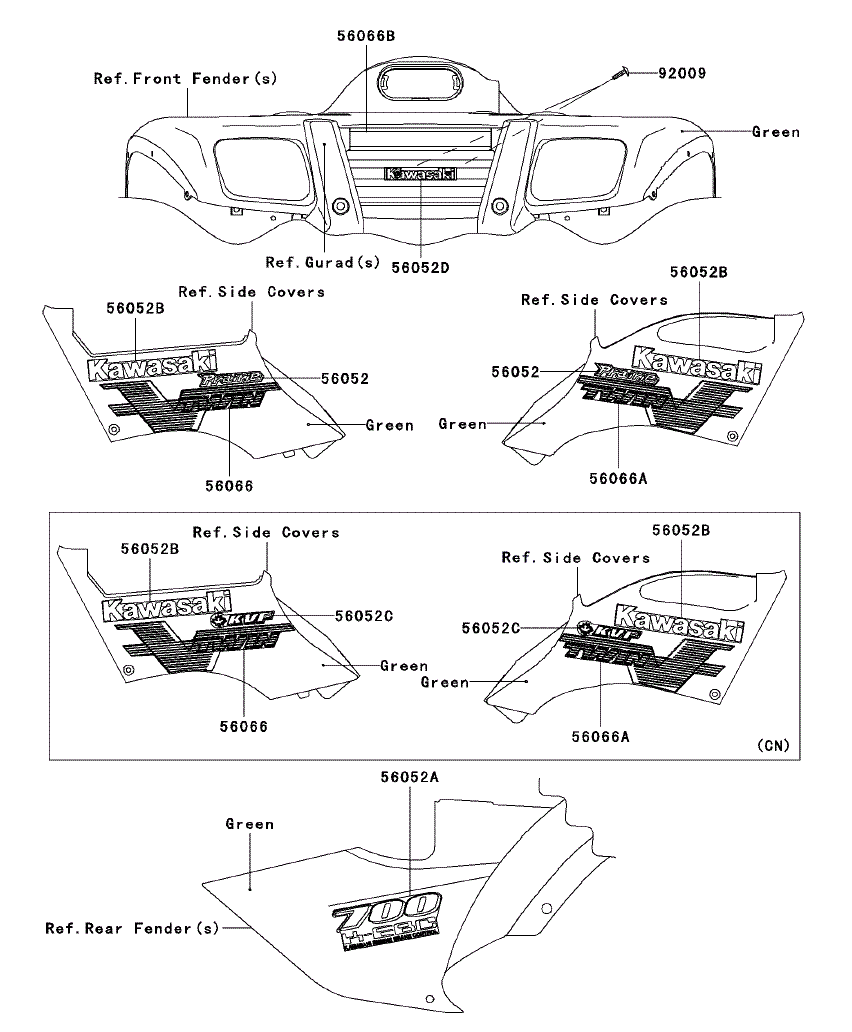

DECALS (GREEN) для Kawasaki Prairie 700 4x4 (KVF700-A1) - 2004 года выпуска
-
№АртикулНазвание
-
5605256052-0115 MARK,FR FENDER,PRAIRIE (USA ONLY)MARK,FR FENDER,PRAIRIE (USA ONLY)
-
56052A56052-0122 MARK,RR FENDER,700 K-EBCMARK,RR FENDER,700 K-EBC
-
56052B56052-0144 MARK,SIDE COVER,KAWASAKIMARK,SIDE COVER,KAWASAKI
-
56052C56052-0188 MARK,FUEL TANK COVER,KVF (CANADA ONLY)MARK,FUEL TANK COVER,KVF (CANADA ONLY)
-
56052D56052-1201 MARK,FR FENDER,KAWASAKIMARK,FR FENDER,KAWASAKI
-
5606656066-0300 PATTERN,FUEL TANK COVER,LHPATTERN,FUEL TANK COVER,LH
-
56066A56066-0301 PATTERN,FUEL TANK COVER,RHPATTERN,FUEL TANK COVER,RH
-
56066B56066-0499 PATTERN,FRONT GUARDPATTERN,FRONT GUARD
-
9200992009-1444 SCREW,TAPPING,4X12SCREW,TAPPING,4X12
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S)/TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CONTROL
- CONVERTER COVER
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER/PISTON(S)
- • DECALS (GREEN)
- DECALS (RED)
- DRIVE CONVERTER
- DRIVE SHAFT- FRONT
- DRIVE SHAFT- PROPELLER
- DRIVE SHAFT- REAR
- DRIVEN CONVERTER W/ DRIVE BELT
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT BEVEL GEAR
- FRONT HUB
- FUEL TANK
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S)
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH
- IGNITION SYSTEM
- LABELS
- METER(S)
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS (DRIVE CONVERTER)
- OPTIONAL PARTS (GUARD)
- OWNER'S TOOLS
- PUBLICATIONS
- RADIATOR (JKAVF6A1 4B504674 AND ABOVE)
- RADIATOR (UP TO JKAVF6A1 4B504673)
- REAR HUB
- REFLECTORS (CANADA)
- SEAT
- SIDE COVERS
- STARTER - RECOIL
- STARTER MOTOR
- SUSPENSION
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TRANSMISSION
- VALVE(S)
- WHEELS/TIRES
