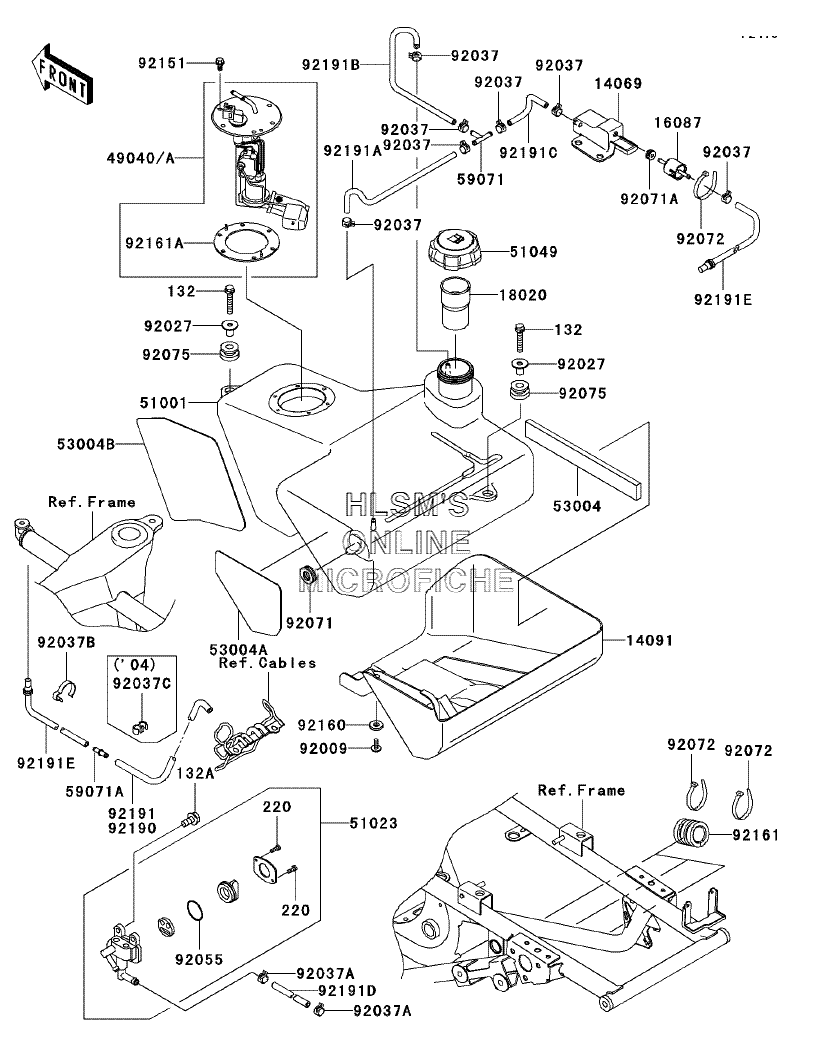

FUEL TANK для Kawasaki Prairie 700 4x4 (KVF700-A1) - 2004 года выпуска
-
№АртикулНазвание
-
132132G0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132A132J0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
220220B0308 SCREW-PAN-CROS,3X8SCREW-PAN-CROS,3X8
-
1406914069-1069 BREATHER,TANKBREATHER,TANK
-
1409114091-1404 COVER,FUEL TANKCOVER,FUEL TANK
-
1608716087-1054 VALVE-CHECKVALVE-CHECK
-
1802018020-1278 BAFFLE,FUEL TANK CAPBAFFLE,FUEL TANK CAP
-
49040A49040-1076 PUMP-FUELPUMP-FUEL
-
5100151001-1638 TANK-COMP-FUELTANK-COMP-FUEL
-
5102351023-0002 TAP-ASSY,FUELTAP-ASSY,FUEL
-
5104951049-1128 CAP-TANK,FUELCAP-TANK,FUEL
-
5300453004-1161 MAT,FUEL TANK COVERMAT,FUEL TANK COVER
-
53004A53004-1164 MAT,FUEL TANKMAT,FUEL TANK
-
53004B53004-1165 MAT,FUEL TANKMAT,FUEL TANK
-
5907159071-3705 JOINTJOINT
-
59071A59071-3717 JOINTJOINT
-
9200992009-1480 SCREW,6X12SCREW,6X12
-
9202792027-1847 COLLAR,L=16.1COLLAR,L=16.1
-
9203792037-1461 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1505 CLAMP,TUBECLAMP,TUBE
-
92037B92037-1552 CLAMP,HOSECLAMP,HOSE
-
92037C92037-1603 CLAMP,HOSECLAMP,HOSE
-
9205592055-0017 RING-ORING-O
-
9207192071-1249 GROMMET,AIR SUCTION VALVEGROMMET,AIR SUCTION VALVE
-
92071A92071-1266 GROMMETGROMMET
-
9207292072-1239 BAND,L=188BAND,L=188
-
9207592075-1787 DAMPERDAMPER
-
9215192151-1754 BOLT,FLANGED,5X11.5BOLT,FLANGED,5X11.5
-
9216092160-1017 DAMPERDAMPER
-
9216192161-1111 DAMPER,FUEL TANK,RRDAMPER,FUEL TANK,RR
-
92161A92161-1272 DAMPER,FUEL PUMPDAMPER,FUEL PUMP
-
9219192191-1384 TUBE,CANISTER-SEPARATOR,BLUETUBE,CANISTER-SEPARATOR,BLUE
-
92191A92191-1639 TUBE,TANK-FRONTTUBE,TANK-FRONT
-
92191B92191-1640 TUBE,TANK-REARTUBE,TANK-REAR
-
92191C92191-1641 TUBE,5X9X160TUBE,5X9X160
-
92191D92191-1665 TUBE,5.3X10.5X425TUBE,5.3X10.5X425
-
92191E92191-1666 TUBE,TANK BREATHERTUBE,TANK BREATHER
