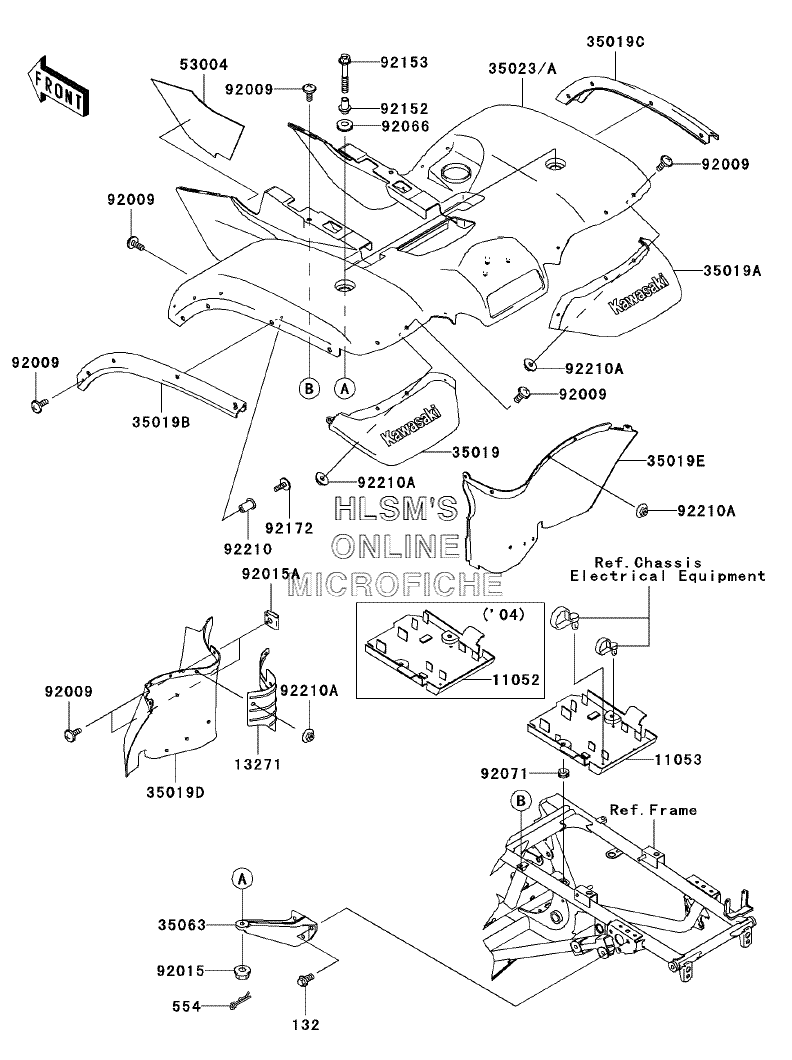

FENDER - REAR для Kawasaki Prairie 700 4x4 (KVF700-A1) - 2004 года выпуска
-
№АртикулНазвание
-
132132J0818 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
554554A0800 PIN-SNAP,8MMPIN-SNAP,8MM
-
1105211052-1847 BRACKET,ELCTRICBRACKET,ELCTRIC
-
1327113271-1718 PLATE,HEAT GUARDPLATE,HEAT GUARD
-
3501935019-1371-6Z FLAP,RR,RR,LH,F.BLACKFLAP,RR,RR,LH,F.BLACK
-
35019A35019-1372-6Z FLAP,RR,RR,RH,F.BLACKFLAP,RR,RR,RH,F.BLACK
-
35019B35019-1373-6Z FLAP,RR,SIDE,LH,F.BLACKFLAP,RR,SIDE,LH,F.BLACK
-
35019C35019-1374-6Z FLAP,RR,SIDE,RH,F.BLACKFLAP,RR,SIDE,RH,F.BLACK
-
35019D35019-1393-6Z FLAP,RR,FR,LH,F.BLACKFLAP,RR,FR,LH,F.BLACK
-
35019E35019-1394-6Z FLAP,RR,FR,RH,F.BLACKFLAP,RR,FR,RH,F.BLACK
-
3502335023-1565-260 FENDER-REAR,A.REDFENDER-REAR,A.RED
-
35023A35023-1565-6A FENDER-REAR,H.GREENFENDER-REAR,H.GREEN
-
3506335063-1100 STAY,RR FENDERSTAY,RR FENDER
-
5300453004-1170 MAT,RR FENDERMAT,RR FENDER
-
9200992009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1397 NUT,LOCK,FLANGED,8MMNUT,LOCK,FLANGED,8MM
-
92015A92015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9206692066-1438 PLUGPLUG
-
9207192071-1131 GROMMETGROMMET
-
9215292152-0098 COLLAR,L=38.5COLLAR,L=38.5
-
9215392153-0326 BOLT,FLANGED,8X68BOLT,FLANGED,8X68
-
9217292172-1063 SCREW,5X18SCREW,5X18
-
9221092210-0012 NUT,POP,5MMNUT,POP,5MM
-
92210A92210-1368 NUT,6MMNUT,6MM
